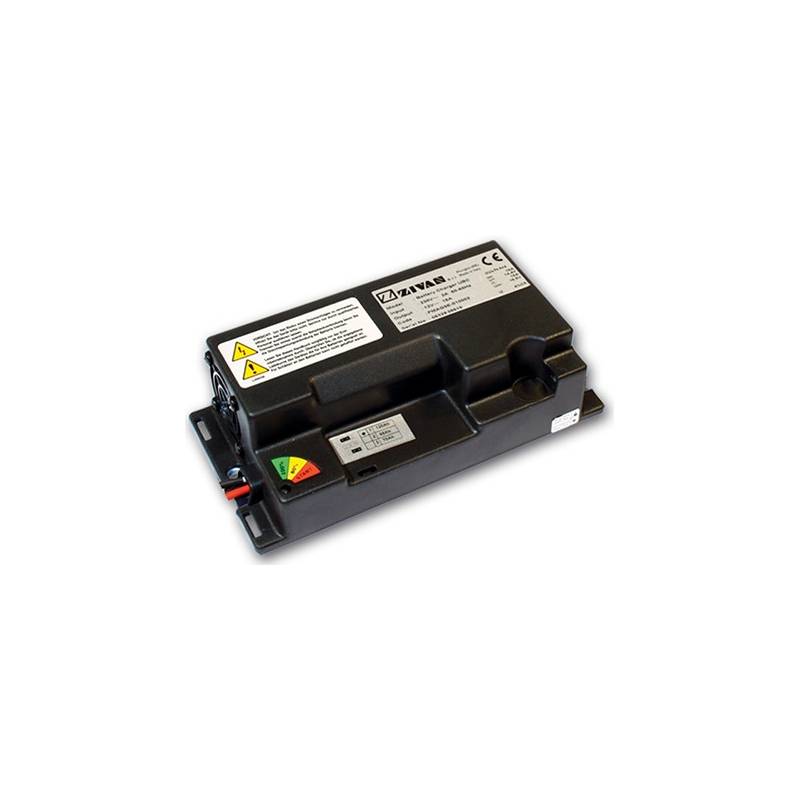

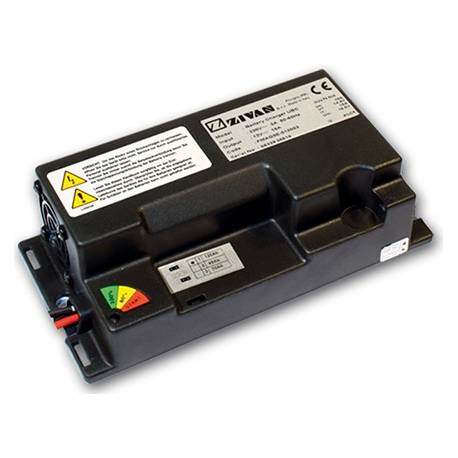

ZIVAN UBC 12V 18A Lead battery charger

410-029

New product

241,92 € Tax excluded

Livraison : 3 à 6 semaines
  • Input voltage: 115VAC/230VAC - 50Hz/60Hz
  • Output voltage: 12V
  • Output charging current: 18A
  • Efficiency: > 85 %
  • Operating temperature: from –20 to + 50 °C
  • Output short-circuit protection (fuse)
  • Case: Metal base, cover in self-extinguishable ABS

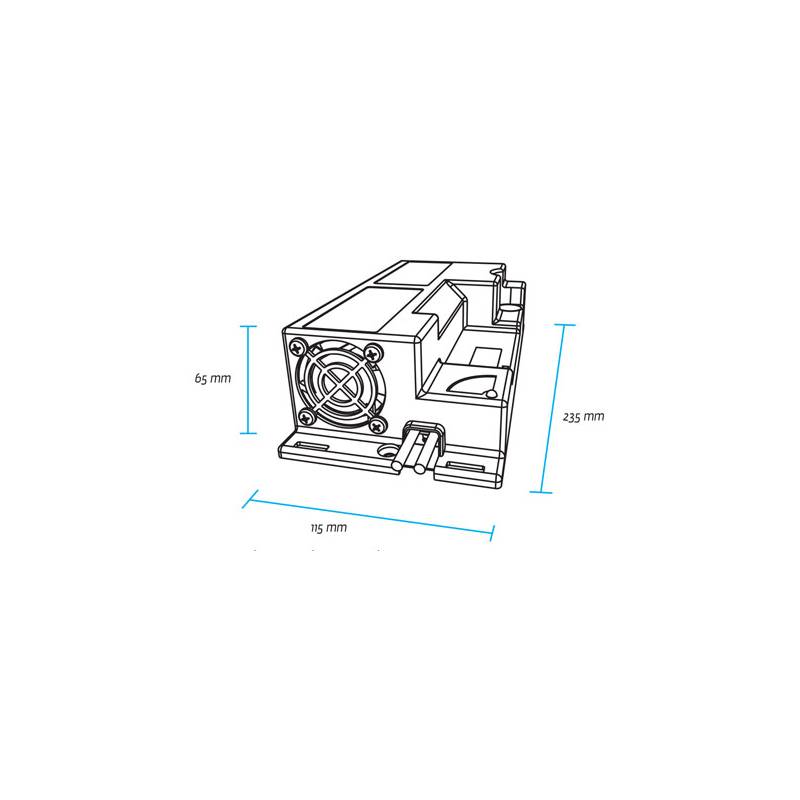

  • Size: 235 x 115 x 65 mm
  • Weight: 0,9 kg
  • Enclosure class: IP20
  • Use for lead AGM/Gel or lead acid battery
  • Conformity with Directive 73/23/EEC and EMC 89/336/EEC

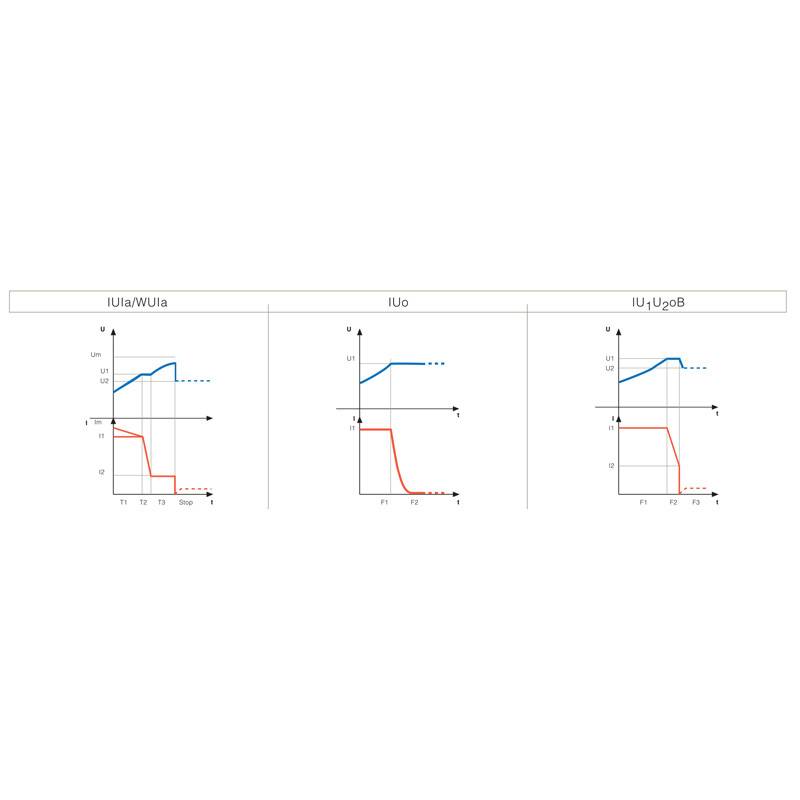

The Single-phase battery charger ZIVAN UBC 12V 18A is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed in order to change the charging features and to adapt them to every kind of battery. The reduced size of this model allows both installation on a wall, and vehicle on-board. Consequently the battery can be recharged from any available outlet, without driving the machine to a specific charging area.

Zivan ref : FMAG9E-01000Q*

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

ZIVAN UBC 12V 18A Lead battery charger

ZIVAN UBC 12V 18A Lead battery charger

  • Input voltage: 115VAC/230VAC - 50Hz/60Hz
  • Output voltage: 12V
  • Output charging current: 18A
  • Efficiency: > 85 %
  • Operating temperature: from –20 to + 50 °C
  • Output short-circuit protection (fuse)
  • Case: Metal base, cover in self-extinguishable ABS
  • Size: 235 x 115 x 65 mm
  • Weight: 0,9 kg
  • Enclosure class: IP20
  • Use for lead AGM/Gel or lead acid battery
  • Conformity with Directive 73/23/EEC and EMC 89/336/EEC
