Motenergy motor, ME1004 PMDC, Air cooling

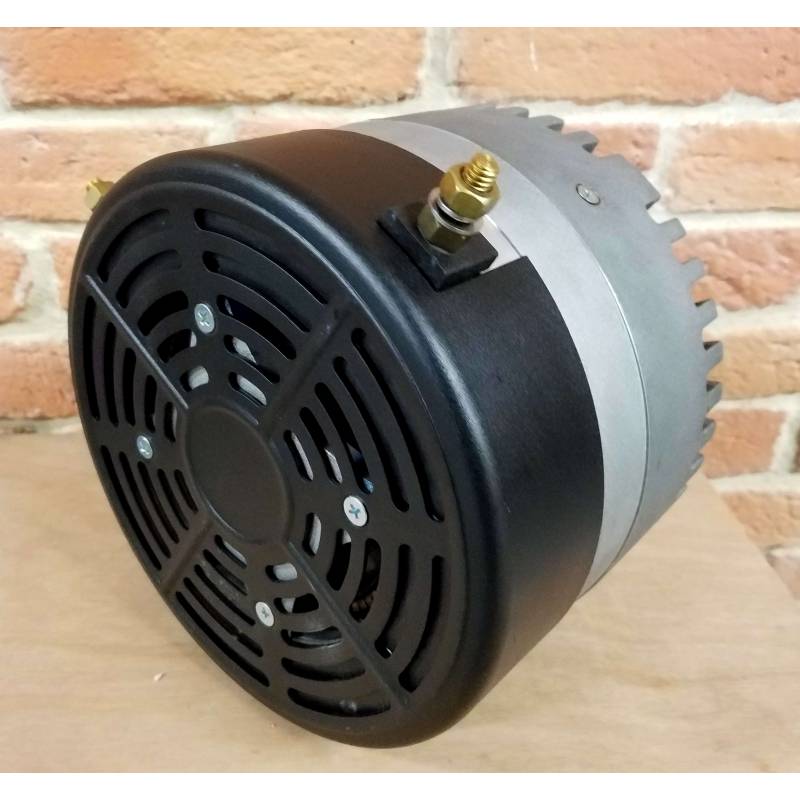

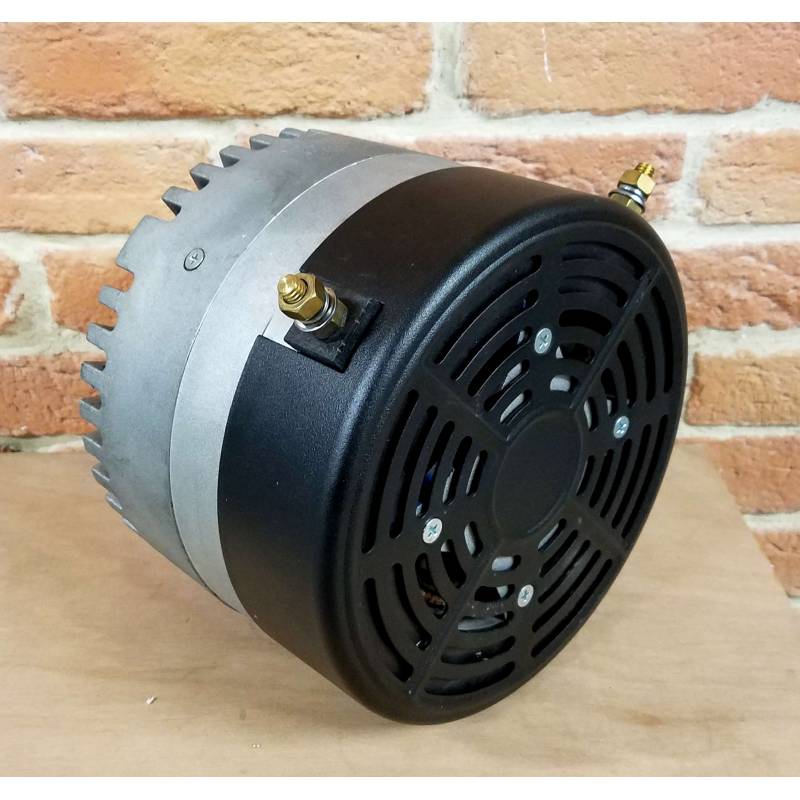

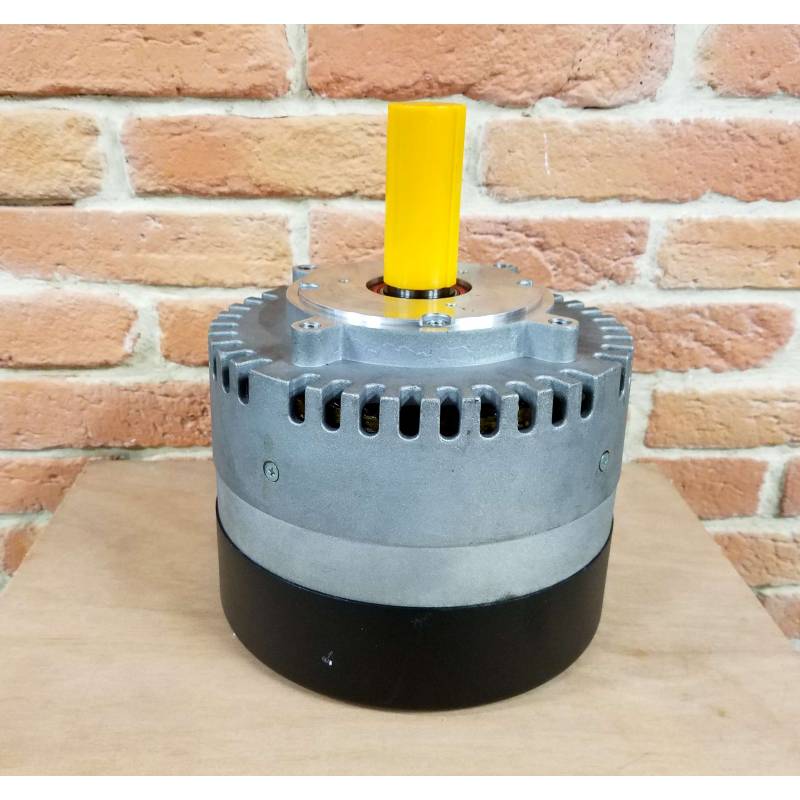

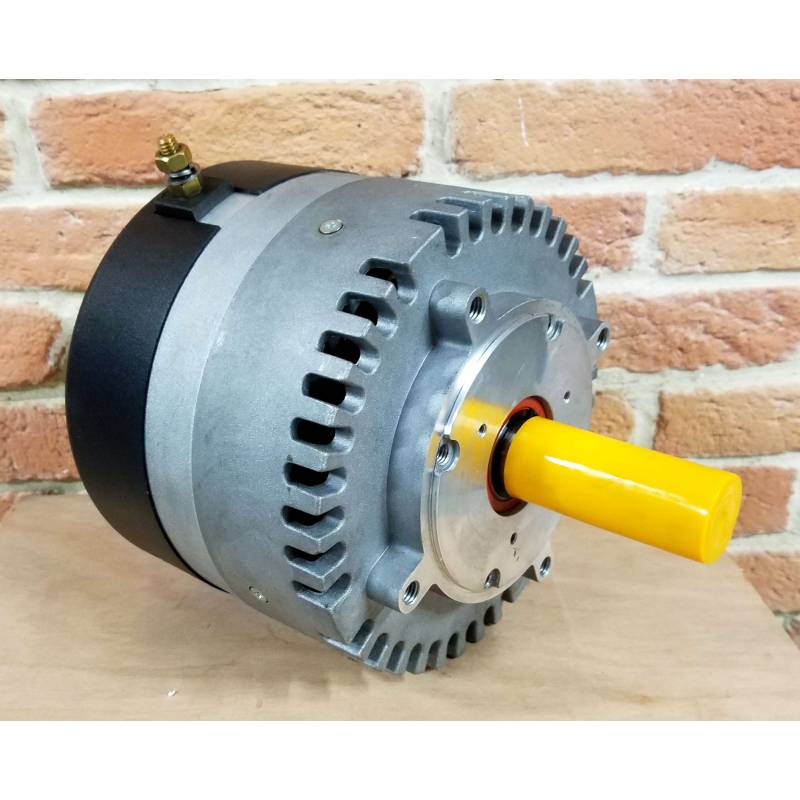

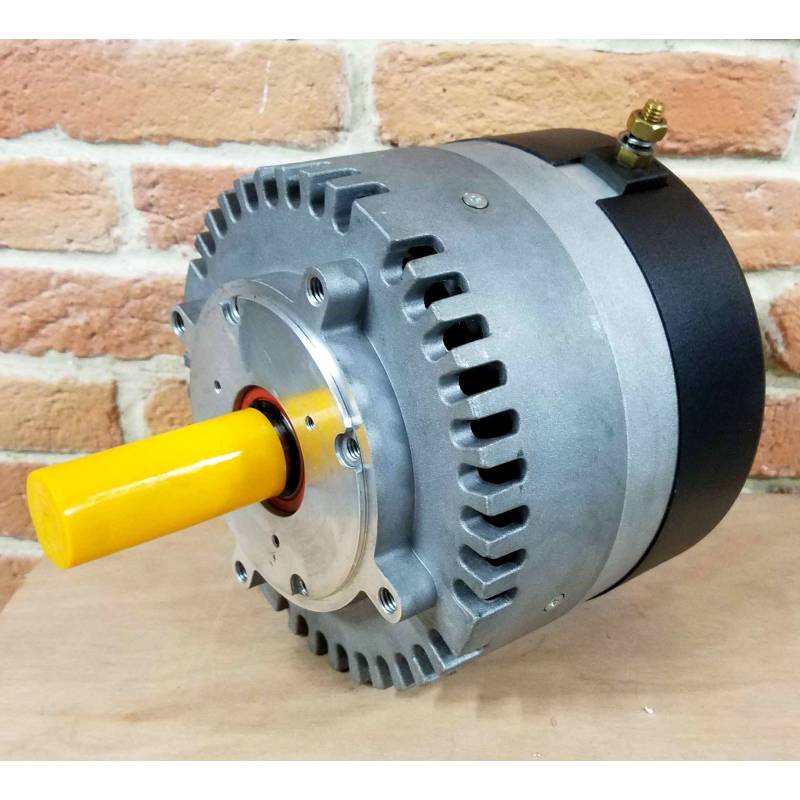

Motenergy ME1004 PMDC electric motor
Brush-Type motor.
Permanent Magnet Direct Current motor
Efficiency 90% at 48 VDC.
Rotation speed 64 RPM per Volt
Rotation speed 770 RPM  at 12VDC.
Rotation speed 3100 RPM at 48VDC.
Controller input voltage 12 à 48 VDC.
Constant torque at 0.125 Nm/Amp.
Rated power 9,6kW, peak 20kW (28hp).
Rated current 200A continuous
Rated torque 25Nm at 200A.
Max. DC current 400A during 30sec.
Max. torque 50Nm at 400A.
No temperature sensor
Output motor shaft 1"
Shaft key 6,35"
Recommended power cable 50mm² with 8mm lugs
Regen current in brake mode 8A per Nm
Brushes life about 1500 hours
Weight 15,0 Kg
Dimensions : Diam. 200mm x 164mm

Application

ME1004 motor with a 1" (2.54cm diameter) motor shaft is the ideal choice for most Honda and Briggs & Stratton (B&S) motor-driven mowers and hedge mowers, making this ME1004 ideal to convert your tractors and mowers self-powered in electric. No speed controller is needed, just a power line contactor and a fuse between the ME1004 motor and batteries 48VDC.
