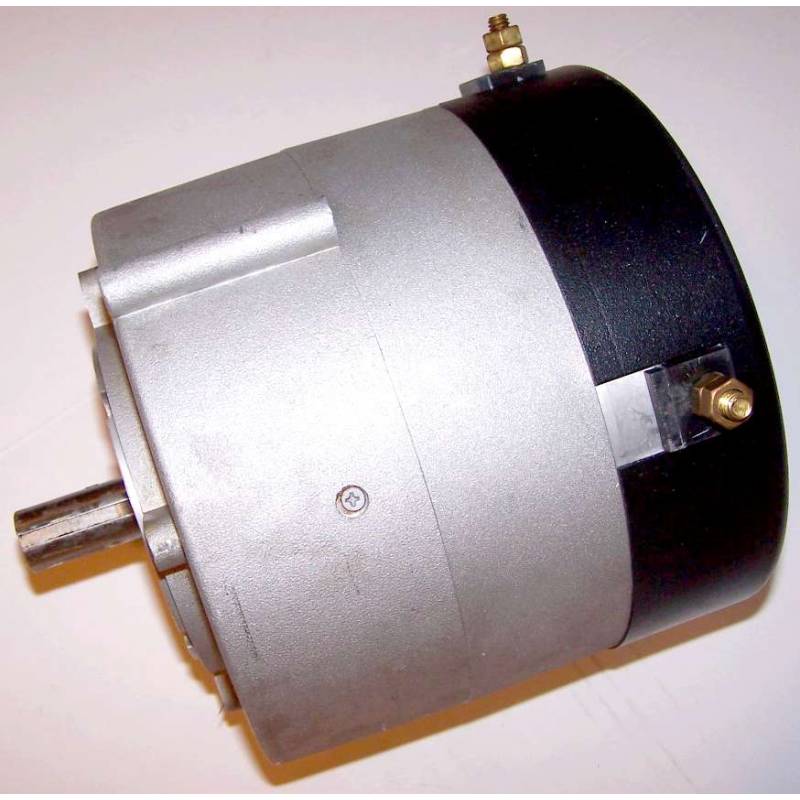

Motenergy motor, ME1007 PMDC, Air cooling, Enclosed

110-015

New product

727,92 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME1007 PMDC motor, brush-type direct current, 12-48VDC, 100A, 4,8kW, 12Nm, air cooling, enclosed

Waterproof, fully enclosed version of Motenergy ME0708 motor
Motenergy ME1007 PMDC electric motor
Brush-Type motor.
Permanent Magnet Direct Current motor
Efficiency 90% at 48 VDC.
Rotation speed 75 RPM per Volt
Rotation speed 900 RPM  at 12VDC.
Rotation speed 3600 RPM at 48VDC.
Controller input voltage 12 à 48 VDC.
Constant torque at 0.12 Nm/Amp.
Rated power 4,8kW, peak 12kW (17hp).
Rated current 100A continuous
Rated torque 12Nm at 100A.
Max. DC current 300A during 30sec.
Max. torque 36Nm at 300A.
No temperature sensor
Output motor shaft 7/8"
Shaft key 3/16"
Recommended power cable 35mm² with 8mm lugs
Regen current in brake mode 7,1 A per Nm
Brushes life about 1500 hours
Weight 12,5Kg
Dimensions : Diam. 200mm x 164mm
