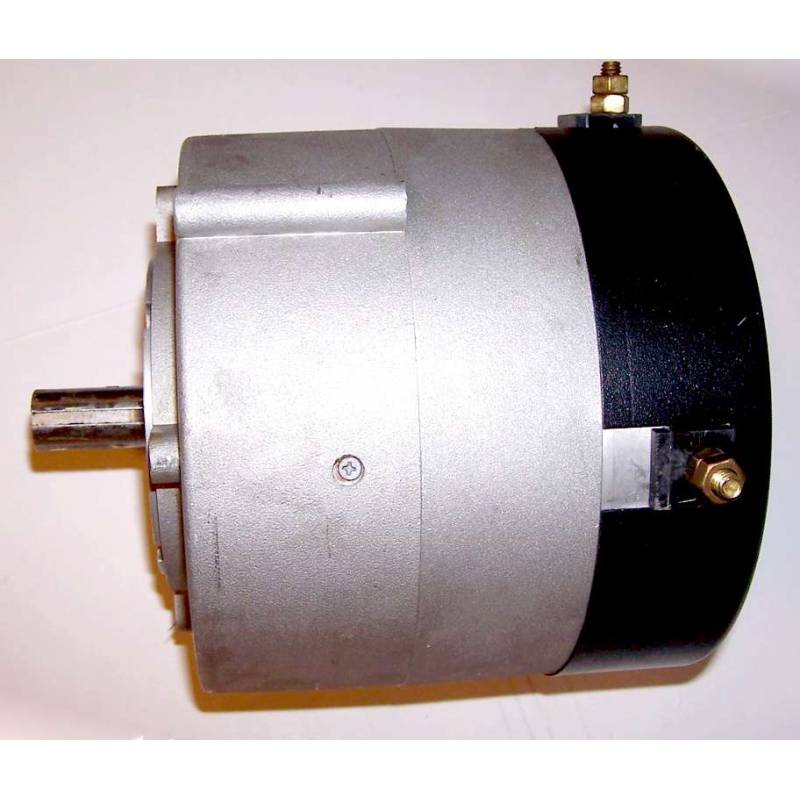

Motenergy motor, ME1008 PMDC, Air cooling, Enclosed

Waterproof, fully enclosed version of Motenergy ME1003 motor
Motenergy ME1008 PMDC electric motor
Brush-Type motor.
Permanent Magnet Direct Current motor
Efficiency 92% at 48 VDC.
Rotation speed 48 RPM per Volt
Rotation speed 570 RPM  at 12VDC.
Rotation speed 2300 RPM at 48VDC.
Rotation speed 3450 RPM at 72VDC.
Controller input voltage 12 à 72 VDC.
Constant torque at 0.20 Nm/Amp.
Rated power 6,4kW, peak 20kW (28hp).
Rated current 100A continuous
Rated torque 18Nm at 100A.
Max. DC current 300A during 30sec.
Max. torque 54Nm at 300A.
No temperature sensor
Output motor shaft 7/8"
Shaft key 3/16"
Recommended power cable 50mm² with 8mm lugs
Regen current in brake mode 5,6A per Nm
Brushes life about 1500 hours
Weight 17,6 Kg
Dimensions : Diam. 200mm x 188mm
