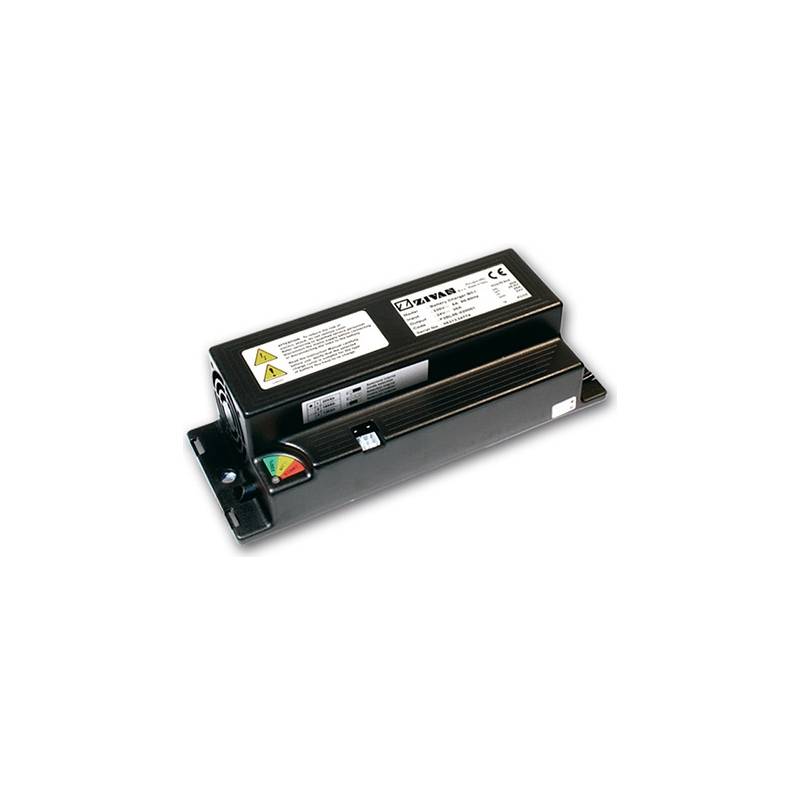

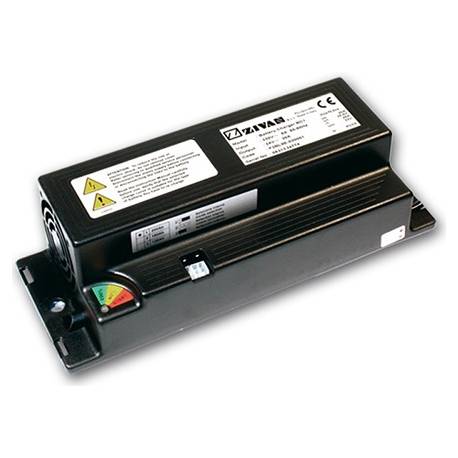

ZIVAN BC1 24V 30A Lead battery charger

410-071

New product

356,40 € Tax excluded

Livraison : 3 à 6 semaines
  • Input voltage: 115VAC/230VAC - 50Hz/60Hz
  • Output voltage: 24V
  • Output charging current: 30A
  • Efficiency: > 85 %
  • Operating temperature: from –20 to + 50 °C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)
  • Accuracy on output voltage: ± 0,5 %
  • Case: Metal base, cover in self-extinguishable ABS

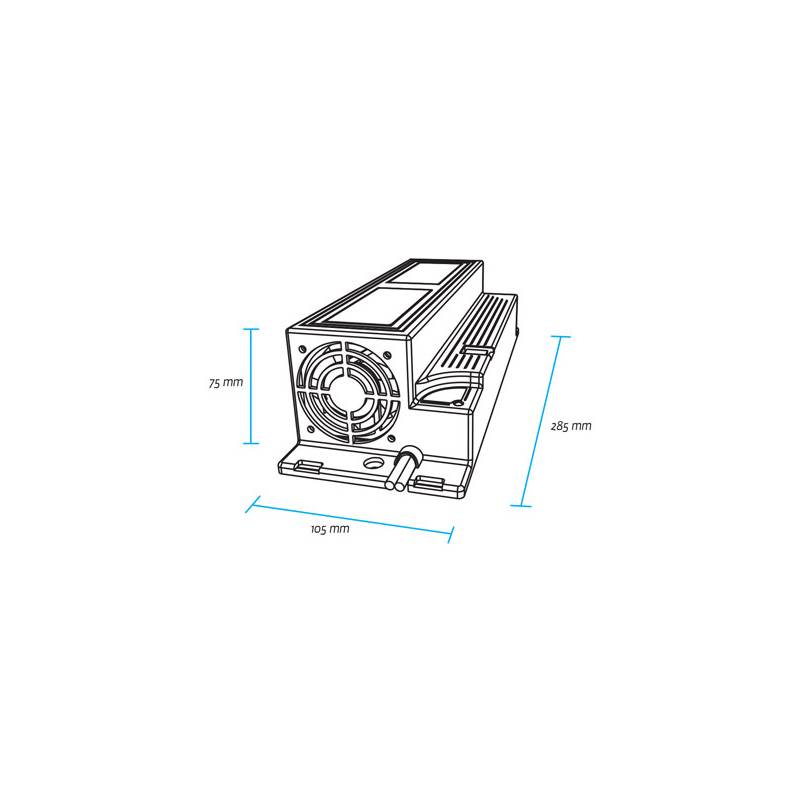

  • Size: 285 x 105 x 75 mm
  • Weight: 1,390 kg
  • Enclosure class: IP20
  • Use for lead AGM/Gel or lead acid battery

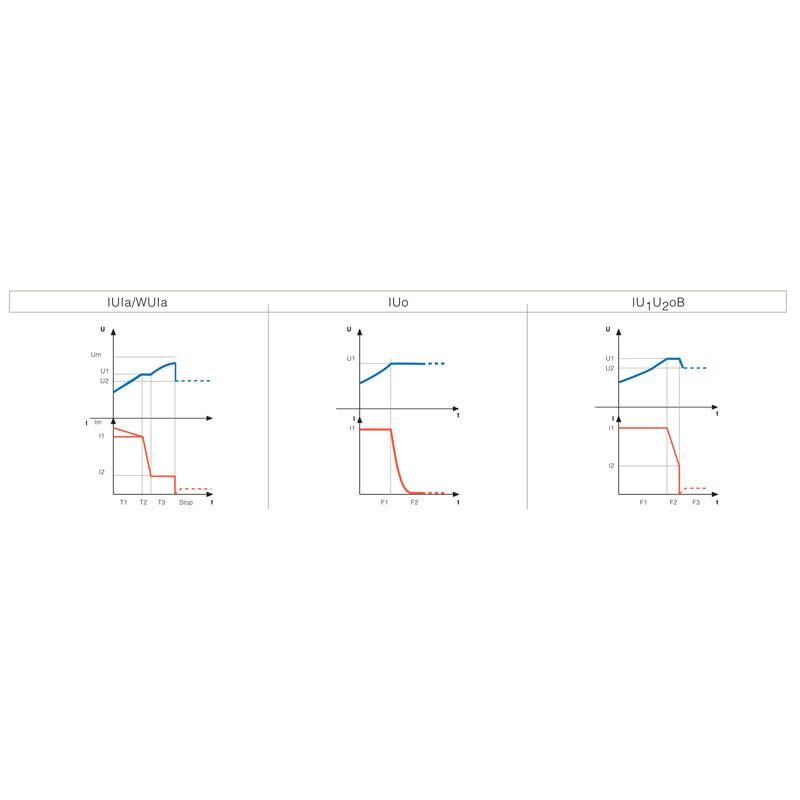

The Single Phase Battery Charger BC1 is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and adapt them to every kind of battery. Due to its size and light weight, this model is especially suitable for on-board installation, in addition to the “ on wall” installation. Consequently, the machine can be recharged from any available outlet, without driving the machine to a specific charging area.

Zivan Ref : F2BL8E-02000Q*

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

ZIVAN BC1 24V 30A Lead battery charger

ZIVAN BC1 24V 30A Lead battery charger

  • Input voltage: 115VAC/230VAC - 50Hz/60Hz
  • Output voltage: 24V
  • Output charging current: 30A
  • Efficiency: > 85 %
  • Operating temperature: from –20 to + 50 °C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)
  • Accuracy on output voltage: ± 0,5 %
  • Case: Metal base, cover in self-extinguishable ABS
  • Size: 285 x 105 x 75 mm
  • Weight: 1,390 kg
  • Enclosure class: IP20
  • Use for lead AGM/Gel or lead acid battery

ZIVAN-BC1-Doc

Commercial documentation of the BC1 charger

Download (919.07k)
