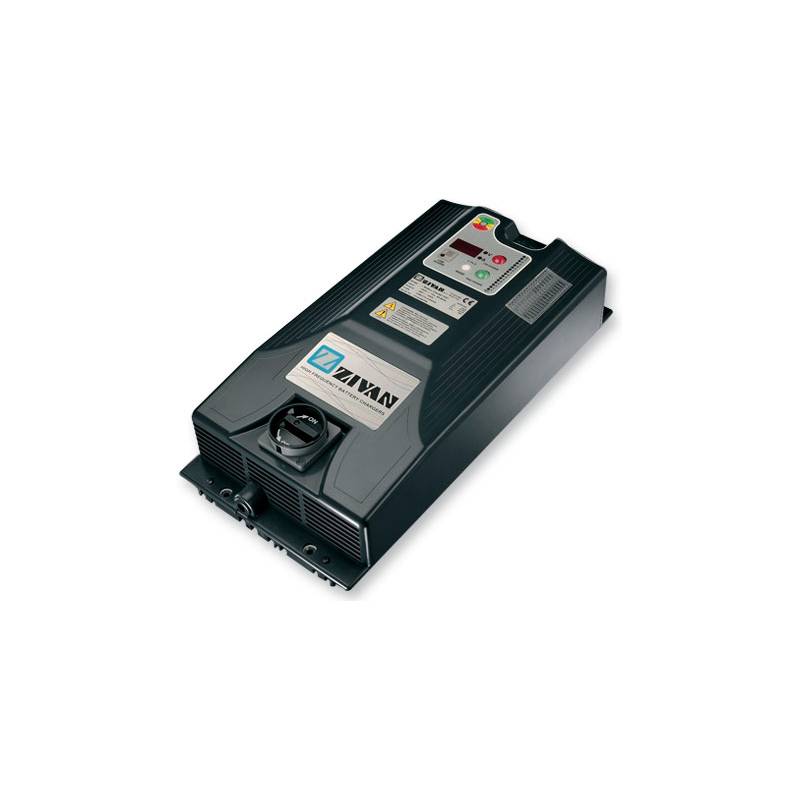

ZIVAN NG9 24V 145A Lead/Lithium battery charger

New product

1 508,76 € Tax excluded

Livraison : 1 à 3 semaines
  • Input voltage: 380VAC tree-phase - 50Hz/60Hz
  • Output voltage: 24V
  • Output charging current: 145A
  • Constant current / constant voltage charging mode
  • Efficiency: >87 %
  • Operating temperature: from –20 to +50°C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)

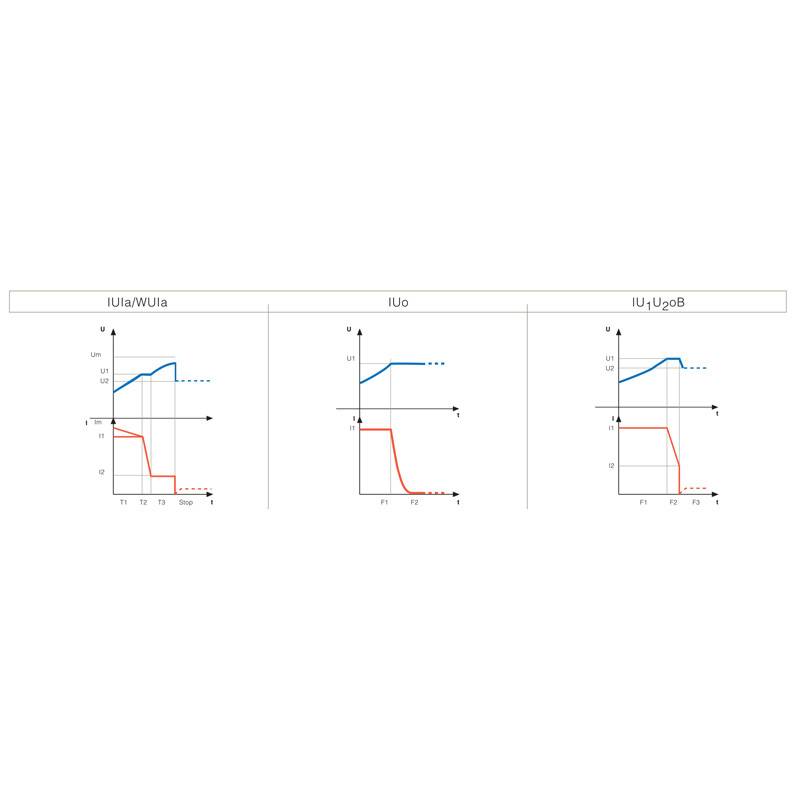

  • Charging curve: programmable
  • Auxiliary end of charge contacts
  • Acoustic alarm
  • Case: Metal base, cover in self-extinguishable ABS

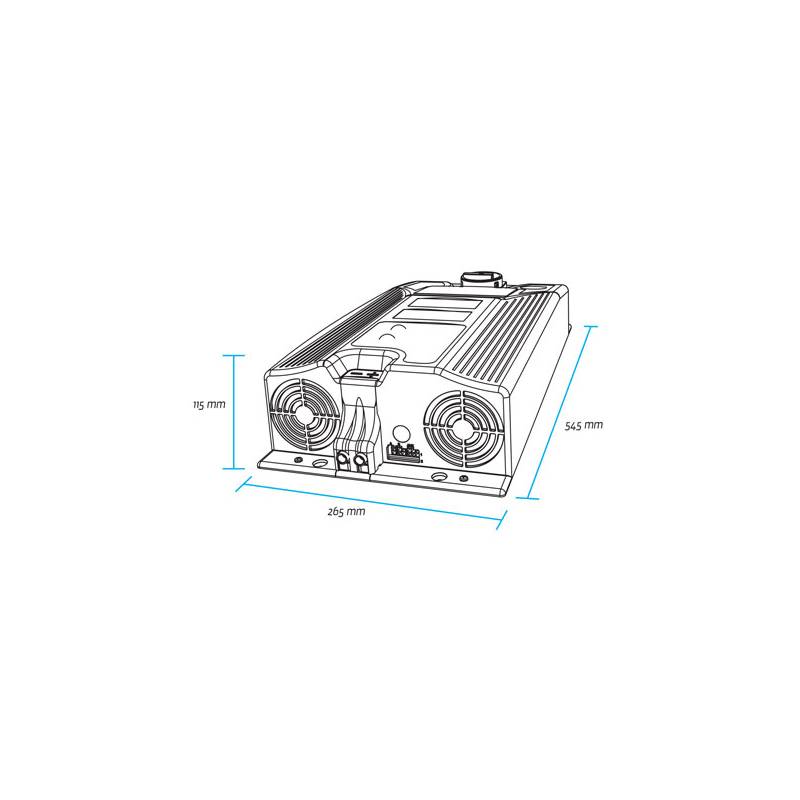

  • Size: 545 x 265 x 115mm
  • Weight: 9kg
  • Enclosure class: IP20
  • Use for lead (AGM/Gel/Liquid acid) or lithium (all chimisteries) battery, select charger option.
  • Conformity with Directive 73/23/EEC and EMC 89/336/EEC
  • Lead charg. - master - CB/Cu1
  • Lithium charg. - master - CB/Cu3
  • Lithium charg. - CAN slave - RE

The Tree-Phase ZIVAN NG9 24V 120A is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and to adapt them to every kind of battery. The reduced size of this model means that it can be not only installed on the wall, but also carried on-board. Consequently the battery can be charged in whichever plug available, without driving the machine to the charging area.

ZIVAN ref : G8BZMW-C40E0Q

3D view

Modèle 3D disponible sur demande.

3D model available on request.

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

ZIVAN NG9 24V 145A Lead/Lithium battery charger

ZIVAN NG9 24V 145A Lead/Lithium battery charger

  • Input voltage: 380VAC tree-phase - 50Hz/60Hz
  • Output voltage: 24V
  • Output charging current: 145A
  • Constant current / constant voltage charging mode
  • Efficiency: >87 %
  • Operating temperature: from –20 to +50°C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)
  • Charging curve: programmable
  • Auxiliary end of charge contacts
  • Acoustic alarm
  • Case: Metal base, cover in self-extinguishable ABS
  • Size: 545 x 265 x 115mm
  • Weight: 9kg
  • Enclosure class: IP20
  • Use for lead (AGM/Gel/Liquid acid) or lithium (all chimisteries) battery, select charger option.
  • Conformity with Directive 73/23/EEC and EMC 89/336/EEC
SBX175 24V 35mm2 red connector
0 Review(s)
14,89 € Tax excluded
Livraison : 1 à 3 semaines
Male Plug 16A 380V-415V Red 3P+N+T IP67
0 Review(s)
31,54 € Tax excluded
Livraison : 3 à 6 semaines
Male Plug 3P+N+T 20A 380V
0 Review(s)
23,73 € Tax excluded
Livraison : 3 à 6 semaines

ZIVAN-NG5-7-9-Doc

Commercial documentation of the NG5, NG7 and NG9 chargers

Download (444.21k)

ZIVAN-NG5-7-9-Manuel

User manual of the NG5, NG7 and NG9 chargers

Download (343.52k)

ZIVAN-NG9-Temps

ZIVAN NG9 charger: charging times and line supply RMS current

Download (136.89k)
