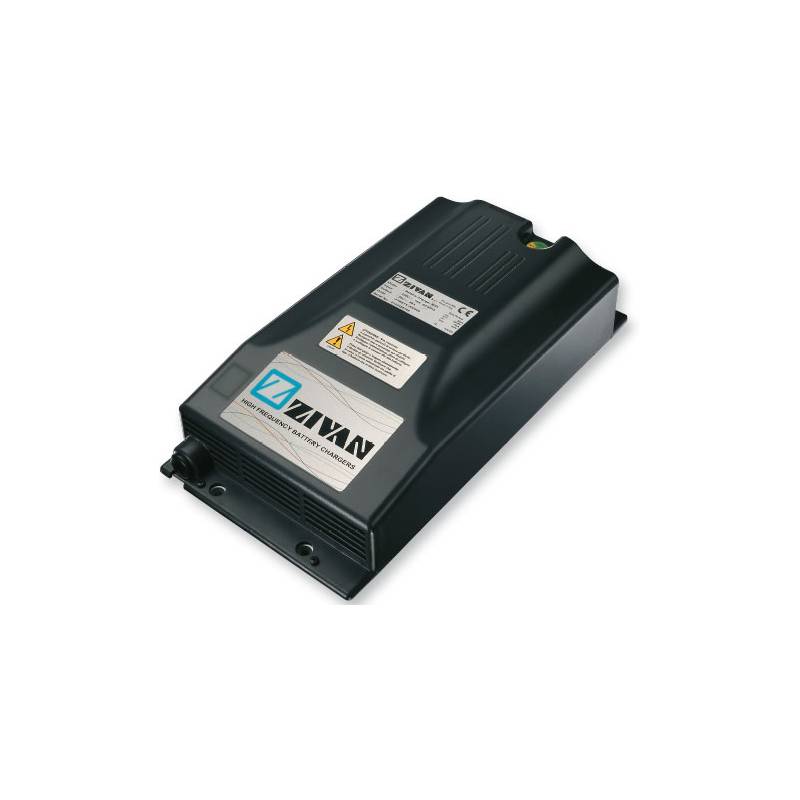

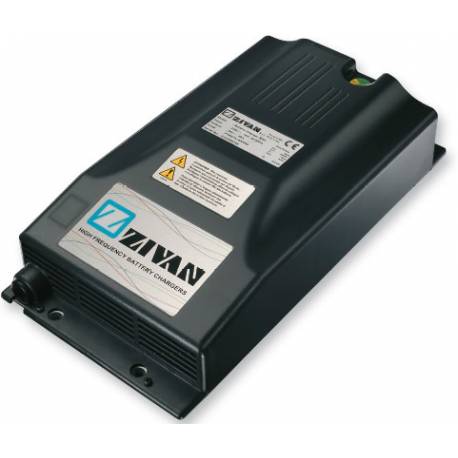

ZIVAN NG3 36V 60A Lead/Lithium battery charger
New product
791,64 € Tax excluded
Livraison : 1 à 3 semaines
- Input voltage: 115VAC/230VAC - 50Hz/60Hz
- Output voltage: 36V
- Output charging current: 60A
- Constant current / constant voltage charging mode
- Efficiency: > 85 %
- Operating temperature: from –20 to + 50 °C
- Output short-circuit protection (fuse)
- Inverse polarity protection (fuse)

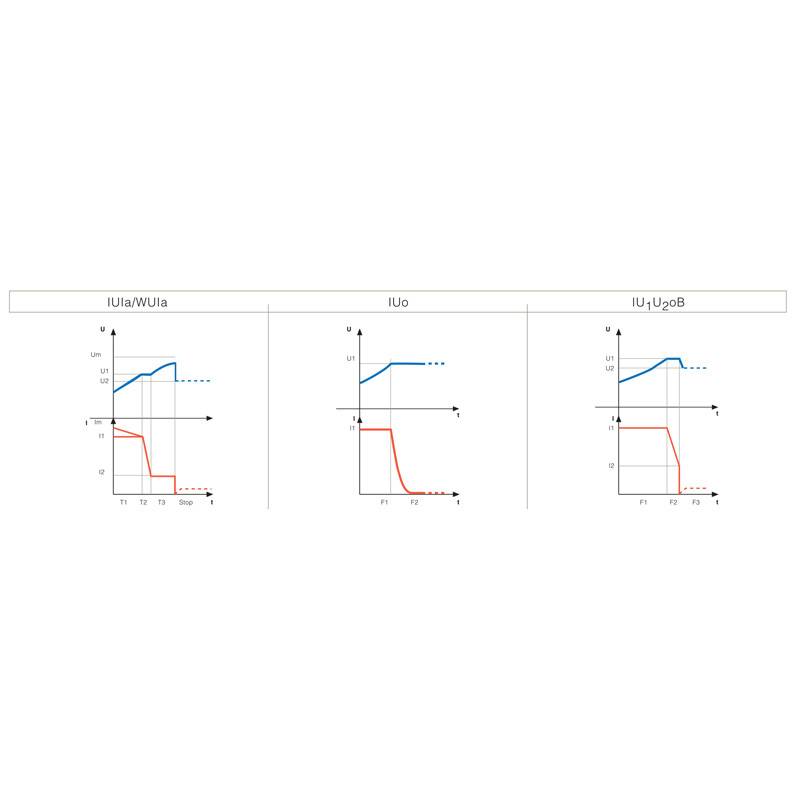

- Charging curve: programmable
- Auxiliary end of charge contacts
- Acoustic alarm
- Case: Metal base, cover in self-extinguishable ABS

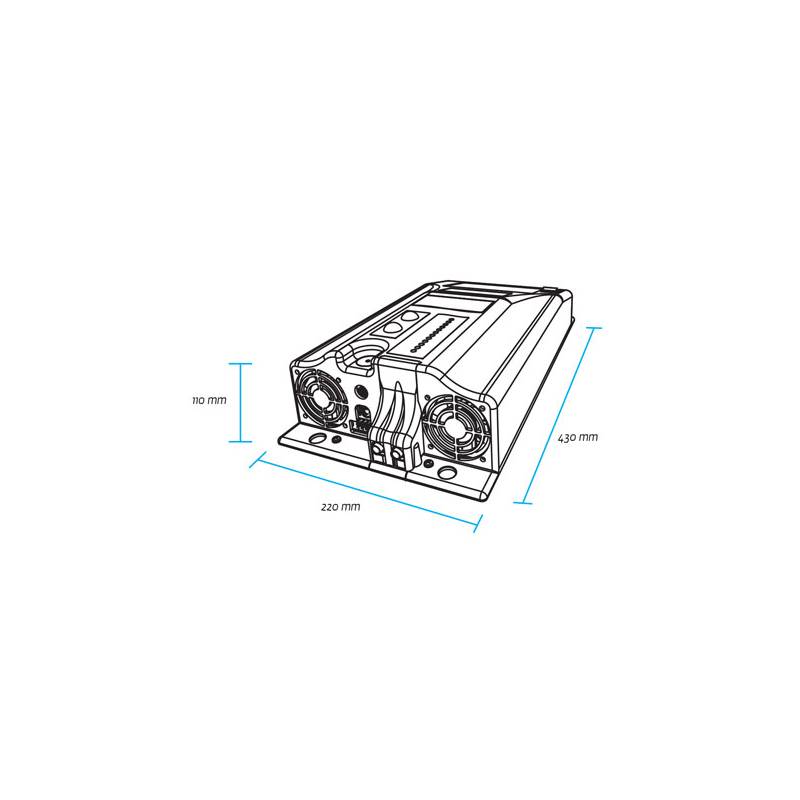

- Size: 430 x 220 x 110 mm
- Weight: 5,5 kg
- Enclosure class: IP20
- Use for lead AGM/Gel or lead acid battery
- Conformity with Directive 73/23/EEC and EMC 89/336/EEC
The Single Phase ZIVAN NG3 36V 60A is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and to adapt them to every kind of battery. The reduced size of this model means that it can be not only installed on the wall, but also carried on-board. Consequently the battery can be charged in whichever plug available, without driving the machine to the charging area.
ZIVAN ref : F7CQMW-00020X
