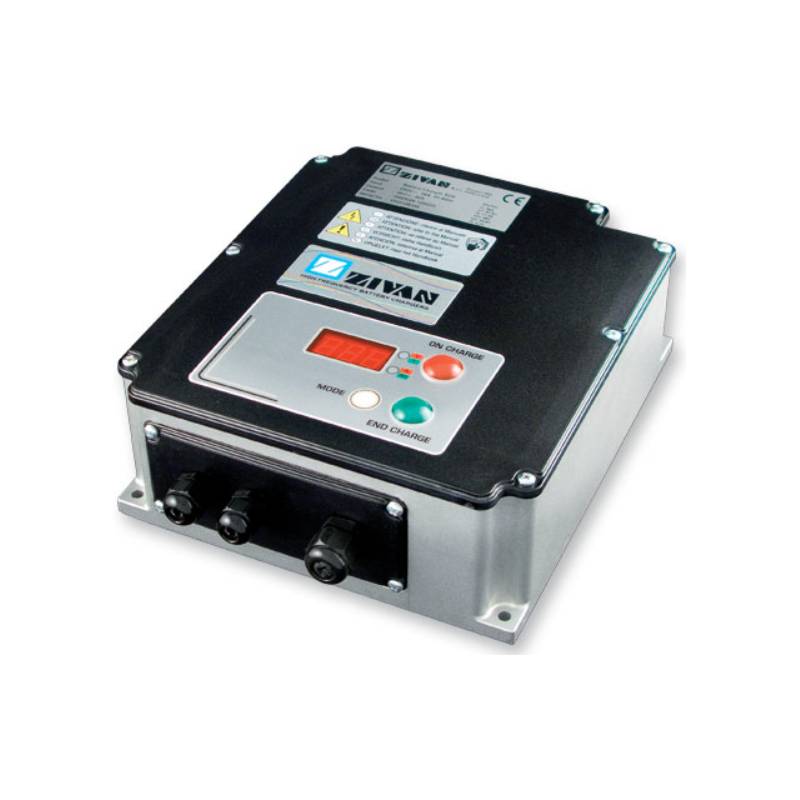

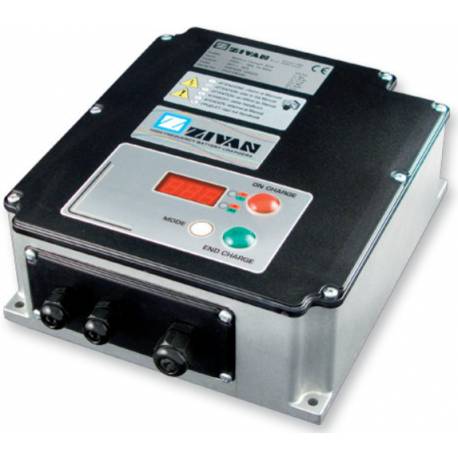

ZIVAN SG6 48V 40A Lead/Lithium battery charger
New product
842,40 € Tax excluded
- Input voltage: 115VAC/230VAC - 50Hz/60Hz
- Output voltage: 48V
- Output charging current: 40A
- Constant current / constant voltage charging mode
- Efficiency: > 85 %
- Operating temperature: from –20 to +50 °C
- Output short-circuit protection (fuse)
- Inverse polarity protection (fuse)

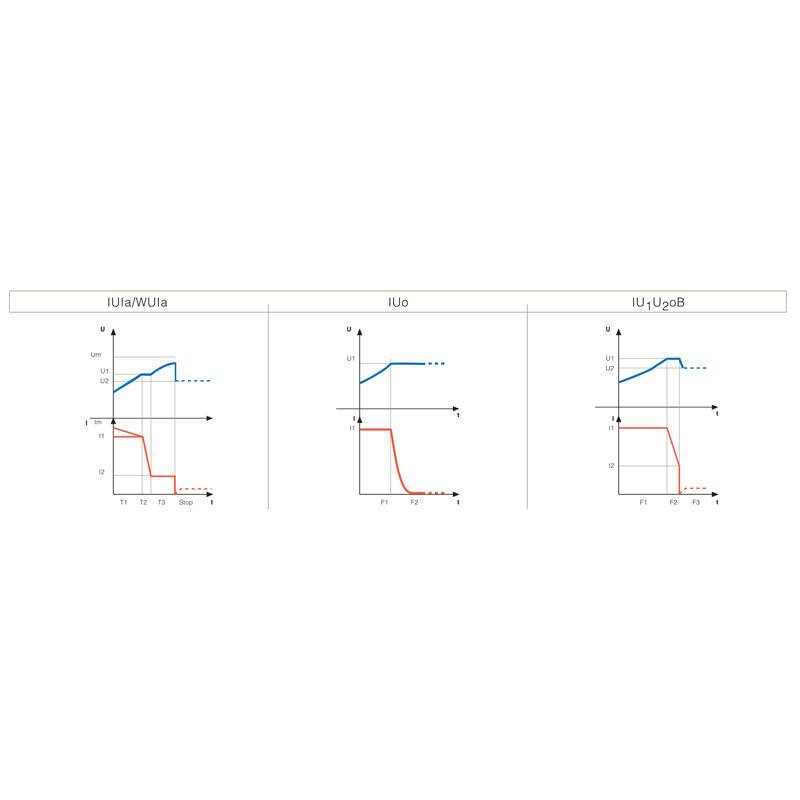

- Charging curve: programmable
- Auxiliary end of charge contacts
- CAN 2.0 CANopen interface
- Case: Metal base, cover in self-extinguishable ABS

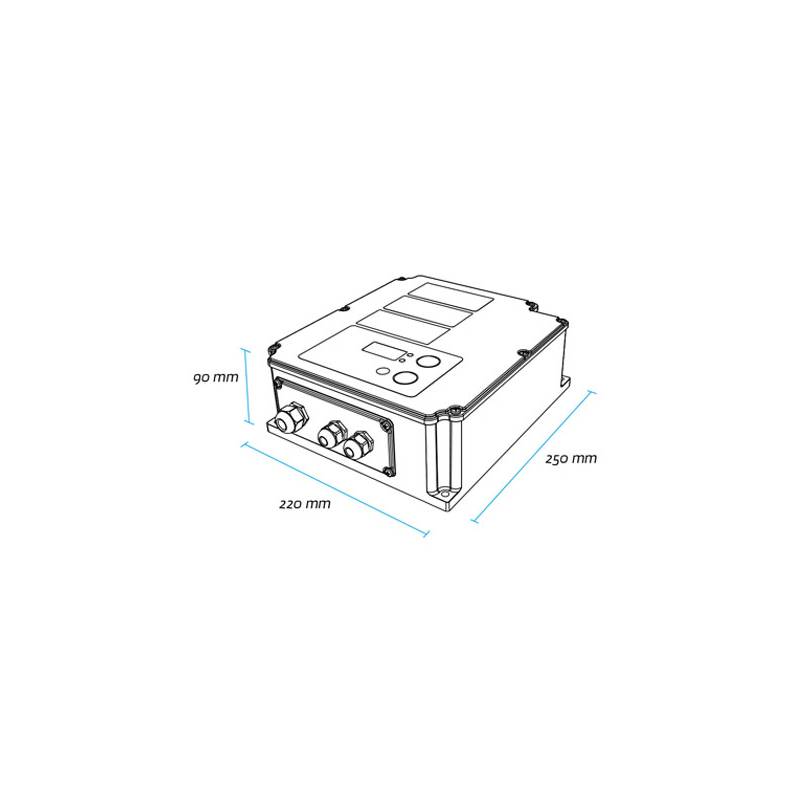

- Size: 250 x 220 x 90mm
- Weight: 5kg
- Enclosure class: IP65
- Use for lead (AGM/Gel/Liquid acid) or lithium (all chimisteries) battery, select charger option.
- Conformity with Directive 73/23/EEC and EMC 89/336/EEC
The ZIVAN SG6 48V 40A CAN battery charger marks a revolution of integrating an on-board charger to an electric vehicle platform. The active PFC filter is perfectly suited for applications around the world, accepting a supply voltage from 95 to 265 VAC. The innovative configuration of its heat sink, integrated into the rugged die-cast aluminium IP65 enclosure of the charger, allows for maximum flexibility of installation and extreme working conditions.
The SG6 utilizes the latest generation flash microcontroller, which is necessary to handle the multitude of possible charging algorithms installed. The isolated CANBUS interface (2.0) enables integration of the unit into the system architecture of the vehicle. The abundant storage capacity is able to save up to 1K charging cycles, allowing for a complete analysis of the behaviour of the battery and use over its lifetime. Last but not least, the SG6 is optimized to allow for high efficiency conversion from standard household sockets, allowing for the charging of all kinds of battery technologies.
ZIVAN ref : ask us
