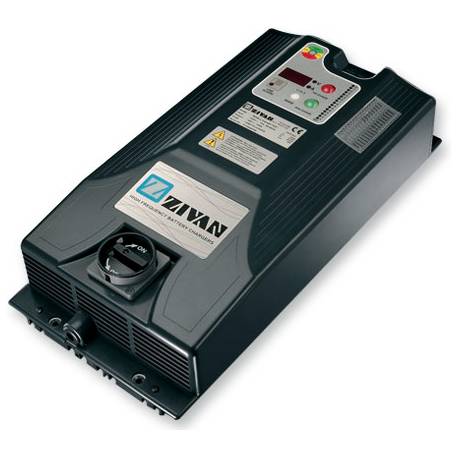

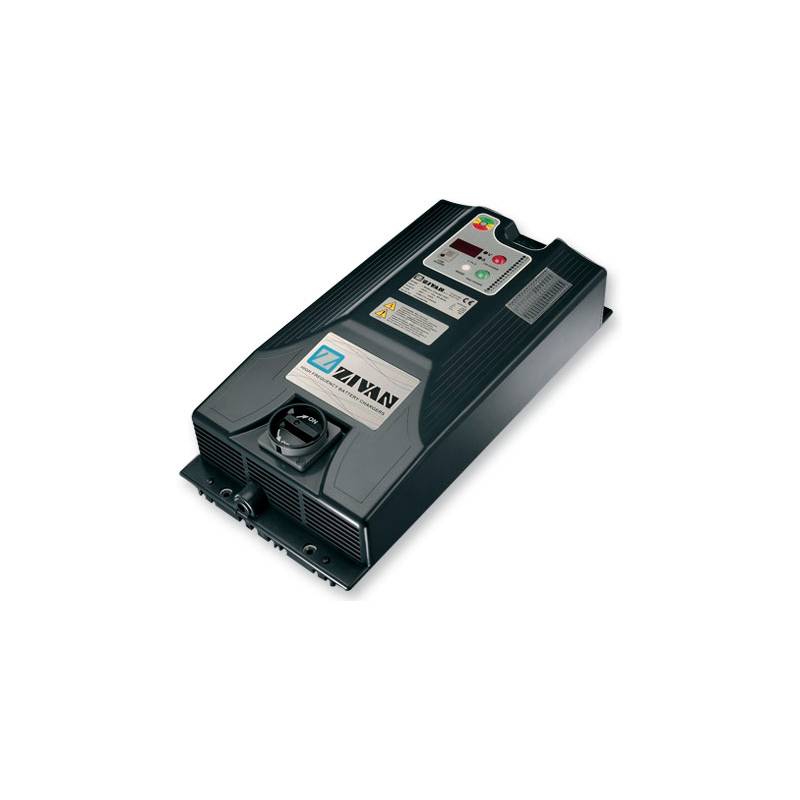

ZIVAN NG5 72V 60A Lead/Lithium battery charger

New product

1 154,52 € Tax excluded

Livraison : 1 à 3 semaines
  • Input voltage: 380VAC tree-phase - 50Hz/60Hz
  • Output voltage: 72V
  • Output charging current: 60A
  • Constant current / constant voltage charging mode
  • Efficiency: >87 %
  • Operating temperature: from –20 to +50°C
  • Output short-circuit protection (fuse)
  • Inverse polarity protection (fuse)

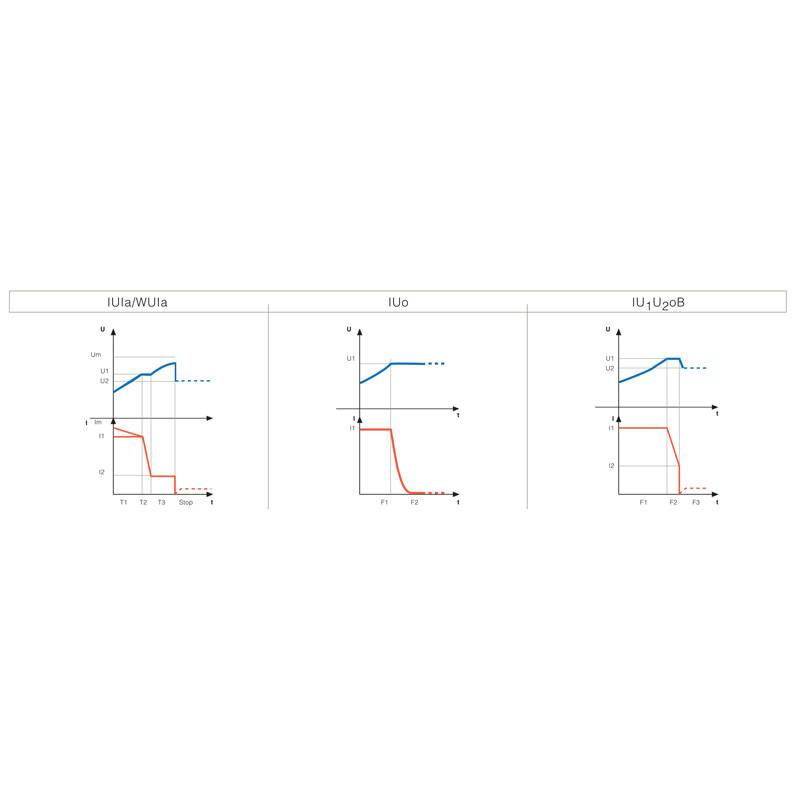

  • Charging curve: programmable
  • Auxiliary end of charge contacts
  • Acoustic alarm
  • Case: Metal base, cover in self-extinguishable ABS

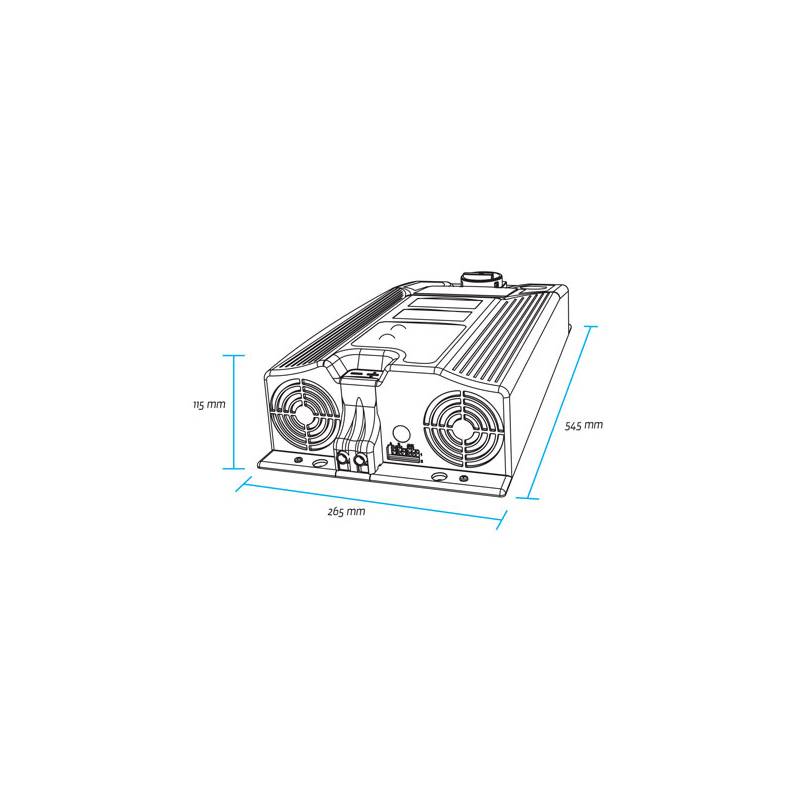

  • Size: 545 x 265 x 115mm
  • Weight: 9kg
  • Enclosure class: IP20
  • Use for lead (AGM/Gel/Liquid acid) or lithium (all chimisteries) battery, select charger option.
  • Conformity with Directive 73/23/EEC and EMC 89/336/EEC
  • Lead charg. - master - CB/Cu1
  • Lithium charg. - master - CB/Cu3
  • Lithium charg. - CAN slave - RE

The Tree-Phase ZIVAN NG5 72V 60A is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed to change the charging features and to adapt them to every kind of battery. The reduced size of this model means that it can be not only installed on the wall, but also carried on-board. Consequently the battery can be charged in whichever plug available, without driving the machine to the charging area.

ZIVAN ref : GJIQCB-47030X

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**
