ORANGE flexible electric cable sold per meter, comply EVs Orange color multistrand cable Sold by meter (not cut if more than one meter ordered) Cable available in the following sections : : 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm² Standard CE and IEC 245-6 Operating voltage 450VDC / 750VAC Operating temperature -40°C to 70°C

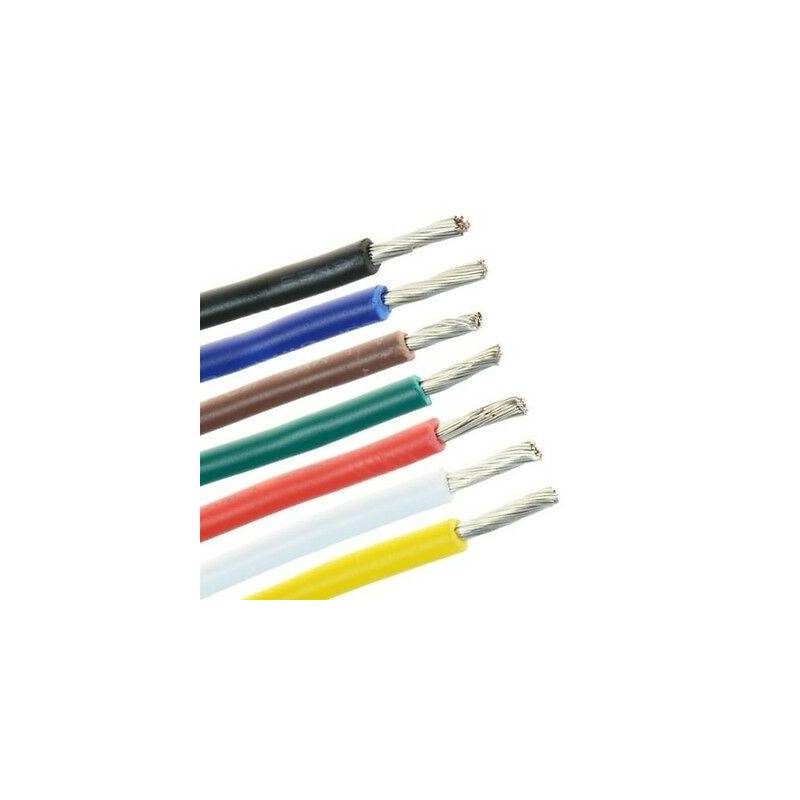

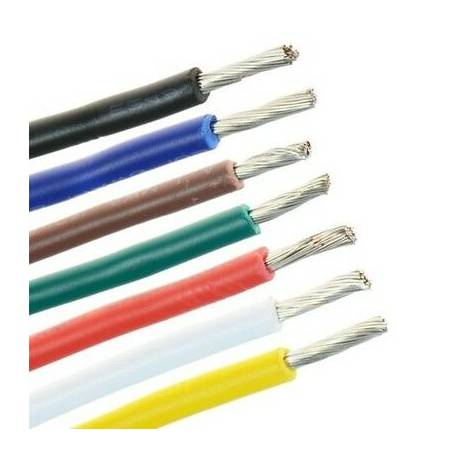

Wiring electric cables for harness manufacturing Section 0.75 mm2 (18 AWG) Voltage 750 V Current 3A Insulation material PVC Available in various colors Sold per meter and color
BLACK flexible electric cable sold per meter, comply EVs Black color multistrand cable Sold by meter (not cut if more than one meter ordered) Cable available in the following sections : 0,75mm², 1mm², 1,5mm², 2,5mm², 4mm², 6mm²,10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm² Standard RoHS, CE and IEC 245-6 Operating voltage 450VDC / 750VAC Operating...
Red flexible electric cable sold per meter, comply EVs Red color multistrand cable Sold by meter (not cut if more than one meter ordered) Cable available in the following sections : 0,75mm², 1mm², 1,5mm², 2,5mm², 4mm², 6mm²,10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm² Standard RoHS, CE and IEC 245-6 Operating voltage 450VDC / 750VAC Operating...
Wiring electric cables for harness manufacturing Section 1.5 mm2 (AWG 15) Voltage 750 V Current 5A Insulation material PVC Available in various colors Sold per meter and color
Wiring electric cables for harness manufacturing Section 2.5 mm2 (AWG 13) Voltage 750 V Current 10A Insulation material PVC Available in various colors Sold per meter and color
Wiring electric cables for harness manufacturing Section 4 mm2 (AWG 11) Voltage 750 V Current 20A Insulation material PVC, H07-VK Available in various colors Sold per meter and color
0.75mm2 flexible multi-strand multi-core cable Number of wires: 2 to 37 conductors (2G0.75 to 37G0.75) Cable type YSLY-JZ CONTROLFLEX PVC sheath, oil resistant, gray RAL 7001 Nominal voltage Uo / U 300/500 V Temperature in fixed use -30 / + 70 ° C Fire behavior: non-propagating / self-extinguishing Movable bending radius: 20 x Ø - fixed: 6 x Ø...
ORANGE flexible electric cable sold per meter, comply EVs Orange color multistrand cable Sheilding in tinned annealed copper wire with al-mylar Sold by meter (not cut if more than one meter ordered) Cable available in the following sections : : 10mm², 16mm², 25mm², 35mm², 50mm², 70mm² Standard CE, RoHS, Reach, ISO 6722 Class C 125℃ Operating...
