Karting electric conversion kit, P4 36V-48V DC

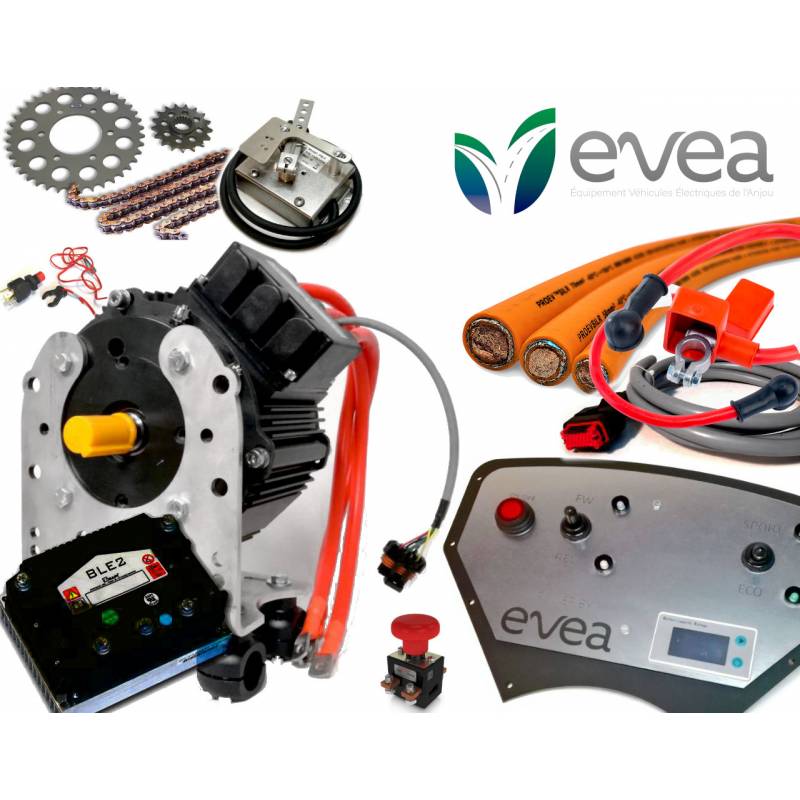

This P4 36V-48V DC karting electric conversion kit contain:

- 1 * Motenergy ME0909 4.5kW brushes motor
- 1 * ZAPI PMX PW 36V-48V 210A controller with preset
- 1 * Harness for Zapi PMX controller
- 1 * Curtis PB6 type 4 wire thottle box
- 1 * Albright SD300 emergency stop
- 1 * Fork circuit cutter
- 2 * Meters of 35mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 35mm² orange cable + controller lugs + orange lugs cover
- 1 * Complet transmission chaine 1:4 for 30mm shaft (other diam. available)
- 1 * Karting dash board with battery state of charge indicator
- 1 * Moternergy karting mounting bracket (chassis tube 30mm)
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P4 36V-48V DC karting electric conversion kit :

- Rated voltage : 36V-48V
- Working voltage : 26V à 57V
- Rated current : 100Arms
- Maximum current : 250Arms
- Rated power : 4kW
- Maximum power : 10kW
- Rated torque : 11Nm
- Maximum torque : 25Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 28kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.
For maximum announced performance, a controller program rework is needed, contact us.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

In case of nautical / marine applications, consult us before placing an order.
