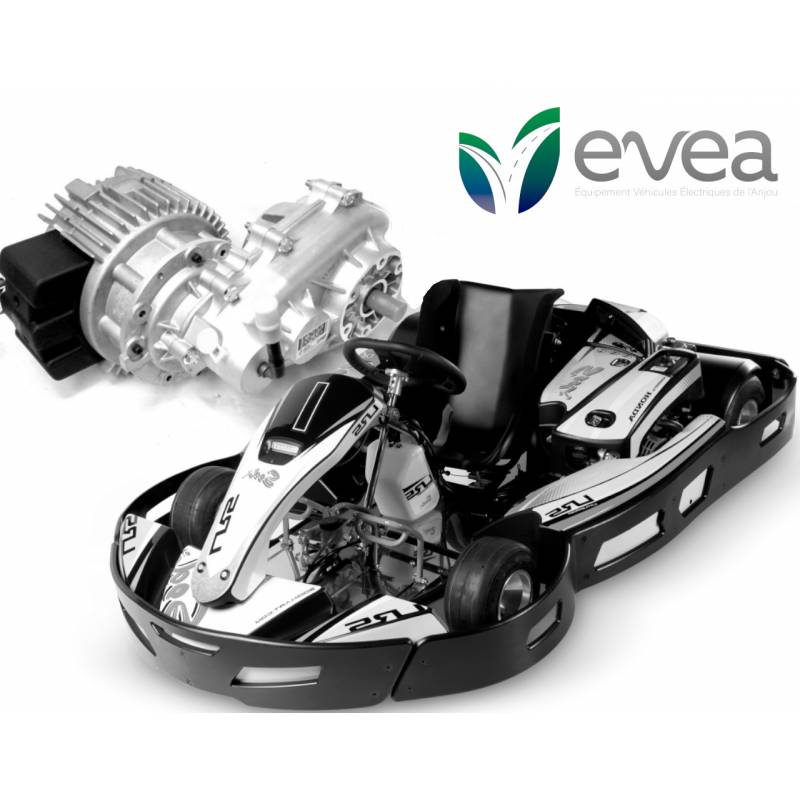

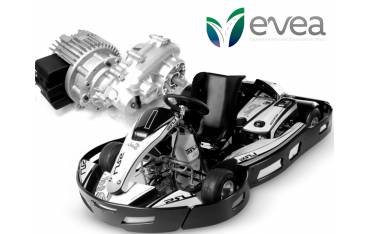

Karting electric conversion kit, P12 96V AC

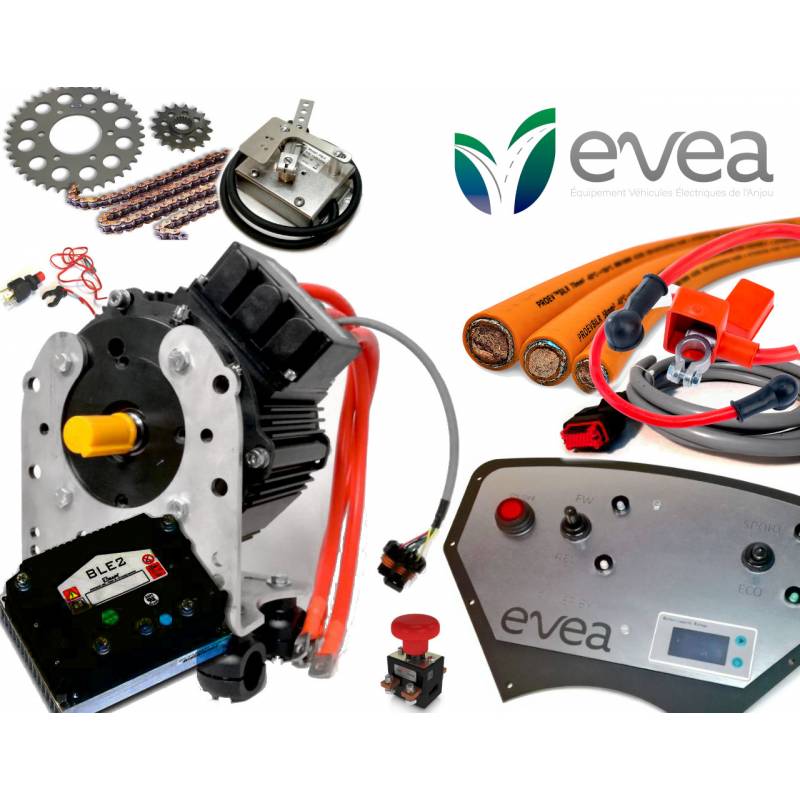

This P12 96V AC karting electric conversion kit contain:

- 1 * Motenergy ME1507 12kW PMSM brushless motor
- 1 * ZAPI BLE-4 96V 500A controller with preset
- 1 * Harness for Zapi BLE-4 controller
- 1 * Curtis PB6 type 4 wire thottle box
- 1 * Albright SD300 emergency stop
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 50m² orange cable + controller lugs + orange lugs cover
- 1 * Complet transmission chaine 1:4 for 30mm shaft (other diam. available)
- 1 * Karting dash board with battery state of charge indicator
- 1 * Moternergy karting mounting bracket (chassis tube 30mm)
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P12 96V AC karting electric conversion kit :

- Rated voltage : 96V
- Working voltage :70V à 115V
- Rated current : 160Arms
- Maximum current : 500Arms
- Rated power : 12kW
- Maximum power : 35kW
- Rated torque : 32Nm
- Maximum torque : 100Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 40kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

In case of nautical / marine applications, consult us before placing an order.
