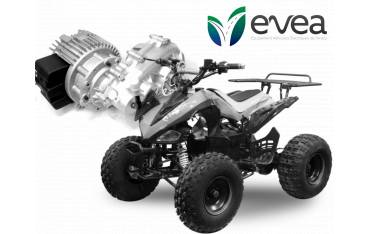

Quad 4WD conversion kit, P20 72V AC

This P20 72V AC 4WD quad electric conversion kit contains :

- 2 * Motenergy ME1202 10kW PMSM brushless motor
- 2 * ZAPI BLE-3 PW 72V 450A controller with preset
- 1 * Harness for dual Zapi BLE-3 controller
- 1 * Hall effect twist thottle + handlebar
- 1 * Emergency stop button + 2 * main contactor relay 200A
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 35mm² orange cable + controller lugs + orange lugs cover
- 1 * Dash board with speedometer and battery state of charge indicator
- 2 * Gearbox reducer 1/10 ratio, with mecanical differential in oil bath
- 4 * Cardan shaft (500mm lenght)
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P20 72V AC 4WD quad electric conversion kit :

- Rated voltage : 72V
- Working voltage :50V à 90V
- Rated current : 2 * 120Arms
- Maximum current : 2 * 450Arms
- Rated power : 20kW
- Maximum power : 44kW
- Rated torque : 44Nm
- Maximum torque : 140Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 55kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.

Kit typical use :

This batch of equipment allows the conversion of quad or buggy 4 WD into electric (equivalent displacement 400cc to 800cc). It may also be suitable for other applications, consult us before placing an order.
