Buggy 2WD conversion kit, P12 96V AC

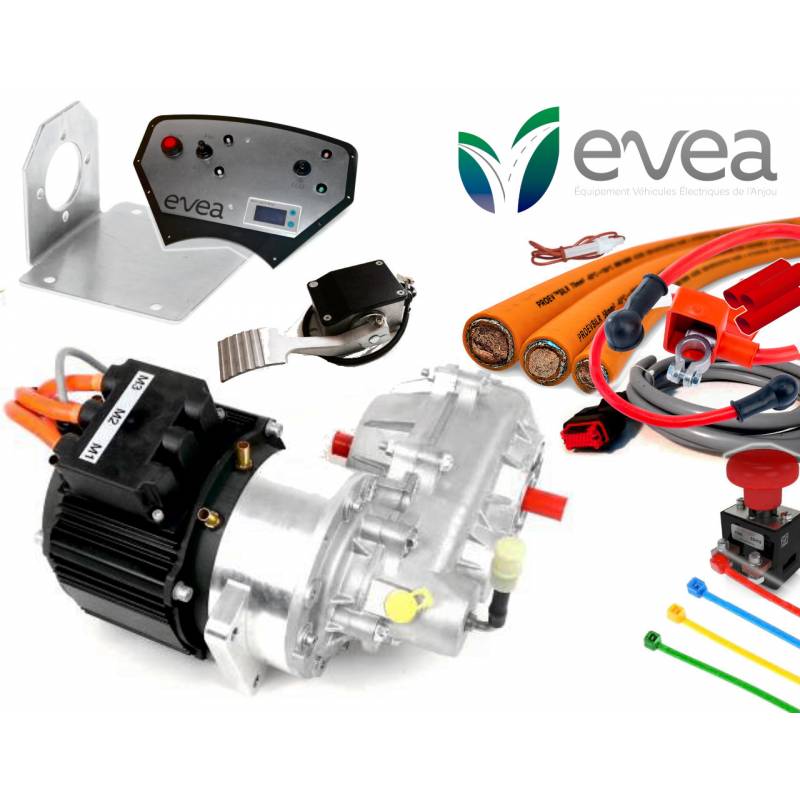

This P12 96V AC 2WD quad electric conversion kit contains :

- 1 * Motenergy ME1507 12kW PMSM brushless motor
- 1 * ZAPI BLE-4 96V 500A controller with preset
- 1 * Harness for Zapi BLE-4 controller
- 1 * Hall effect foot thottle
- 1 * Emergency stop button + main contactor relay 200A
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + controller lugs + orange lugs cover
- 1 * Dash board with speedometer and battery state of charge indicator
- 1 * Gearbox reducer 1/10 ratio, with mecanical differential in oil bath
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P12 96V AC 2WD quad electric conversion kit :

- Rated voltage : 96V
- Working voltage :70V à 115V
- Rated current : 160Arms
- Maximum current : 500Arms
- Rated power : 12kW
- Maximum power : 30kW
- Rated torque : 32Nm
- Maximum torque : 90Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 41kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.

Kit typical use :

This batch of equipment allows the conversion of quad or buggy 2 WD into electric (equivalent displacement 250cc to 500cc). It may also be suitable for other applications, consult us before placing an order.
