Electric motor set, P4+ 48V

This electrification set P4+ 48V contain:

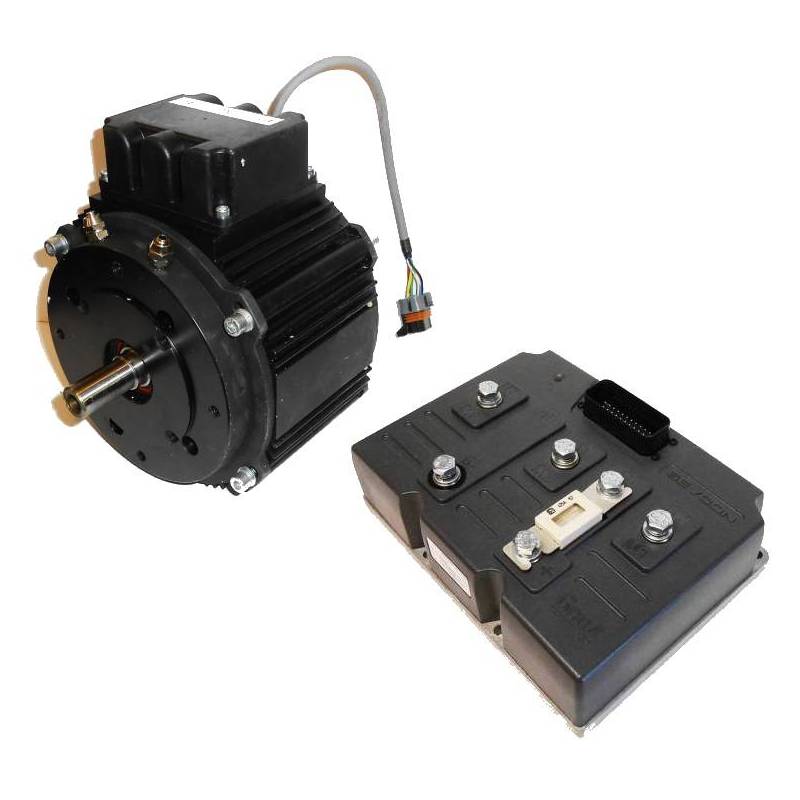

- 1 * Motenergy ME1304 8.5kW synchronous PMSM electric motor (ref. 130-003)
- 1 * Sevcon GEN4 4845 three-phase controller (pre-programmed) (ref. 230-004-sincos)
- 1 * Harness for Sevcon Controller (ref. 570-GEN4-35B-25)
- 1 * Curtis PB6 4 wire thottle box (ref. 590-PB6-4F)
- 1 * Slim liquid cooling kit (ref. )
- 1 * 10mm/19mm hose adapter for ME1304/ME1302 motor (ref. )
- 1 * Albright SD300 emergency stop (ref. 580-SD300A-2-24V)
- 1 * Fork circuit cutter (ref. 590-008)
- 3 * Meters of 50mm² Black power cable (ref. 530-004)
- 6 * Terminal lugs for 50mm² power cable (ref. 540-50-08)
- 6 * Black terminal lugs cover for 50mm² power cable (ref. 240-005)
- 1 * Meters of 35mm² Black power cable (ref. 530-003)
- 1 * Meters of 35mm² RED power cable(ref. 530-007)
- 1 * Black terminal lugs cover for 35mm² power cable (ref. 240-003)
- 3 * Red terminal lugs cover for 35mm² power cable (ref. 240-013)
- 4 * Terminal lugs for 35mm² power cable (ref. 540-35-08)
- 1 * DC/DC converter 48V/12V 5A (water pump supply) (ref. )
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

P4+ 48V kit technical description :

- Rated voltage : 48V
- Working voltage : 26V à 57V
- Rated current : 180Arms
- Maximum current : 450Arms
- Rated power : 8,5kW
- Maximum power : 18kW
- Rated torque : 21Nm
- Maximum torque : 54Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 25kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.
For maximum announced performance, a controller program rework is needed, contact us.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

The liquid cooling system allows intensive use of this conversion kit, as well as use in a humid or dusty environment (TP).

In case of nautical / marine applications, consult us before placing an order.
