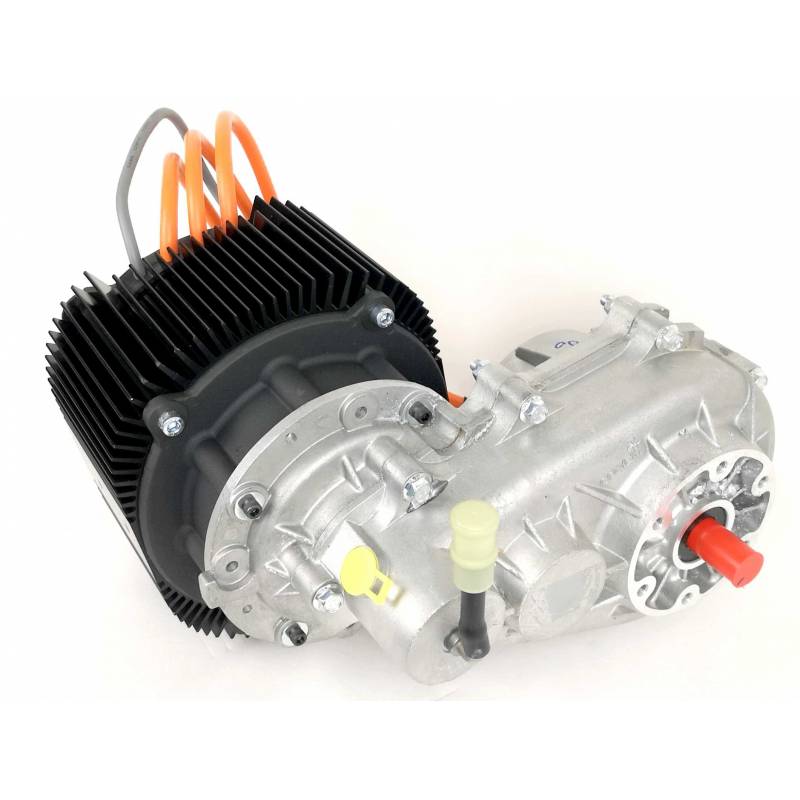

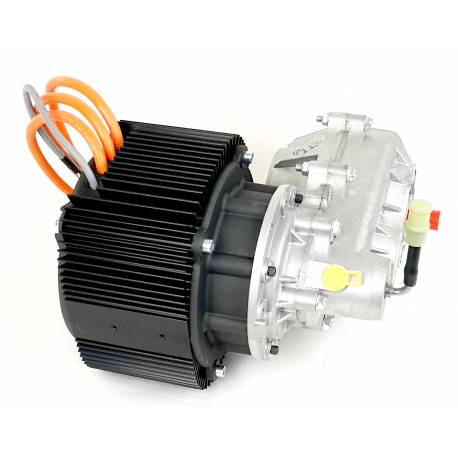

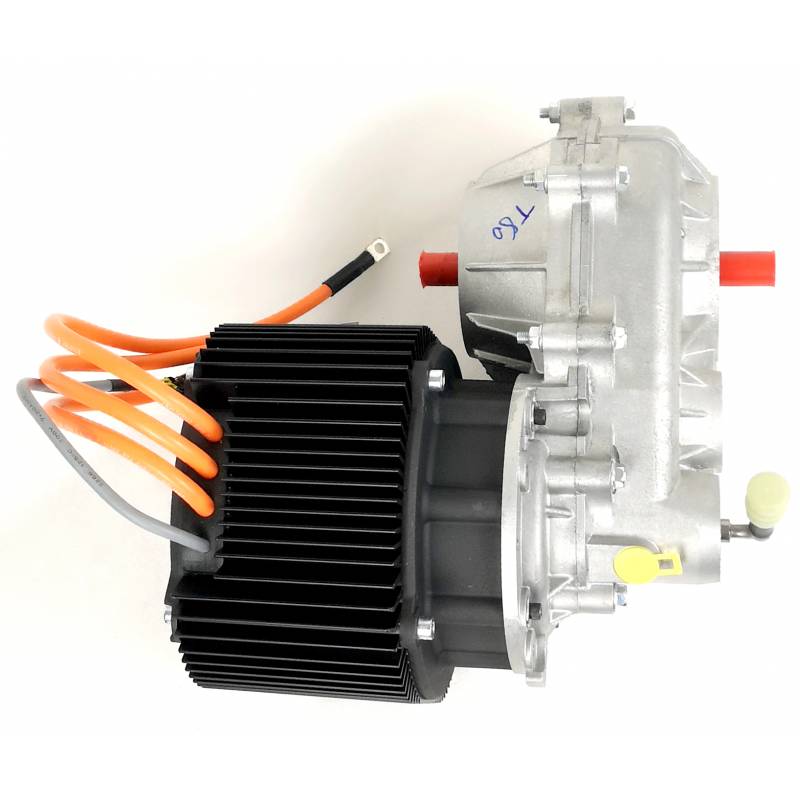

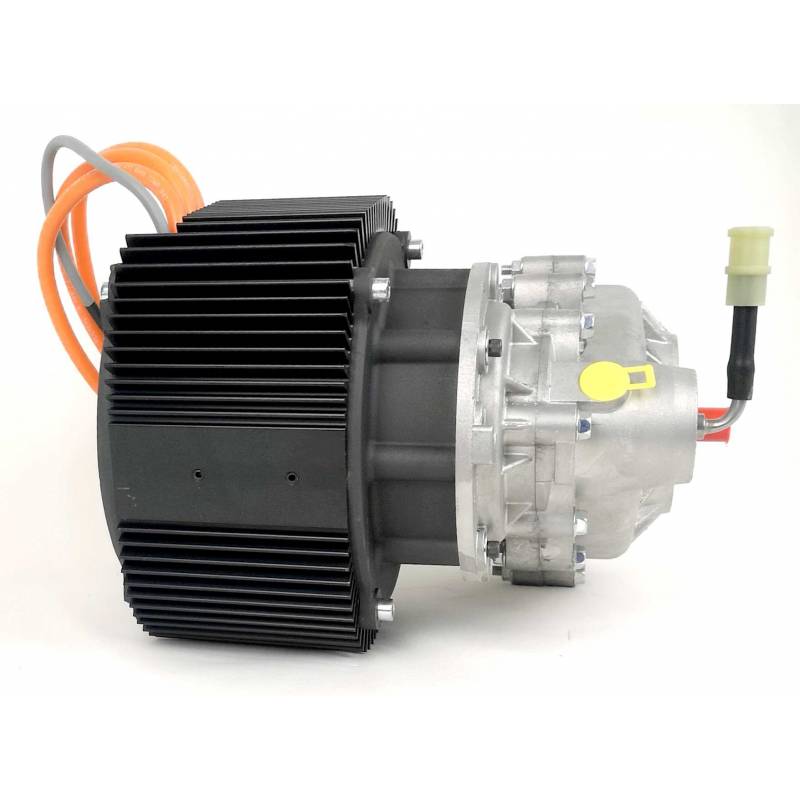

EVEA P14-10D motor / gearbox set

EVEA P14-10D complet drivetrain

Motor data :

- No brush maintenance, brushless
- Fully enclosed / Waterproof
- 3-phases, double stators, Y-connected
- Permanent Magnet Synchronus Motor
- Motor efficiency of 92% at 80 VDC.
- 5 pairs pole motor (10 magnets).
- Phase to Phase winding resistance is 0.027 Ohms.
- Phase to Phase winding inductor is 0.1 mH.
- Maximum recommended rotor speed is 8000 RPM (837,7 rad/s).
- Controller input voltage 48 à 144 VDC.
- Torque constant 0.20 Nm/Amp.
- Armature Inertia 960 Kg/cm²
- Rated power 13kW, peak 35kW (50hp).
- Rated current 160Arms
- Maximum current 600Arms during 1min
- Weight 21Kg
- Maximum torque 80Nm.
- Power supply cable 35mm², terminals 8mm eyelet lugs
- Temperature sensor KTY84-130
- Rotor sensor type Sin/Cos
- Maximum torque 70Nm.
- Air cooling (fully enclosed), waterproof.
- Temperature sensor KTY84-130
- Rotor sensor type Sin/Cos

Reducer / gearbox:

- Reduction 1:10 ratio
- Mechanical differencial integrated
- Lubrication by oil bath
- Weight 11Kg

This powertrain comply with controllers 48V, 72/80V and 96V :

- Sevcon Gen4 4865 et Gen4 8055
- Zapi BLE-3 PW 48V 650A, BLE-3 PW 80V 550A, BLE-4 80V 700A, BLE-4 96V 500A
- Curtis 1238 48V 550A

Can be use on light weight electric vehicles (quad, golf cart, agricultural machine, industrial machine)
