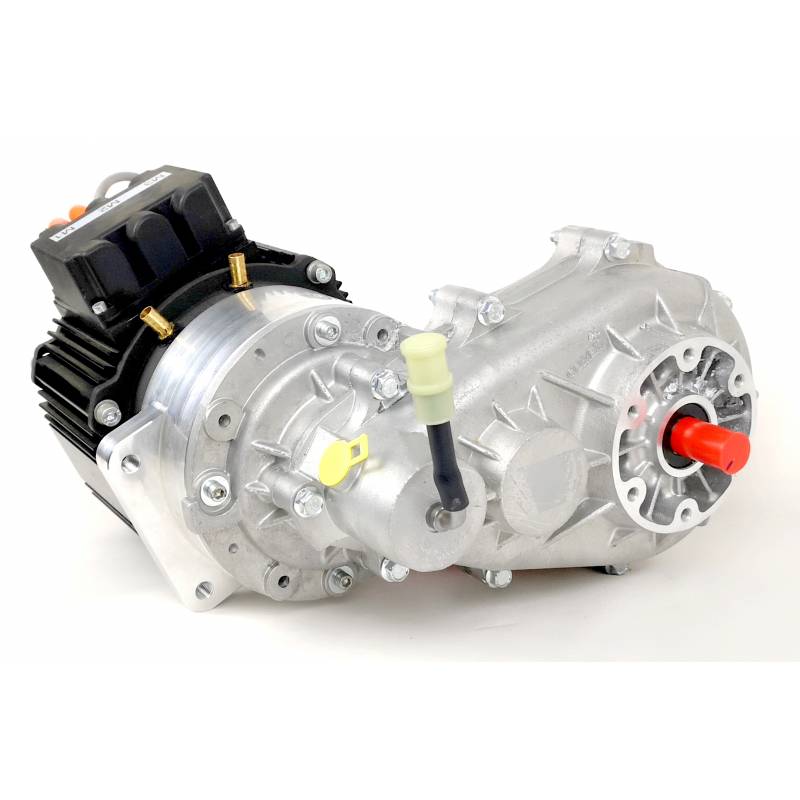

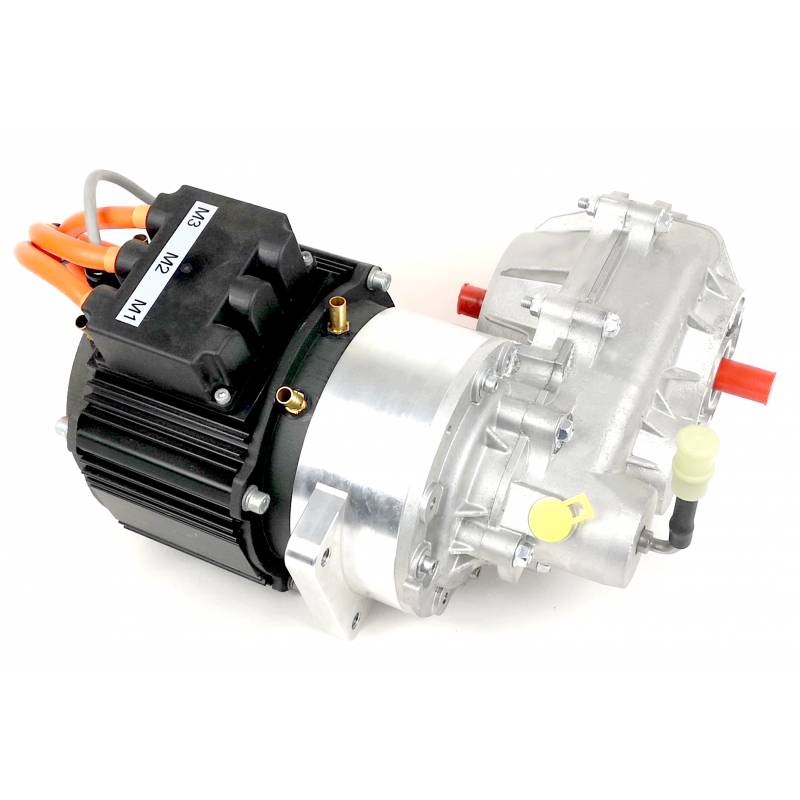

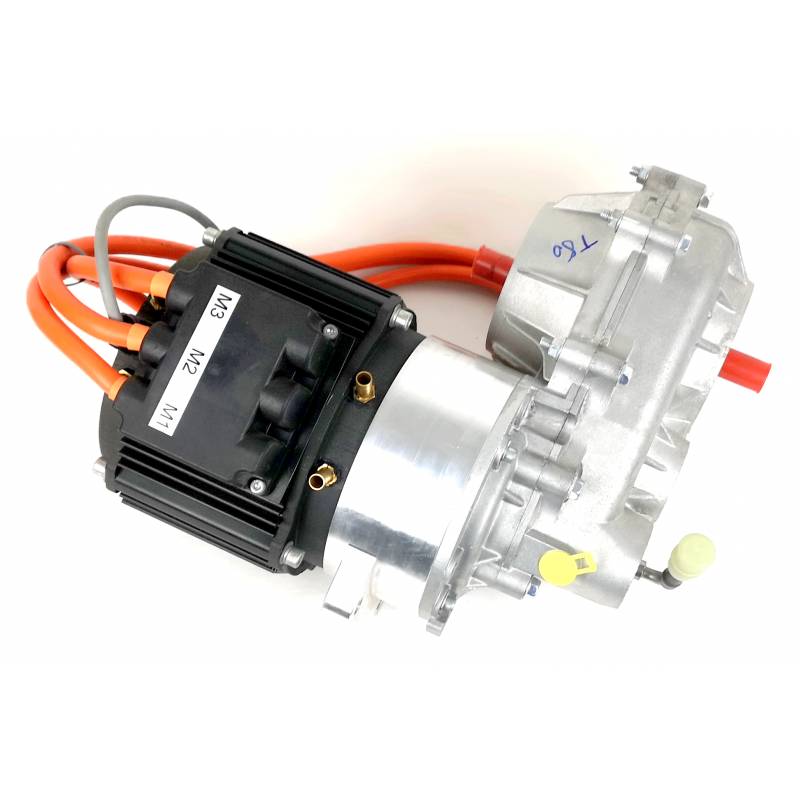

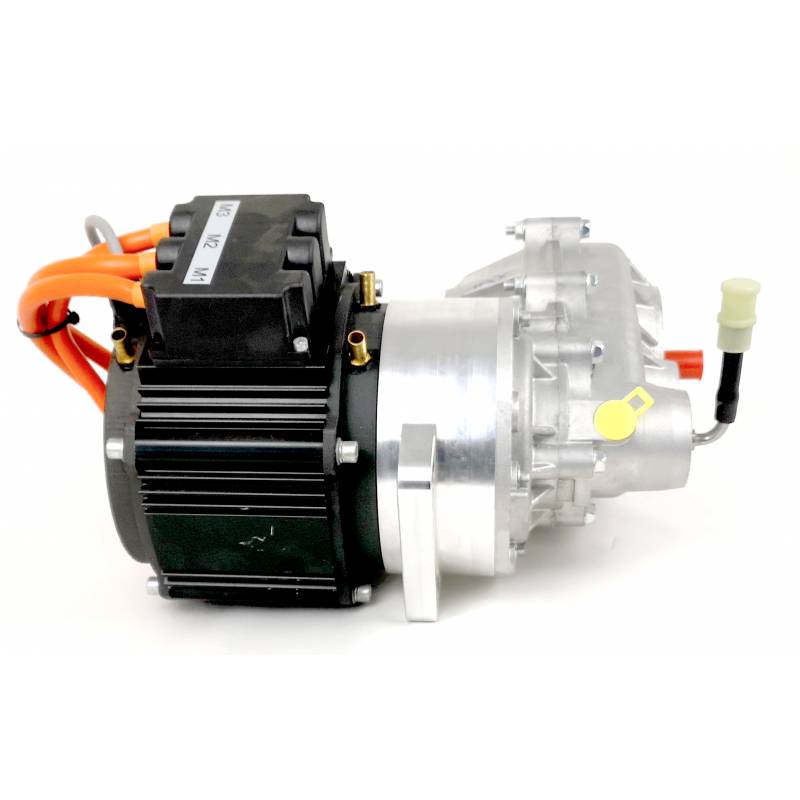

EVEA P12-10D motor / gearbox set
1000-207
New product
1 242,00 € Tax excluded
EVEA P12-10D complet drivetrain, include a 12kW (25kW max, 60Nm) electric motor + 1:10 gearbox with mechanical differencial integrated. Can be use on light electric véhicles (<1200Kg).
EVEA P12-10D complet drivetrain
Motor data :
- No brush maintenance, brushless
- Fully enclosed / Waterproof
- 3-phases, double stators, Y-connected
- Permanent Magnet Synchronus Motor
- Motor efficiency of 92% at 80 VDC.
- 4 pairs pole motor (8 magnets).
- Maximum recommended rotor speed is 5500 RPM (837,7 rad/s).
- Controller input voltage 48 à 144 VDC.
- Torque constant 0.13 Nm/Amp.
- Rated power 12kW, peak 25kW (32hp).
- Rated current 180Arms
- Maximum current 600Arms during 1min
- Weight 21Kg
- Maximum torque 60Nm.
- Power supply cable 35mm², terminals 8mm eyelet lugs
- Temperature sensor KTY84-130
- Rotor sensor type Sin/Cos
- Liquid cooling (fully enclosed), waterproof.
- Temperature sensor KTY84-130
- Rotor sensor type Sin/Cos
Reducer / gearbox:
- Reduction 1:10 ratio
- Mechanical differencial integrated
- Lubrication by oil bath
- Weight 11Kg
This powertrain comply with controllers 48V, 72/80V and 96V :
- Sevcon Gen4 4865 et Gen4 8055
- Zapi BLE-3 PW 48V 650A, BLE-3 PW 80V 550A, BLE-4 80V 700A, BLE-4 96V 500A
- Curtis 1238 48V 550A
Can be use on light weight electric vehicles (quad, golf cart, agricultural machine, industrial machine)
