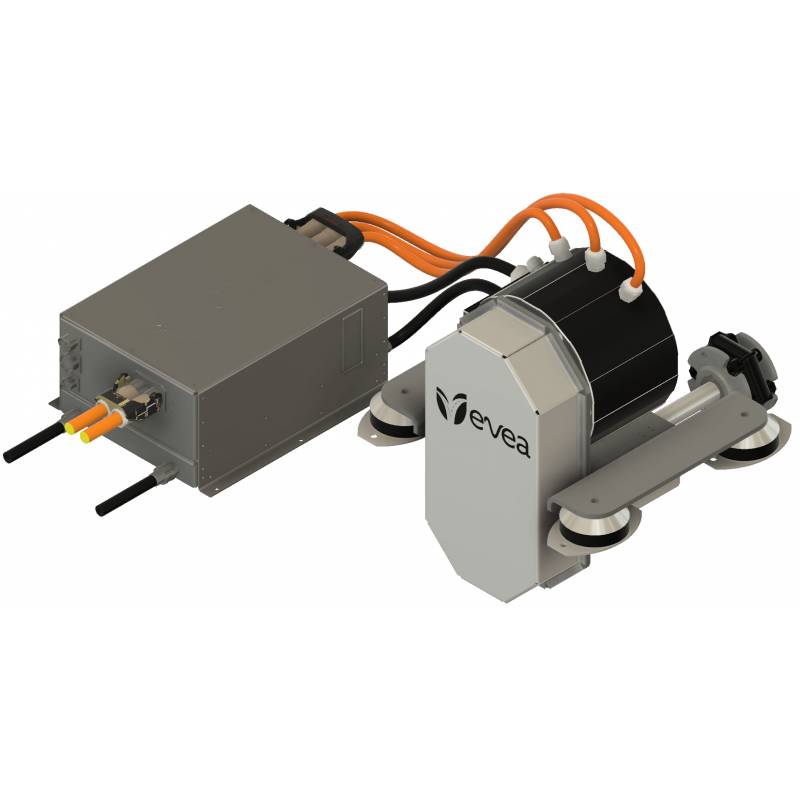

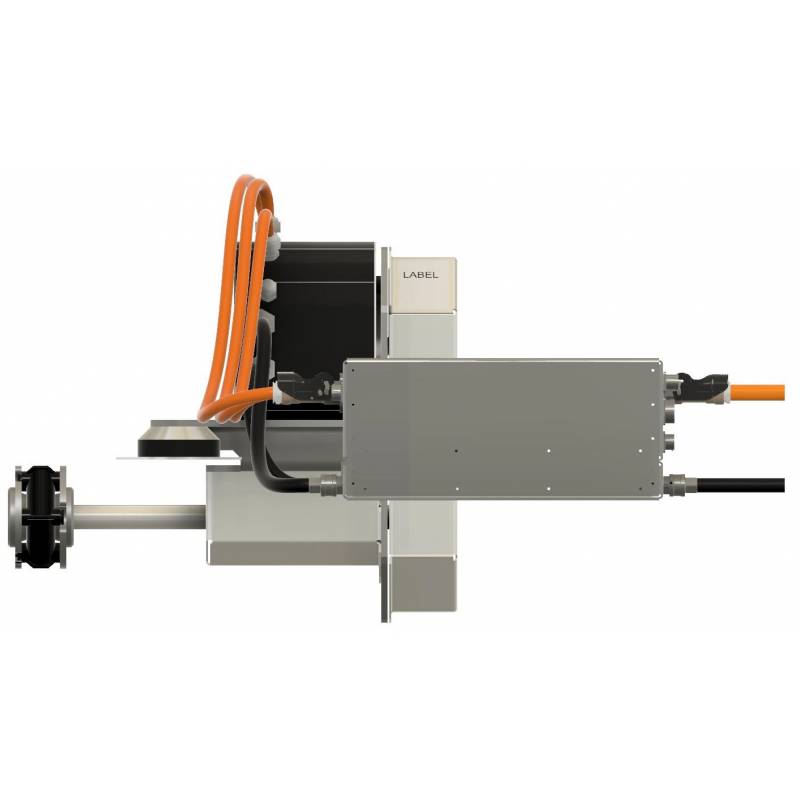

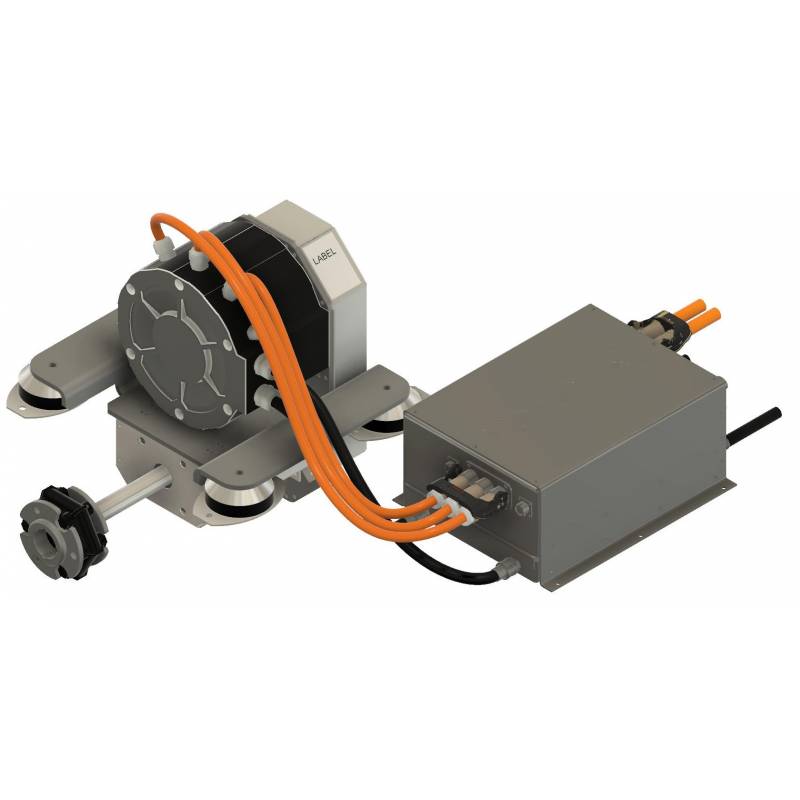

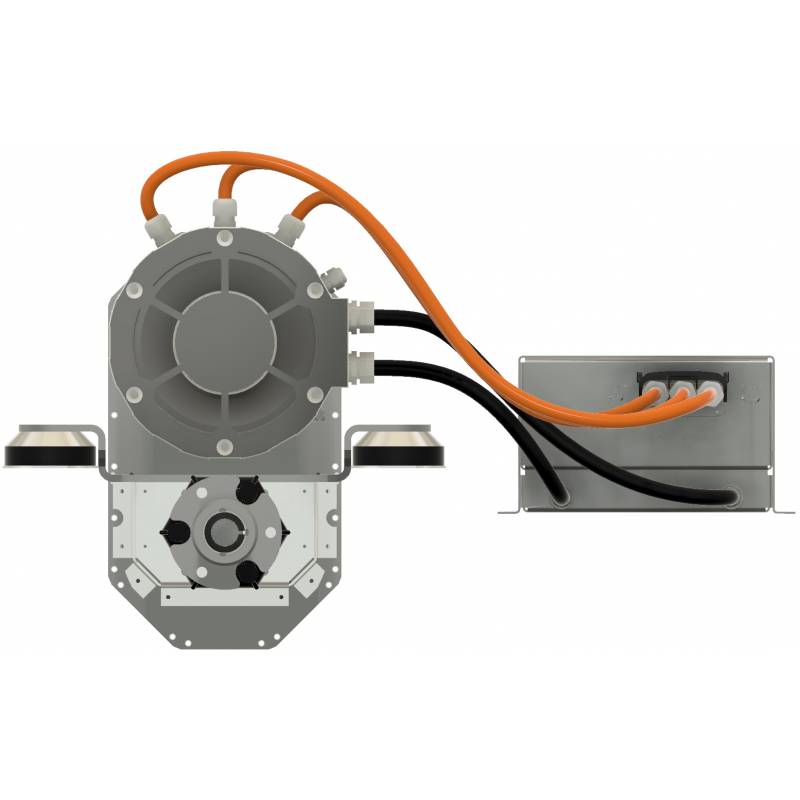

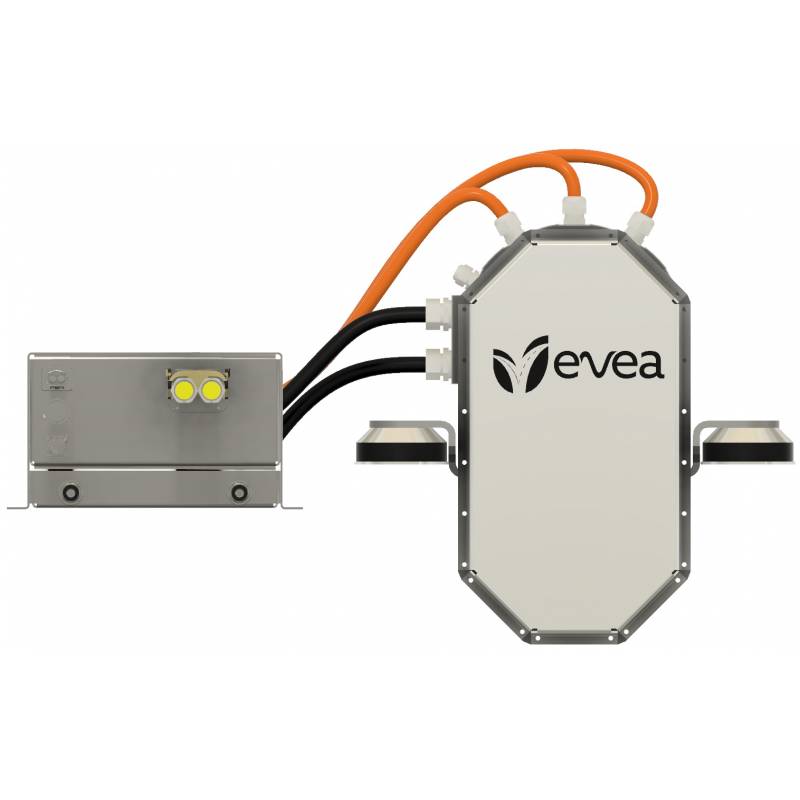

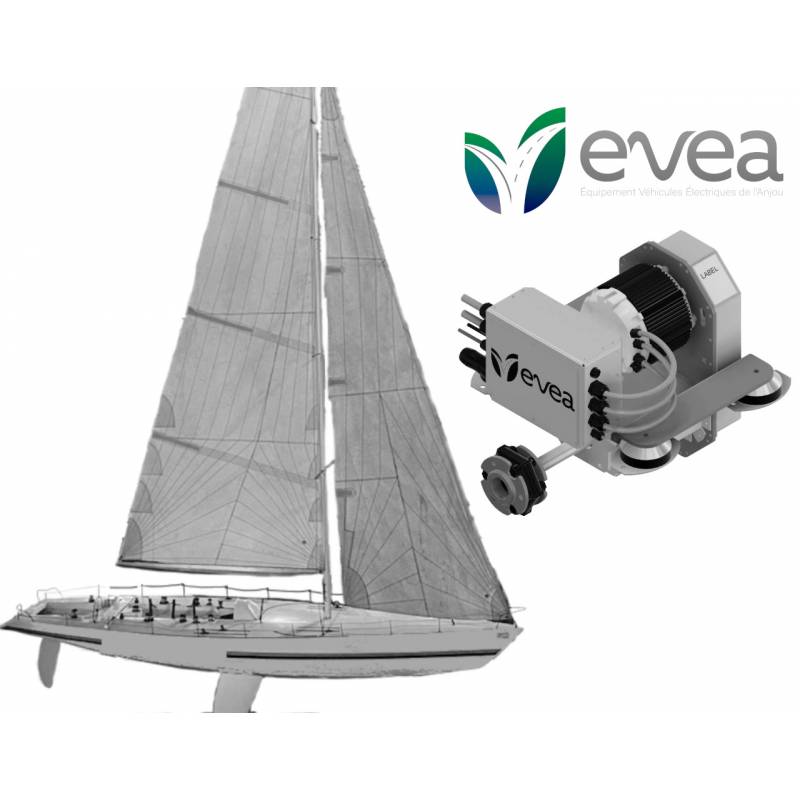

Boat electrification pack, P18LC 96V 18kW - inboard

Power : 18kW continuous

Sealing : Yes, nautic applications

Finishing : Aluminium powder coated, black

Cooling : Liquid

Electric

Management

PowerBox : the PowerBox contains all the electrical elements necessary for motor management (controller, line contactor, fuses, voltage converter)

Program: Standard, power limit to 18kW

Cooling : Liquid

Voltage : 96V continuous (lead or lithium batteries)

Cables : 50mm², orange, 3m length

House &

Accessories

House battery charger : yes, included in PowerBox Mini. This system is designed to replace the thermal engine alternator. It is used to supply the engine cooling water pump to recharge the service batteries or to supply the instrumentation during navigation.

Voltage : 13,4V (option 26,8V)

Power : 300W

Reduction ratio: 1:4, belt transmission (other ratios are available depending on the maximum propeller speed)

Propeller shaft speed : 1000 tr/min

Coupling : Elastic on the original propeller shaft, through taper bush or split half couplings (on request)

Materials : Stainless 304 / Aluminium

Bearing : Waterproof, Dustproof

Pieds : Plots antivibratoires, réglables en hauteur (0 à +30mm)

Liquid : Self-priming pump (option)

Flow rate : 10l/min minimum

Pressure : 4 bars maximum

Coolant : Filtered clear water, filtered sea water, glycol closed circuit with heat exchanger (recommanded)

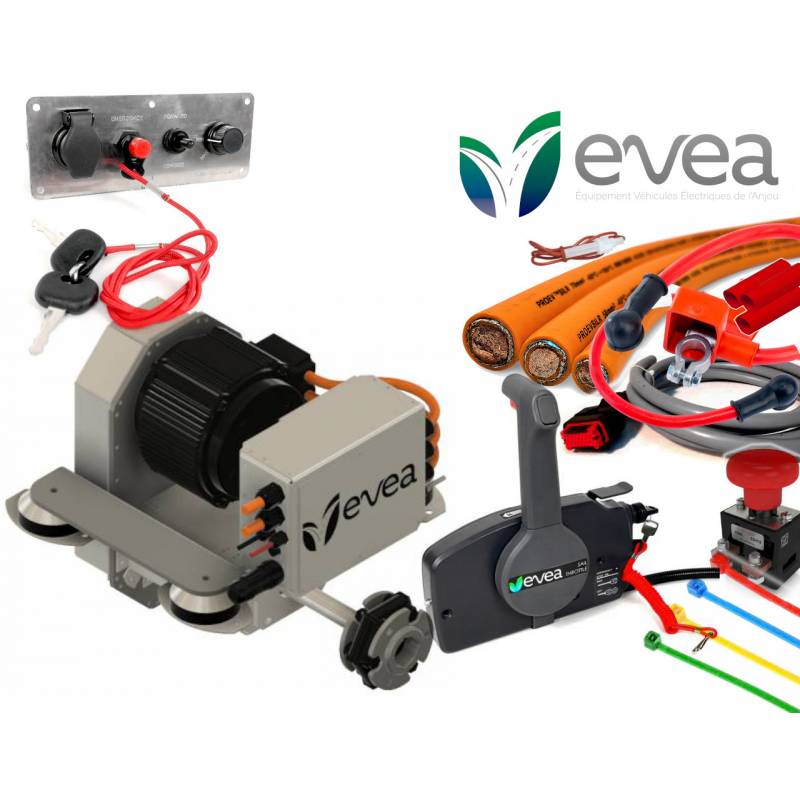

User Interface

- Option 1 : 4-way control panel (key switch, fork circuit breaker, forward / neutral / reverse switch), ref: CMD-PNL-4W: CMD-PNL-4W

This option allows the user to have a piloting station with all the controls grouped together at a remote point, for easy and quick integration into an existing piloting station.

- Option 2 : 2-way control panel (key switch, fork circuit breaker) + twist throttle + remote forward / neutral / reverse switch, ref : CMD-PNL-2W-TW-SW

This option allows you to have a two-part piloting station:
a) 2-way control panel enables the motorization to be powered up using the ignition key and the fork circuit breaker
b) Forward / neutral / reverse motor rotation and throttle control by handle

This option is particularly suitable for piloting with the tiller handle thanks to the twist throttle (diam. 22mm) and to the forward / neutral / rear switch (diam. 22mm)

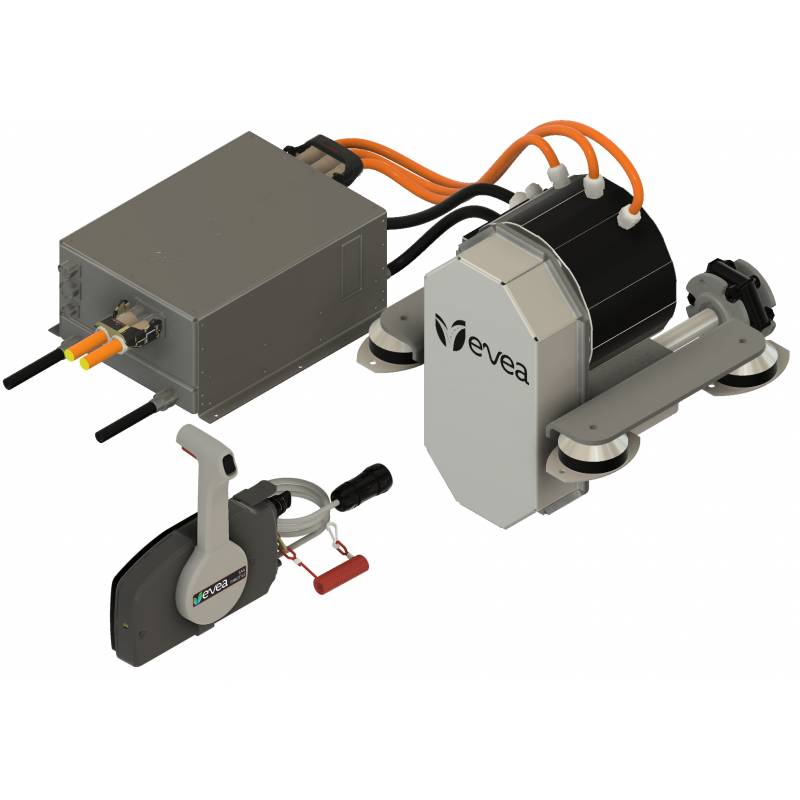

- Option 3 : Remote control box, fully integrated and more ergonomic than option 1, ref: BOAT-THRTL-V2, see product description.

- Option 4 : 2-way control panel (key switch, fork circuit breaker) + throttle unit + remote reverser unit, ref : CMD-PNL-2W-PB6-THRTL-SLCTR

This option is particularly suitable if you want to keep the original throtlle lever and  cable control. This option preserves the aesthetics of the original piloting station of the boat. Then, the movement of the two cables is transformed into electrical signals by this two boxes (throttle box & inverter control box)
