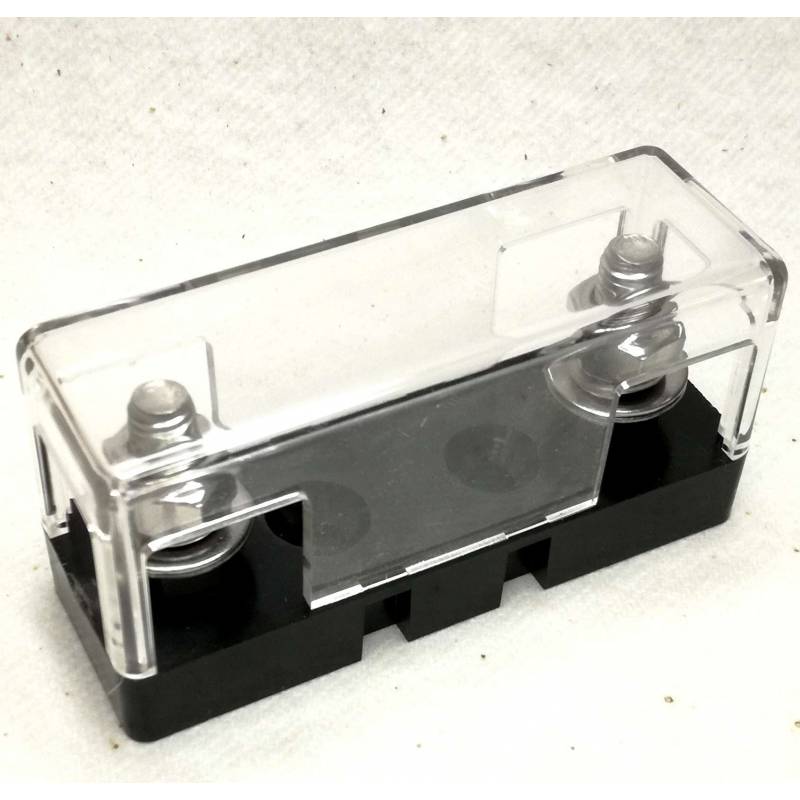

Fuse holder DIN43560 with cover
510-001
New product
13,72 € Tax excluded
Livraison : 3 à 6 semaines
- Fuse holder DIN43560 R1025 with protective cover
- 60mm fuse screw spacing
- Current up to 500A
- Voltage up to 100V
- M8 fuse fixing screw
- External holder size with cover : L = 88mm * l = 30mm * h = 43mm
- Fuse holder fixing by 2 holes, screw FHC M6, spacing 25mm.
This product is no longer in stock
Availability date:
- Send to a friend
Send to a friend
Fuse holder DIN43560 with cover
- Fuse holder DIN43560 R1025 with protective cover
- 60mm fuse screw spacing
- Current up to 500A
- Voltage up to 100V
- M8 fuse fixing screw
- External holder size with cover : L = 88mm * l = 30mm * h = 43mm
- Fuse holder fixing by 2 holes, screw FHC M6, spacing 25mm.
