Automotive fuse 32V ATO type

Availability date:

• Send to a friend

  Send to a friend

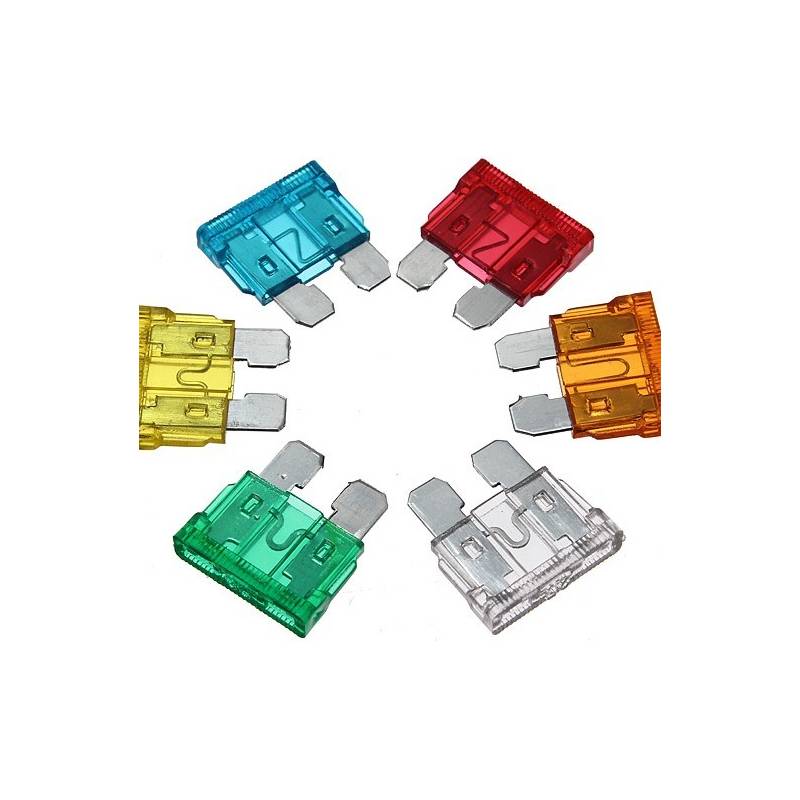

  Automotive fuse 32V ATO type

  • ATO / ATC Automotive Fuses
  • Fuse with rectangular tongue
  • Fast acting and resistant to corrosion
  • Excellent resistance to heat and mechanical shock
  • Rated voltage 32VDC Current range from 1A to 32A
  • Cutoff capacity 1000A to 32V

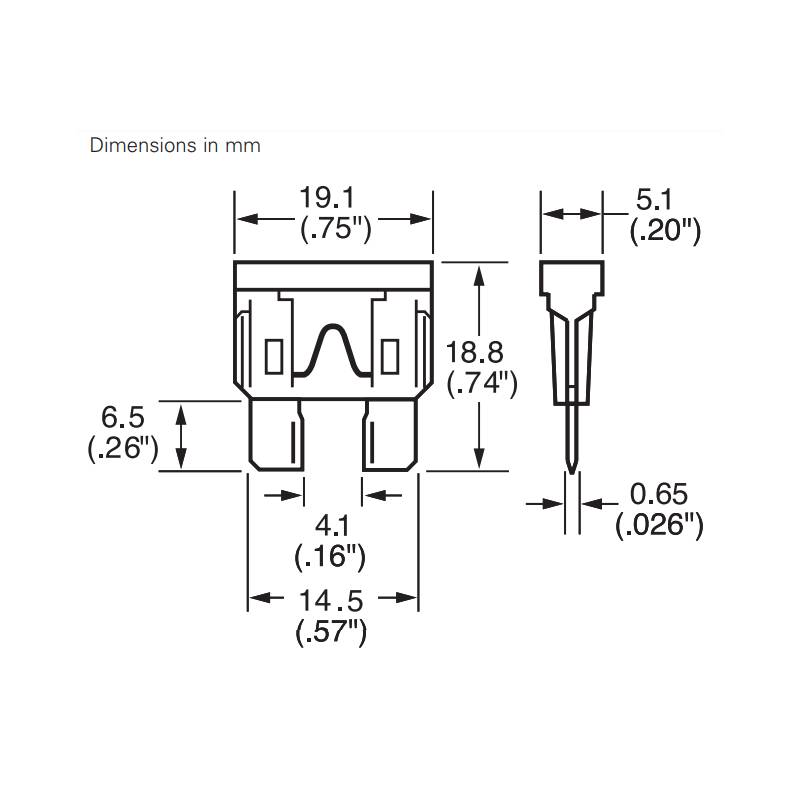

  • Dimensions 5.1mm x 19.1mm x 18.8mm

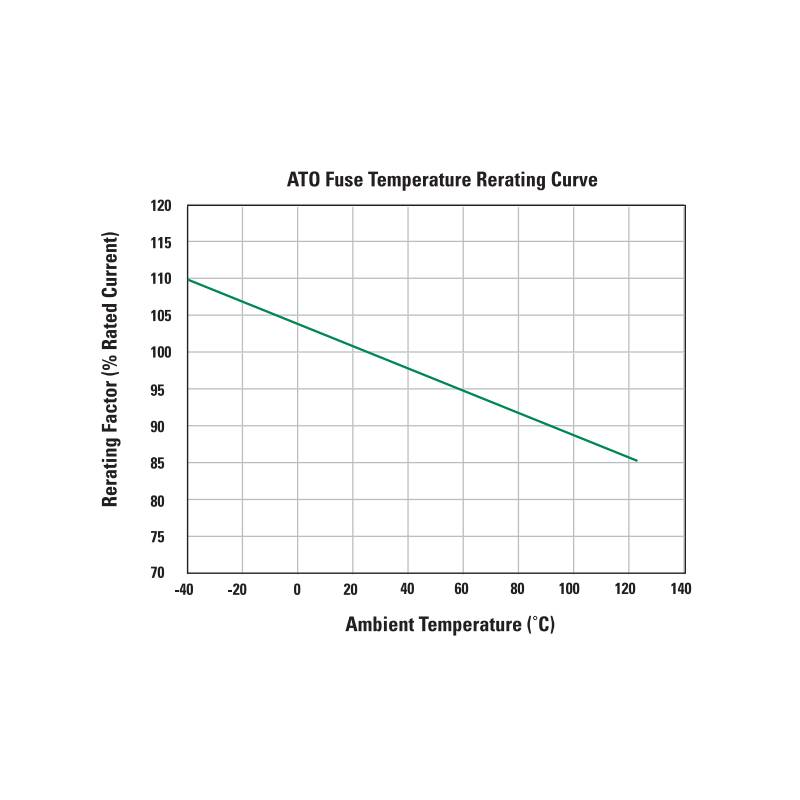

  • Operating temperature -55 to + 125
  • Standards SO 8820, SAE J 1284, DIN 72581, UL 248, RoHS
