Sale!
Liquid cooling heatsink for Zapi ACE2 - BLE2
Previous Next

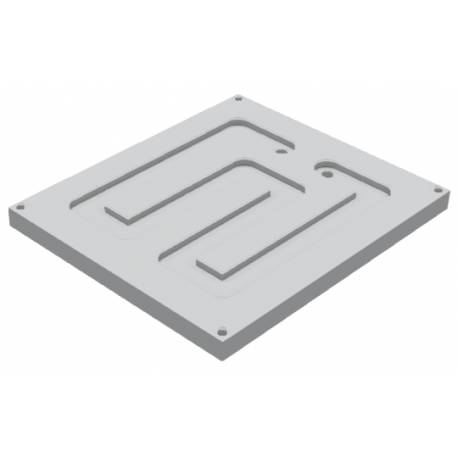

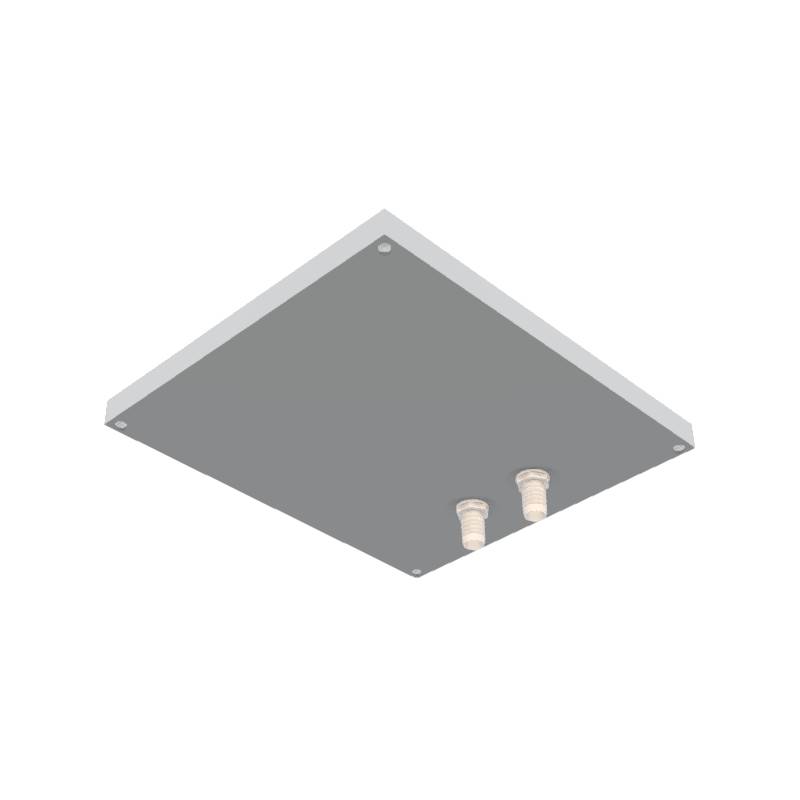

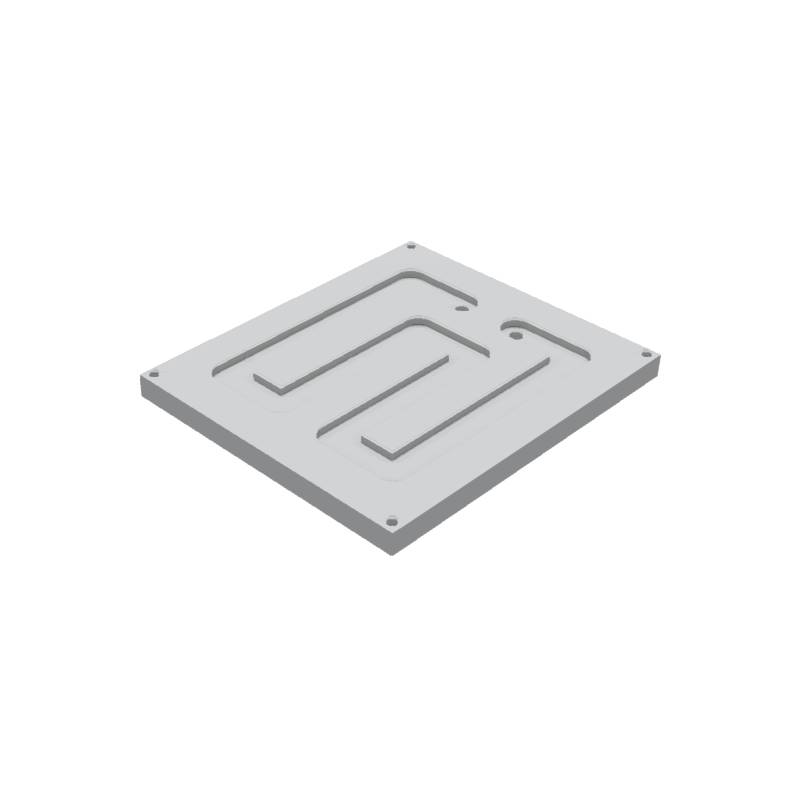

Liquid cooling heatsink for Zapi Zapi ACE-0, BLE-0, ACE-2, BLE-2

240-054-LC

New product

129,28 € Tax excluded

Livraison : 3 à 6 semaines
  • Heatsink with liquid cooling of heat for Zapi ACE2 Gen2 and BLE2 Gen2 controllers
  • Include Alimunium water plate + black caoutchouc join

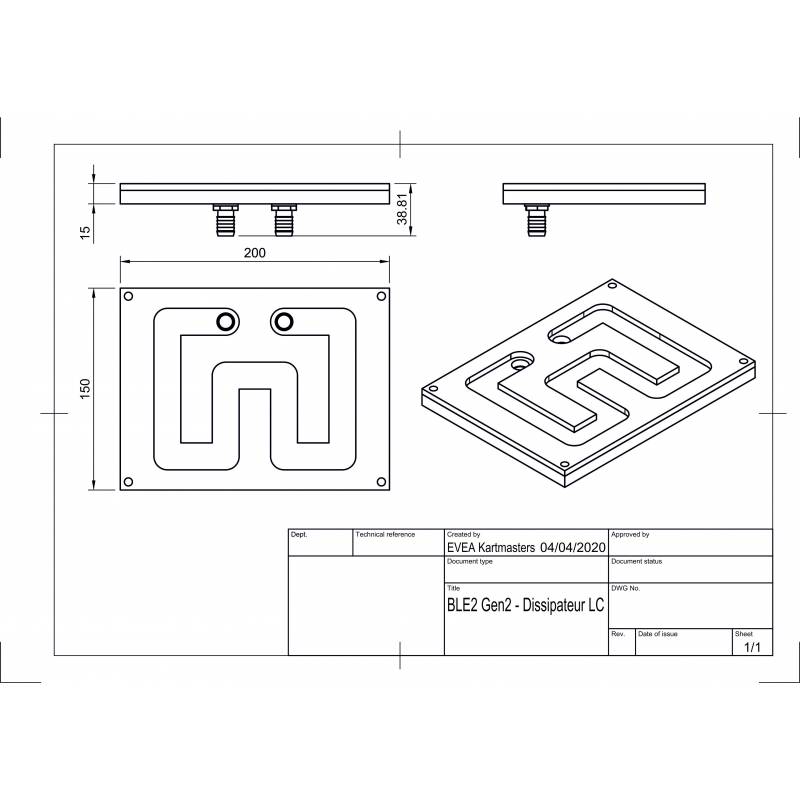

  • Dimentions 200 mm x 150 mm x 17 mm (without inlet/outlet barb)
  • 4-pass of 20mm x 5mm for liquid cold plate
  • Brass input / ouput barb for hose diameter : 10mm
  • Max recommanded liquid flow 10l/min
  • Thermal resistance 0,03°C/W

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

Liquid cooling heatsink for Zapi Zapi ACE-0, BLE-0, ACE-2, BLE-2

Liquid cooling heatsink for Zapi Zapi ACE-0, BLE-0, ACE-2, BLE-2

  • Heatsink with liquid cooling of heat for Zapi ACE2 Gen2 and BLE2 Gen2 controllers
  • Include Alimunium water plate + black caoutchouc join
  • Dimentions 200 mm x 150 mm x 17 mm (without inlet/outlet barb)
  • 4-pass of 20mm x 5mm for liquid cold plate
  • Brass input / ouput barb for hose diameter : 10mm
  • Max recommanded liquid flow 10l/min
  • Thermal resistance 0,03°C/W
