Sale!
Air cooling heatsink for Zapi ACE-3 - BLE-3
Previous Next

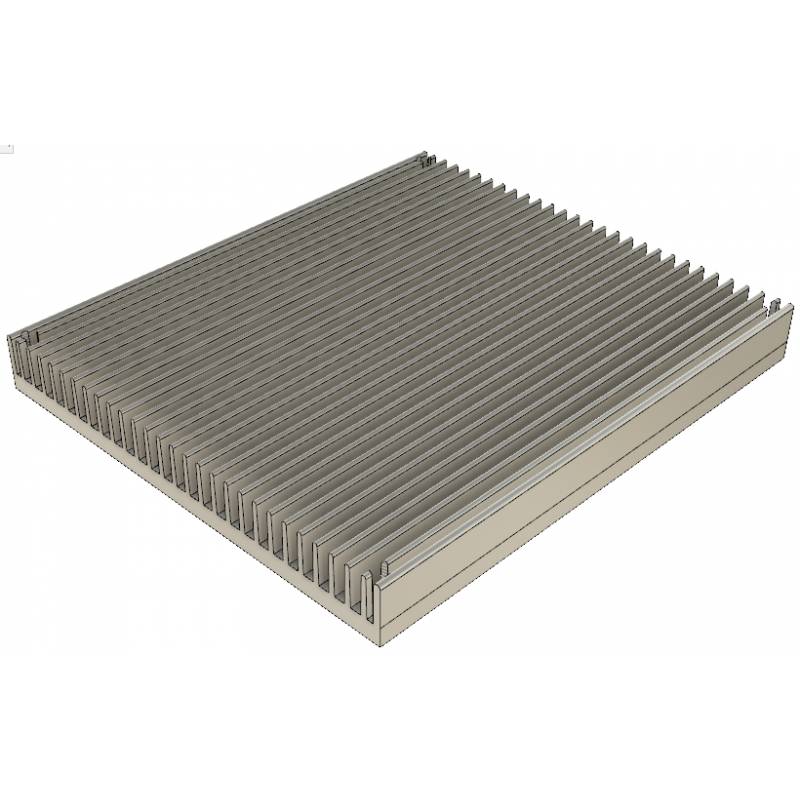

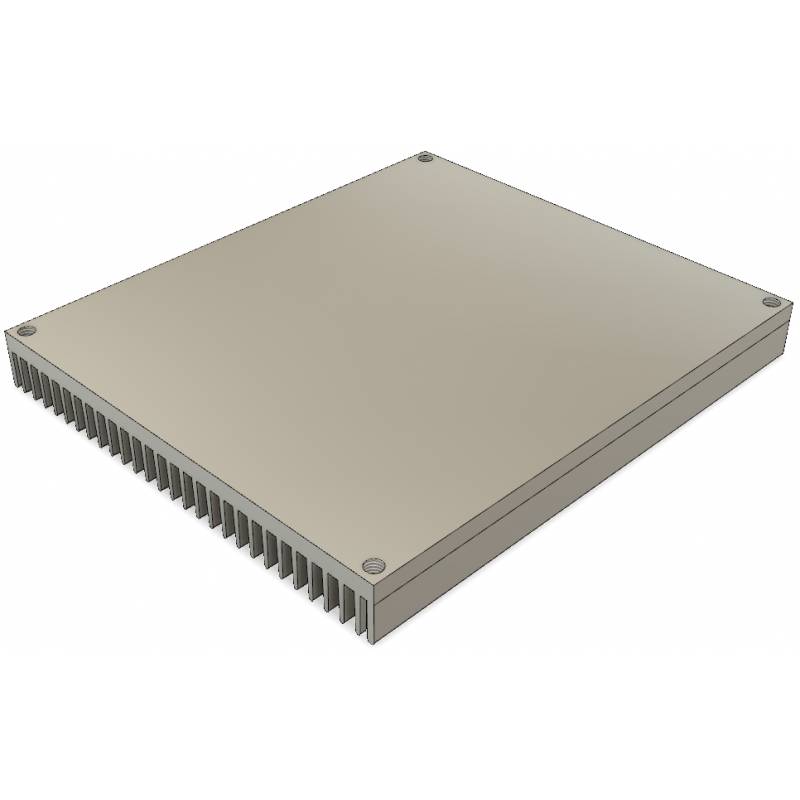

Air cooling heatsink for Zapi ACE-3 - BLE-3

240-055-AC

New product

83,27 € Tax excluded

Livraison : 3 à 6 semaines
  • Air cooling heatsink for Zapi Zapi ACE-3 and BLE-3 controllers
  • Include Alimunium heatsink + thermal paste

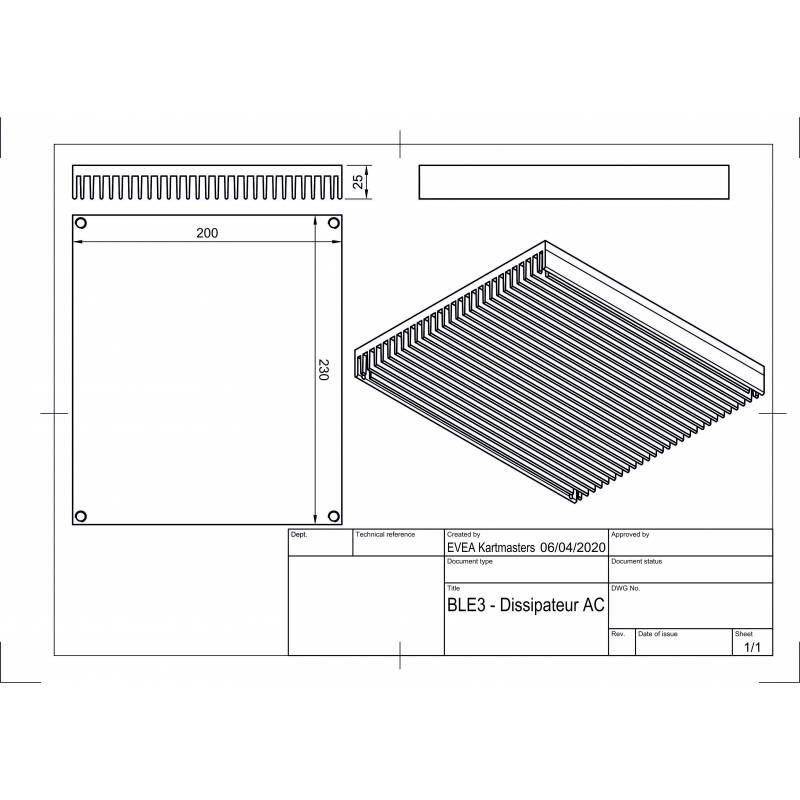

  • Dimentions 200 mm x 230 mm x 25 mm
  • 29-pass fins
  • Fixing the controller with 4 M8 screws
  • Thermal resistance 0,5°C/W

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

Air cooling heatsink for Zapi ACE-3 - BLE-3

Air cooling heatsink for Zapi ACE-3 - BLE-3

  • Air cooling heatsink for Zapi Zapi ACE-3 and BLE-3 controllers
  • Include Alimunium heatsink + thermal paste
  • Dimentions 200 mm x 230 mm x 25 mm
  • 29-pass fins
  • Fixing the controller with 4 M8 screws
  • Thermal resistance 0,5°C/W
