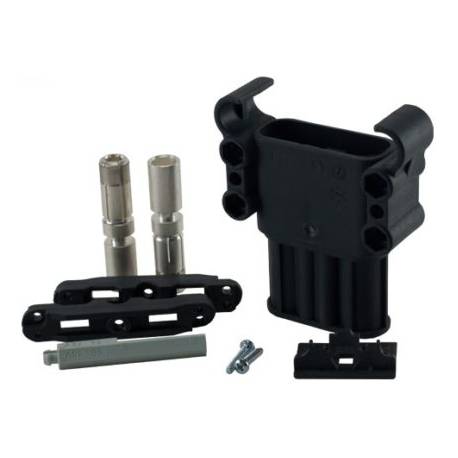

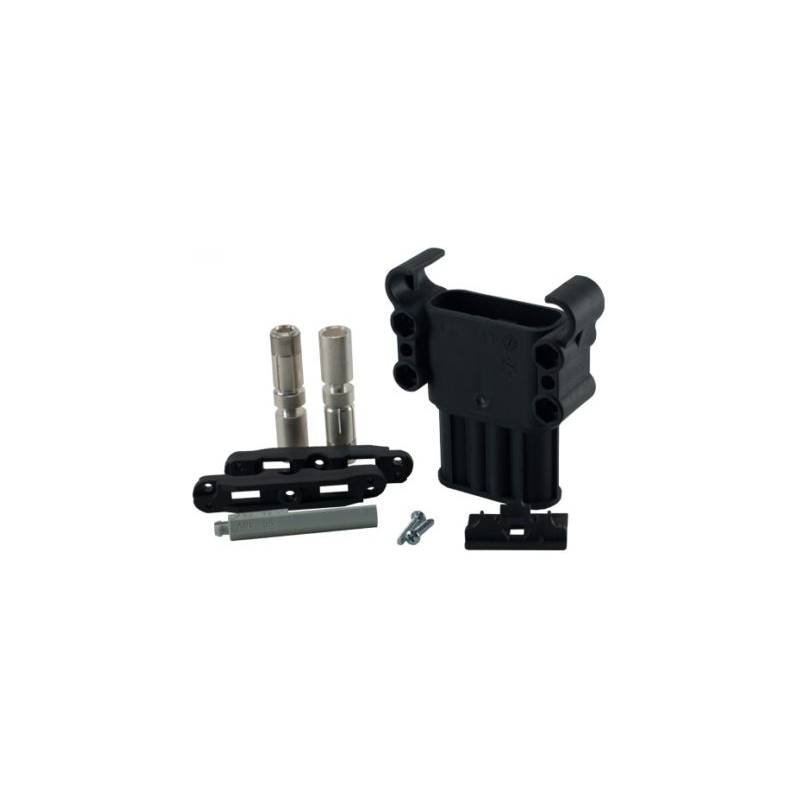

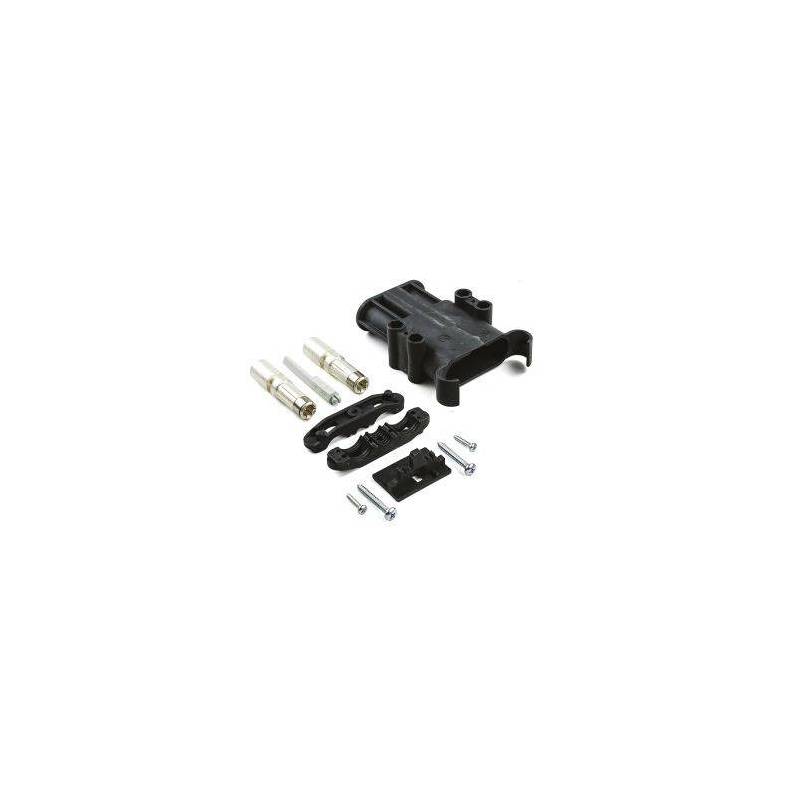

REMA EURO 320A female charge connector
519-030
New product
41,15 € Tax excluded
- REMA EURO 320A female EV charging connector
- Sold with 50mm² cable contacts
- Livré avec contacts pour câble 25mm²
- Heavy Duty Connector
- Panel mounting option
- Polarized key 24V, 36V, 48V, 72V, 80V and 96V
- Standard DIN 43589
- Option : plastic handle
- Option : auxiliary contacts L (10A)
- Option : auxiliary contacts S (2A)
The REMA Euro Battery Connectors (EBC) are expertly intended for usability and fuse an imaginative contact transporter to improve get together.
The EBC connectors incorporate the business standard 80, 160, and 320 sizes, all as per DIN 43589-1.
Plan and materials offer execution that meets or surpasses all the necessities of EN1175-1. All Materials picked are RoHS agreeable and chosen to guarantee long periods of unwavering quality in unfavorable mechanical situations.
These traits make the EBC DIN connectors the perfect decision for a wide scope of modern applications in Material Handling, Battery Charging, Utility Vehicles, Motive Power, and Sweepers/Scrubbers among numerous others.
Security Agency Approvals - UL, CSA, and EN1175-1:1998
Meets DIN 43589-1-Offers dimensional similarity for lodgings, contacts and air tubes.
Voltage Keying - EBC connectors offer keys for Dry-Cell, Wet-Cell, and Universal applications coded for 24/36/48/72/80 and 96 volts DC applications.
Durable Advanced Polymer Housings - Provide better obstruction than effect, corrosive and temperature boundaries.
Silver Plated Copper Contacts - Provide superb conductivity and prevalent mating cycle execution.

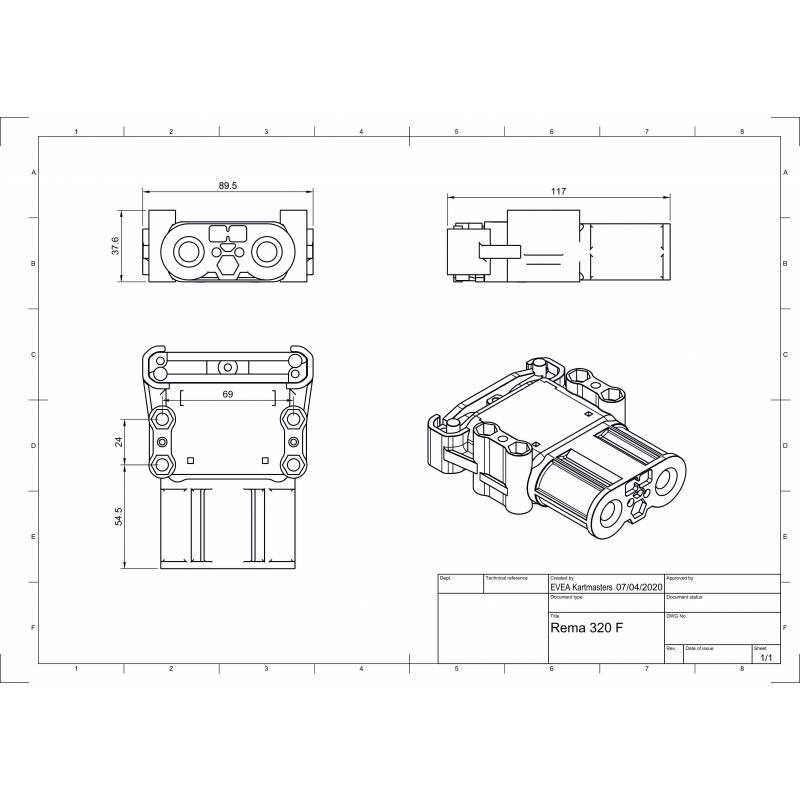

3D VIEW
