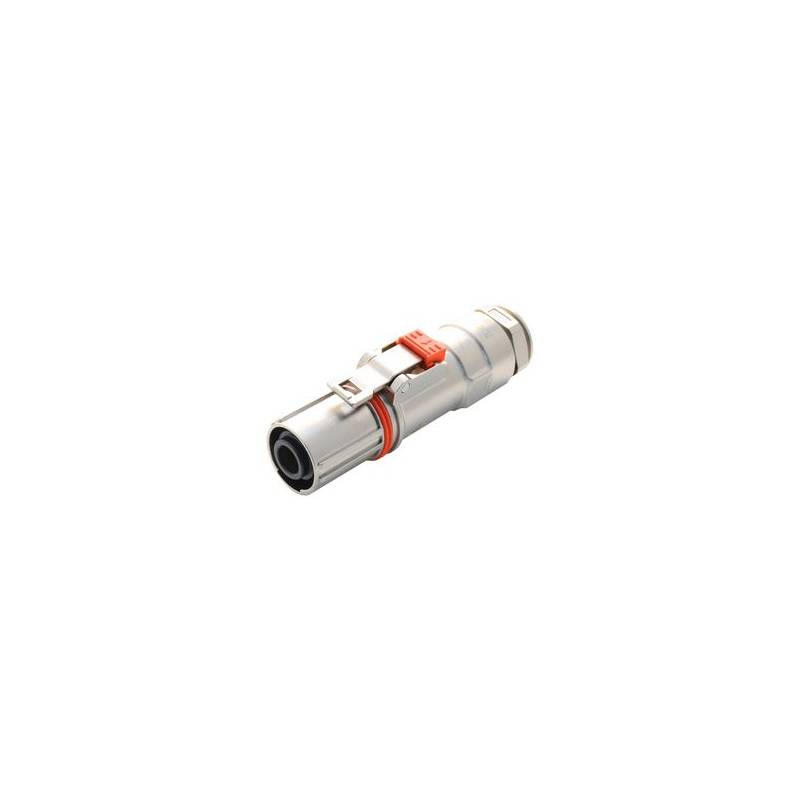

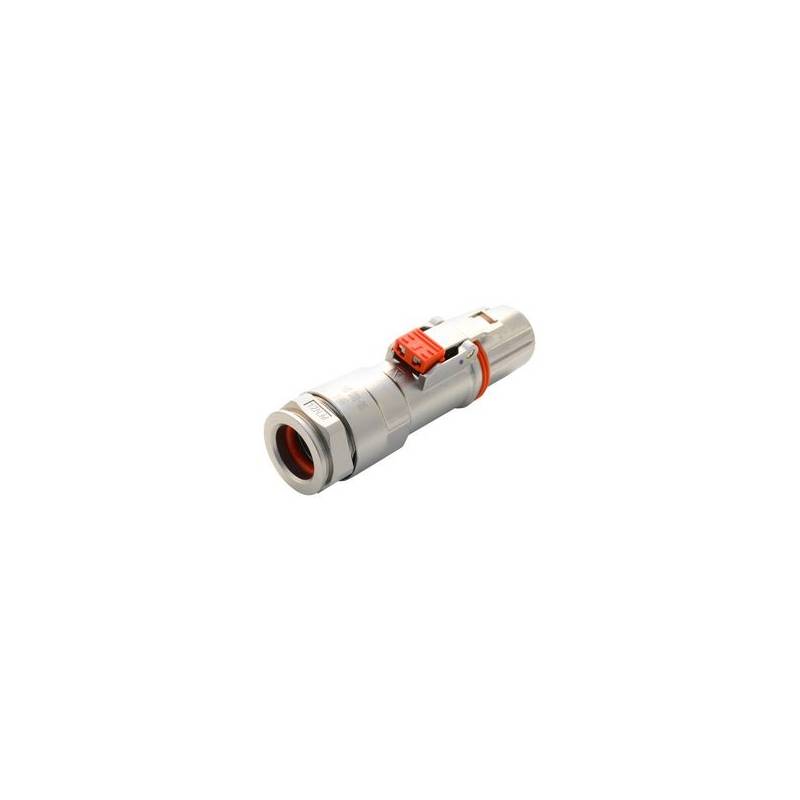

Amphenol PL 201 connector, female straight, code Y

EVEA offers you Amphenol PowerLok connectors. These smaller and hearty Amphenol PowerLok roundabout connectors are furnished with the most recent RADSOK® contact innovation, which makes them appropriate for applications up to 1000 V extending from 70A to 500A. The RADSOK® fitting and contact development makes perfect weight over a bigger bit of the contact surface for lower contact opposition. Notwithstanding a dependable RADSOK® association, this Amphenol PowerLok arrangement is additionally furnished with an optional lock to forestall inadvertent detachment. Amphenol PowerLok connectors are RoHS agreeable, cup evidence and seal to IP67 when mated. Amphenol PowerLok connectors are perfect for use in power dispersion and vitality stockpiling, just as for applications in electric and crossover electric vehicles.

The PowerLok arrangement is a minimal and economical metal shell interconnect arrangement utilizing RADSOK® contact innovation for EV and half breed transportation applications. Up to 1000 V from 70A to 500A with HVIL, 360 ° protecting, ecological fixing, keying, designs at right and right points and up to 3 force circuits. Appropriate for links from 16mm2 to 150mm2 with and without protecting.

Available in assembled and overmolded versions.

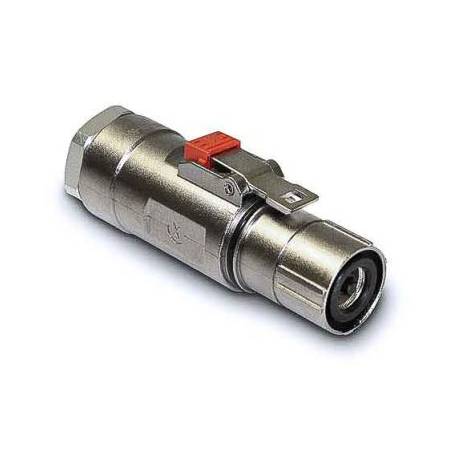

Ref Amphenol: PL18Y-201-25 (for 25mm² cables) or PL18Y-201-35 (for 35mm² cables)

Please note that supply times for this product may be long, please contact us before ordering.
