Anderson SB50 connector, 12V to 80V

New product

9,18 € Tax excluded

Livraison : 1 à 3 semaines

Anderson SB50 connector, equivalent CB50, SB50, S50

  • Intensive use for quick disconnection of the charger / batteries

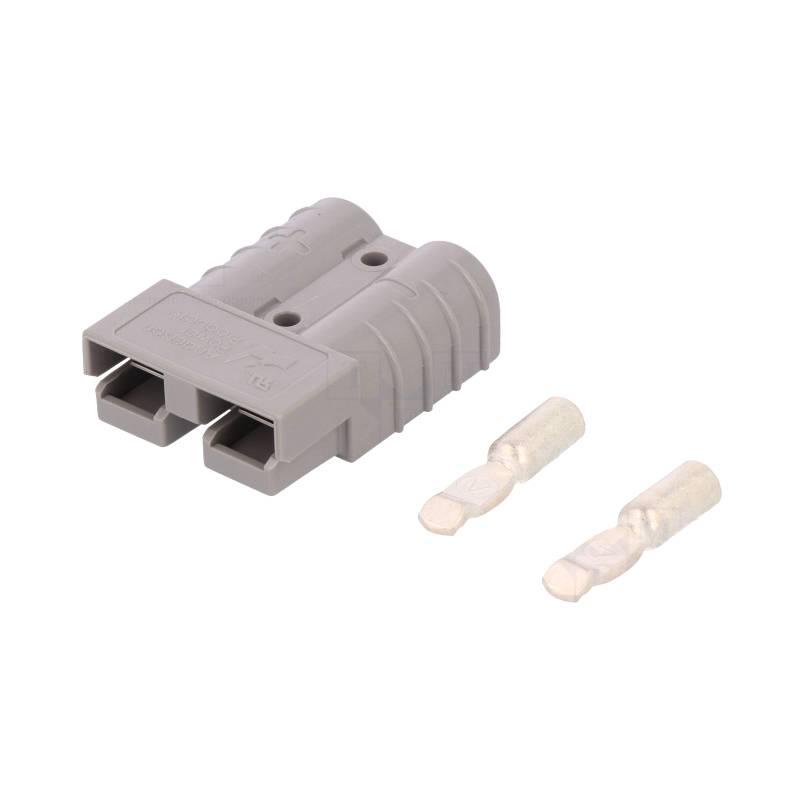

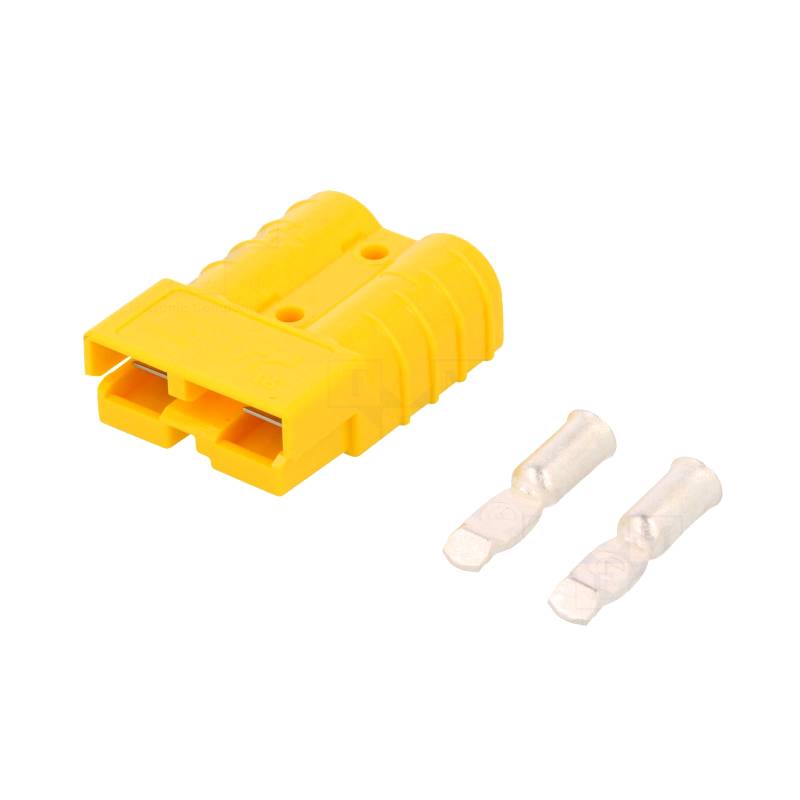

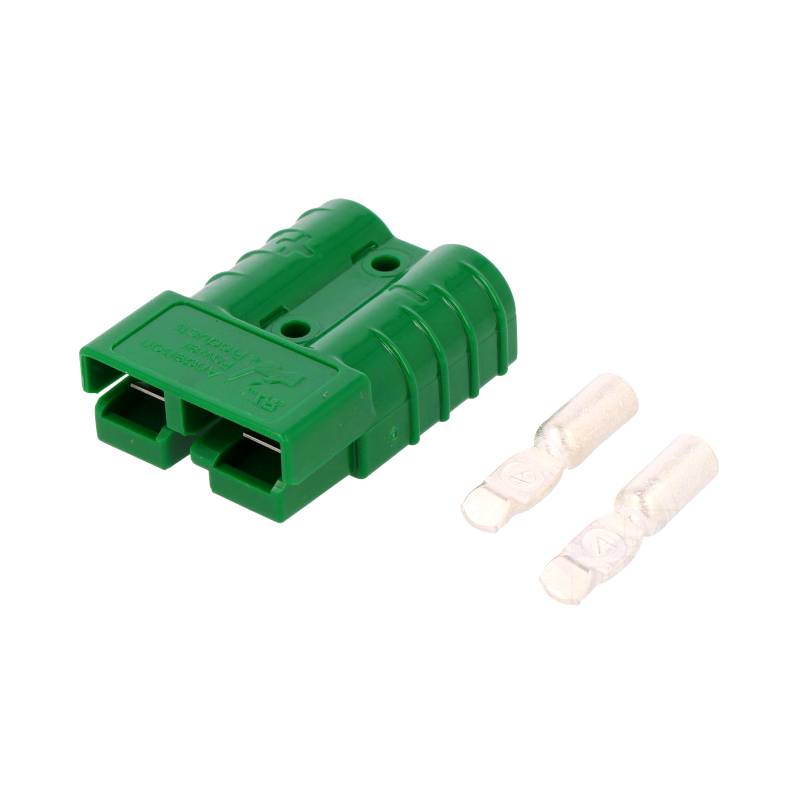

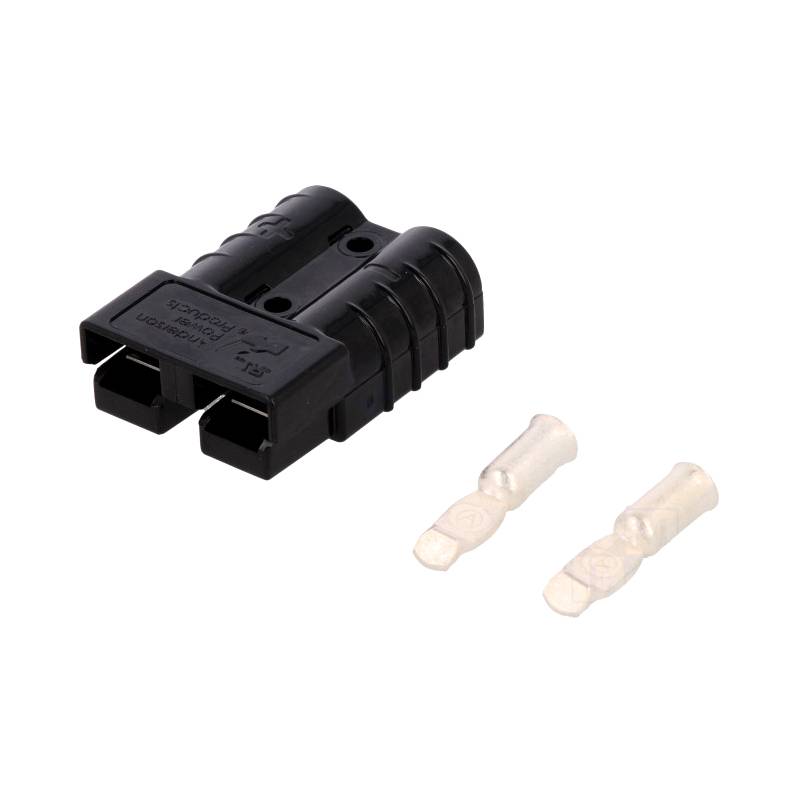

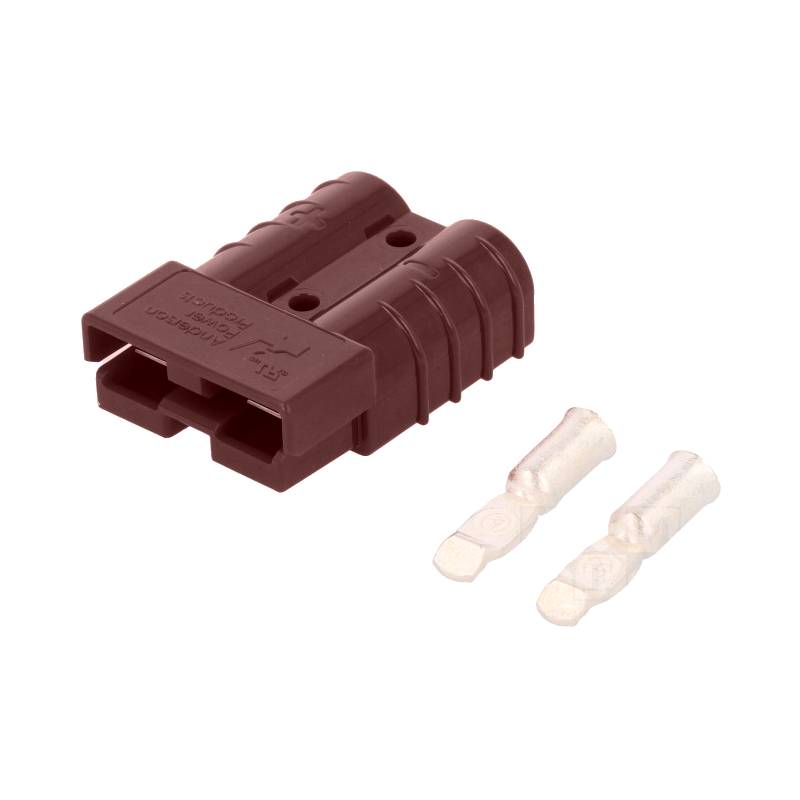

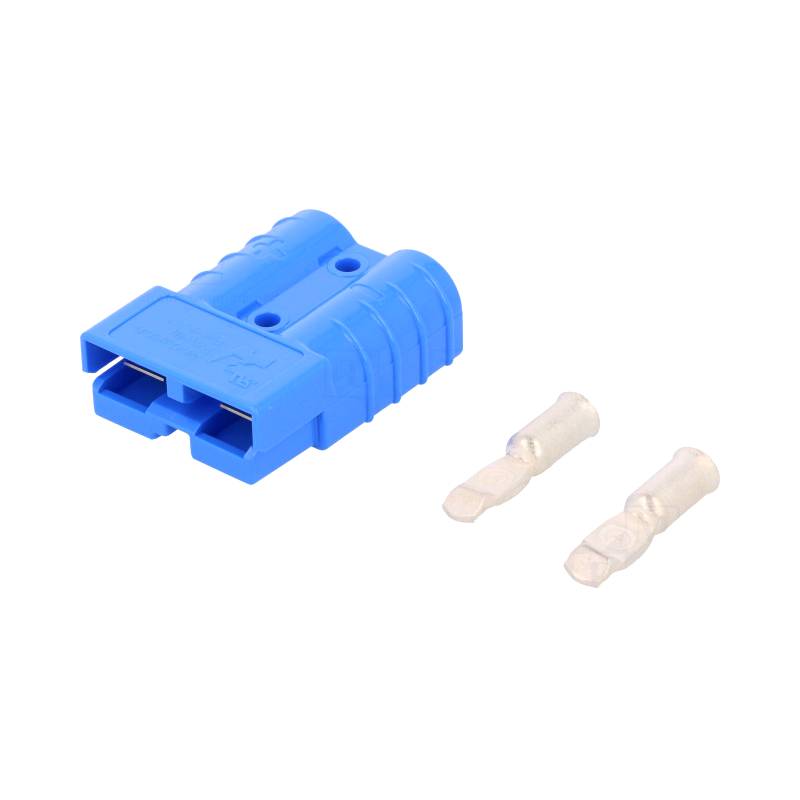

  • Composed in 1 case + 2 contacts.
  • Durable polycarbonate case
  • Silver plated copper contacts, crimp or solder
  • Hermaphrodite connector
  • Intensity 50A, cables: 16mm²

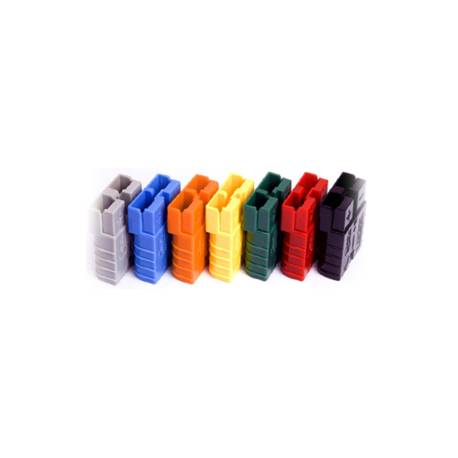

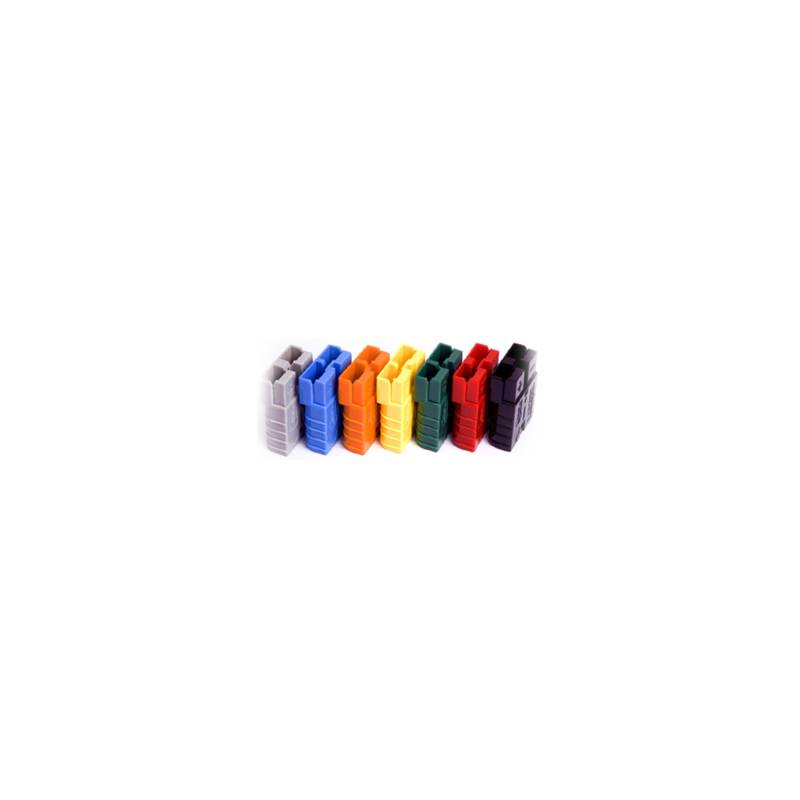

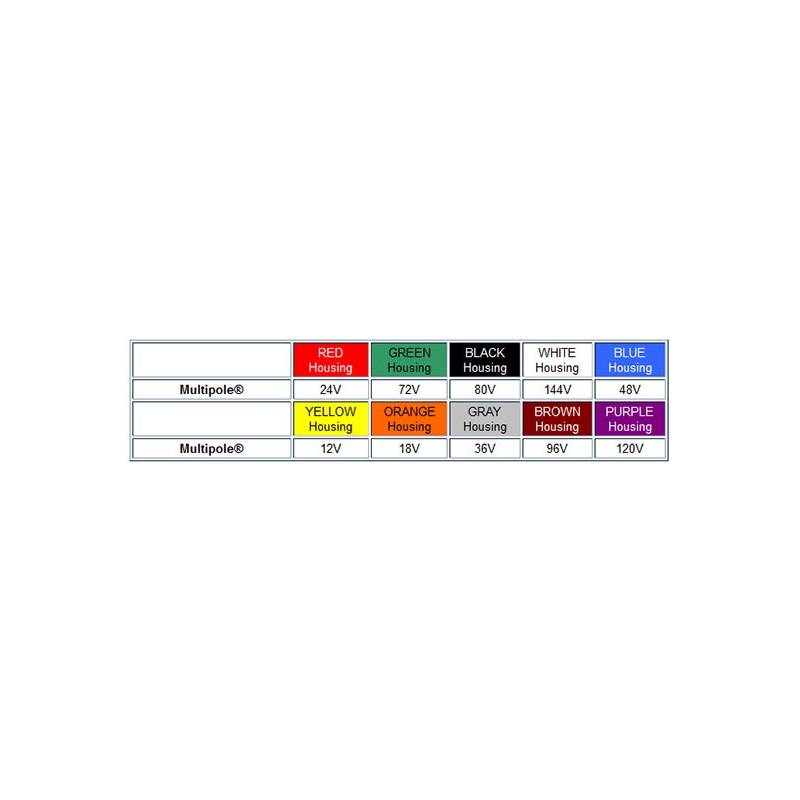

  • Color code and mechanical keying
  • Available in voltage from 12V to 80V

Based off the plan spearheaded by Anderson in 1953, the two post SB® connectors set the standard for DC power dissemination and battery associations. SB connectors highlight a tough one piece plastic lodging utilizing hardened steel springs to hold the contacts and make the "contact power" that gives amazingly low obstruction empowering more noteworthy electrical proficiency.

The SB connectors are additionally genderless (flip one 180 degrees and they will mate to one another) decreasing the client's bill of materials and giving more noteworthy economies of scale when buying. The SB arrangement of connectors extend in size from SB50 to the SB350. Every family size offers shading coded, precisely keyed lodgings intended to forestall both outwardly and genuinely cross-mating gadgets with various voltages. All the connectors are UL evaluated to 600 volts so the keys and hues are only identifiers to forestall mishaps. Contacts are generally Silver plated to limit electrical opposition while offering preeminent sturdiness and unwavering quality.

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

Anderson SB50 connector, 12V to 80V

Anderson SB50 connector, 12V to 80V

Anderson SB50 connector, equivalent CB50, SB50, S50

  • Intensive use for quick disconnection of the charger / batteries
  • Composed in 1 case + 2 contacts.
  • Durable polycarbonate case
  • Silver plated copper contacts, crimp or solder
  • Hermaphrodite connector
  • Intensity 50A, cables: 16mm²
  • Color code and mechanical keying
  • Available in voltage from 12V to 80V

SB50-connector

Documentation of the SB50 connectors

Download (1.08M)

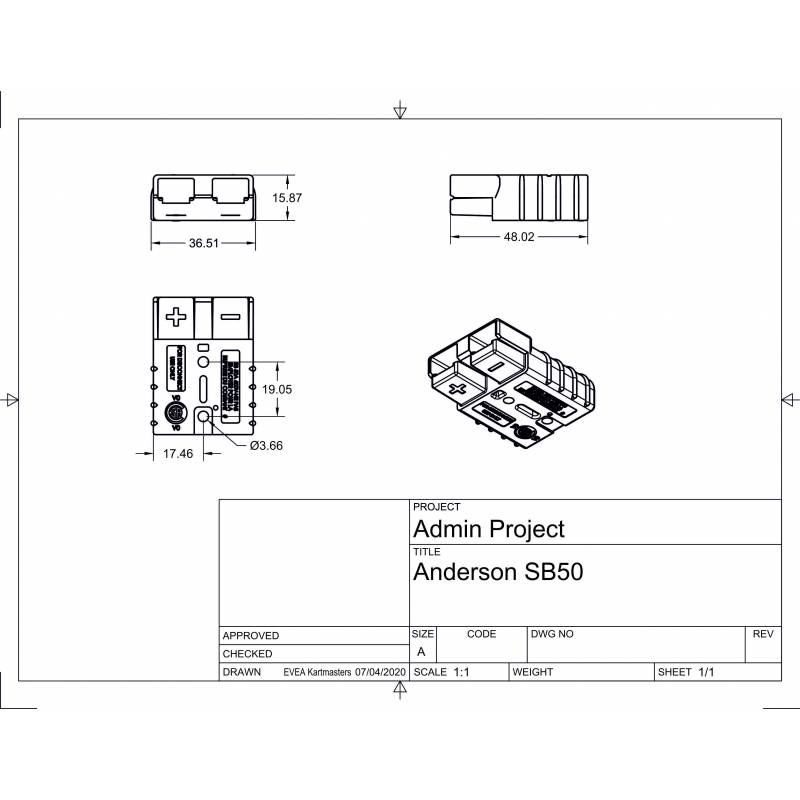

SB50-drawing

Dimensions of the SB50 connectors

Download (118.31k)
