Cellule Lithium GBS 3,2V 40Ah LiFeMnPO4
Previous Next

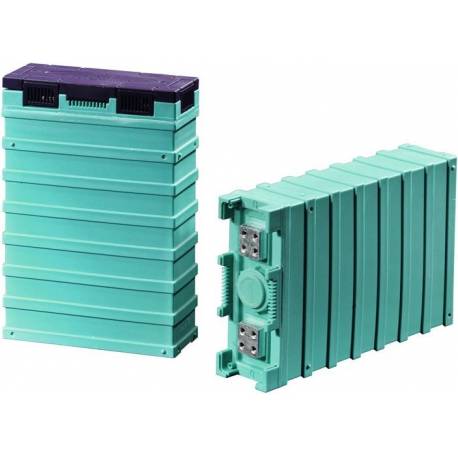

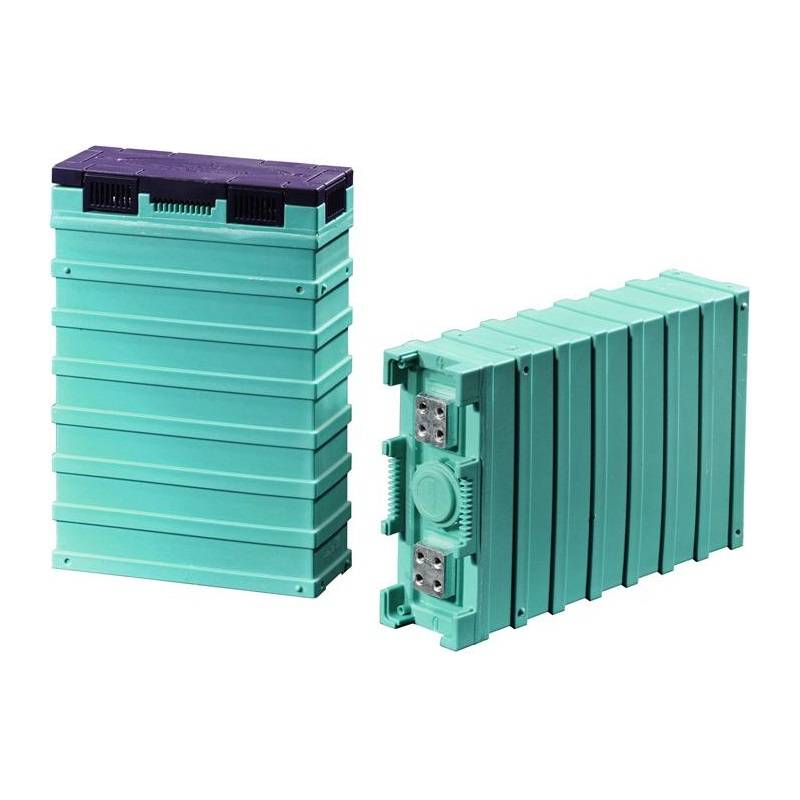

GBS 3,2V 40Ah LiFeMnPO4 lithium cell

327-002

New product

51,30 € Tax excluded

Livraison : 3 à 6 semaines

GBS 3,2V 40Ah LiFeMnPo4 Lithium cell

Rated Capacity : 40Ah
Nominal Voltage : 3,2V
Max. Charing Voltage : 3,65V
Max. Discharing Voltage 2,5V
Max. Charging Current : 1C
Constant Current : 3C, 120A
Impulse Current 2 sec. : 10C = 400A
Cycle life 90% DOD : 5000
Charging temperature : 0 ~ 45°C
Working Temperature : 0°C ~ +40°C
Power Density : 100Wh/kg
Cell Weight : 1.4 kg±100g

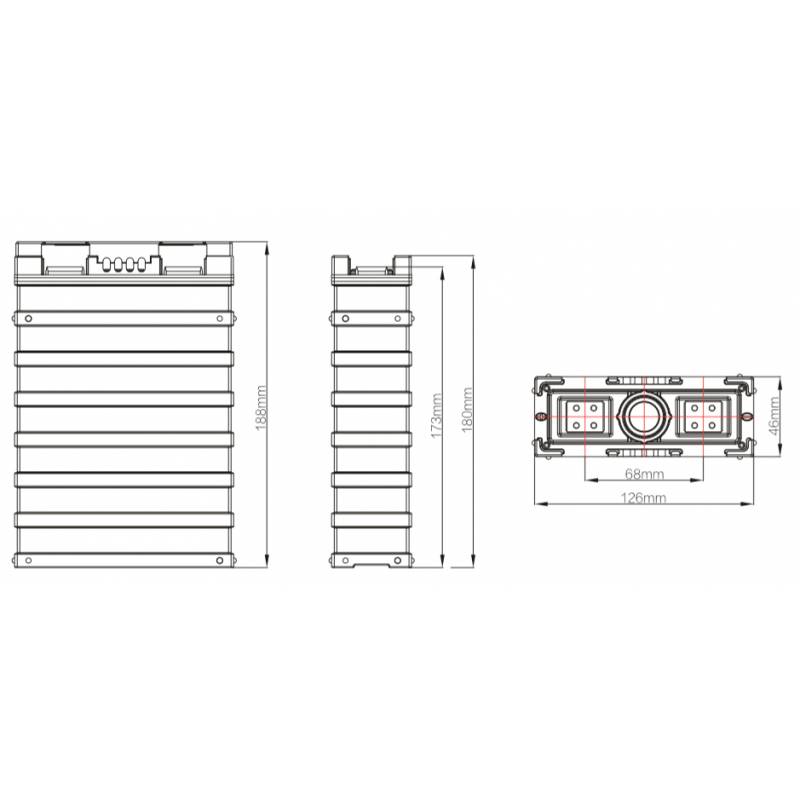

Dimension : 126mm x 46mm x 180mm

The minimum purchase order quantity for the product is 4

Alternative to Winston 40AH cells, ref: WB-LYP40AHA

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**
