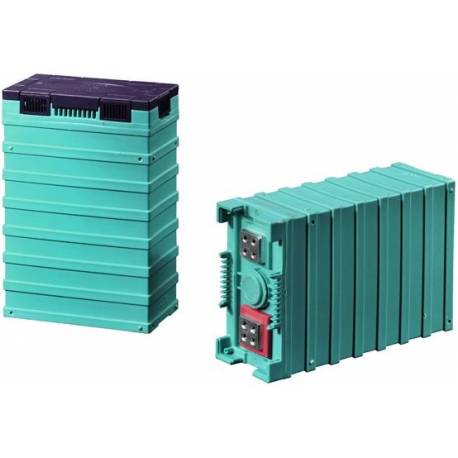

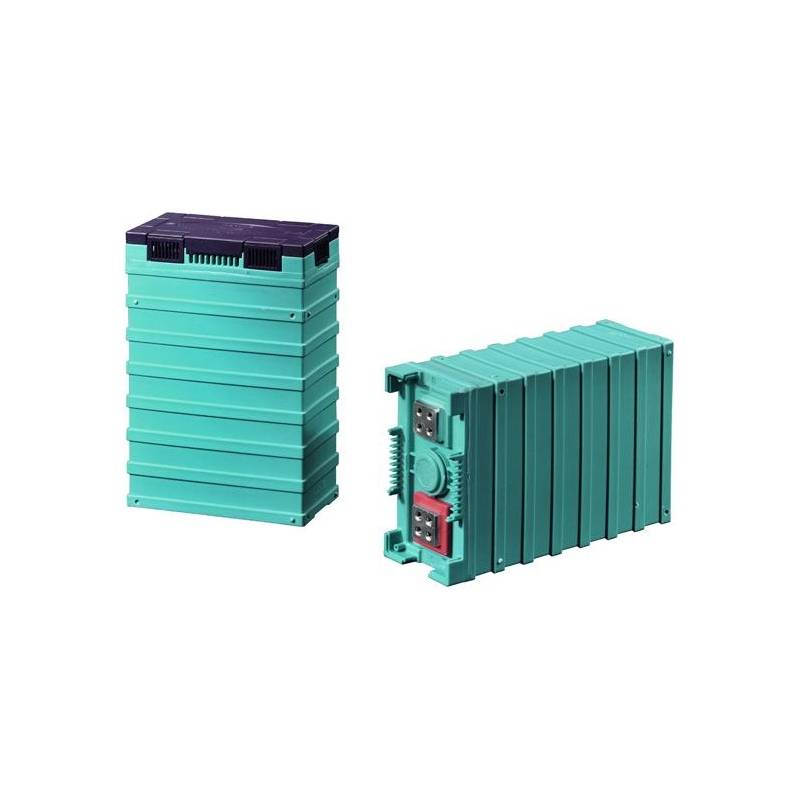

GBS 3,2V 60Ah LiFeMnPO4 Lithium cell
327-003
New product
76,03 € Tax excluded
Livraison : 3 à 6 semaines
- Rated Capacity : 60Ah
- Nominal Voltage : 3,2V
- Max. Charing Voltage : 3,65V
- Max. Discharing Voltage 2,5V
- Max. Charging Current : 1C
- Constant Current : 3C, 180A
- Impulse Current 2 sec. : 10C = 600A
- Cycle life 90% DOD : 5000
- Charging temperature : 0 ~ 45°C
- Working Temperature : 0°C ~ +40°C
- Power Density : 100Wh/kg
- Cell Weight : 2.0 kg±100g

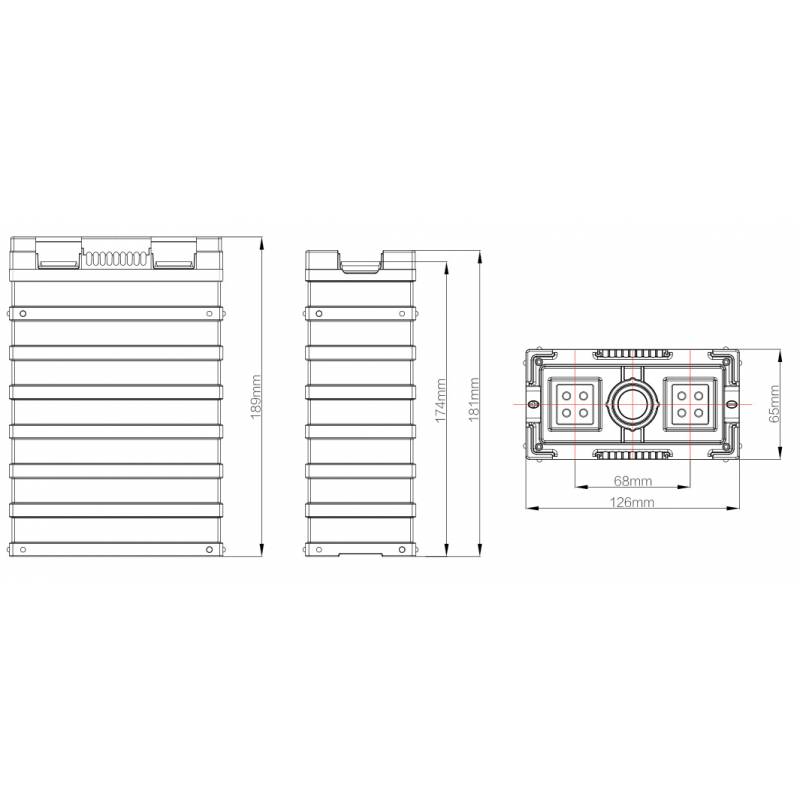

- Dimension : 126mm x 65mm x 180mm
This product is no longer in stock
Availability date: 2014-04-15
- Send to a friend
Send to a friend
GBS 3,2V 60Ah LiFeMnPO4 Lithium cell
- Rated Capacity : 60Ah
- Nominal Voltage : 3,2V
- Max. Charing Voltage : 3,65V
- Max. Discharing Voltage 2,5V
- Max. Charging Current : 1C
- Constant Current : 3C, 180A
- Impulse Current 2 sec. : 10C = 600A
- Cycle life 90% DOD : 5000
- Charging temperature : 0 ~ 45°C
- Working Temperature : 0°C ~ +40°C
- Power Density : 100Wh/kg
- Cell Weight : 2.0 kg±100g
- Dimension : 126mm x 65mm x 180mm
Recipient :
* Required fields
or Cancel
Alternative to Winston 60AH cells, ref: WB-LYP60AHA
