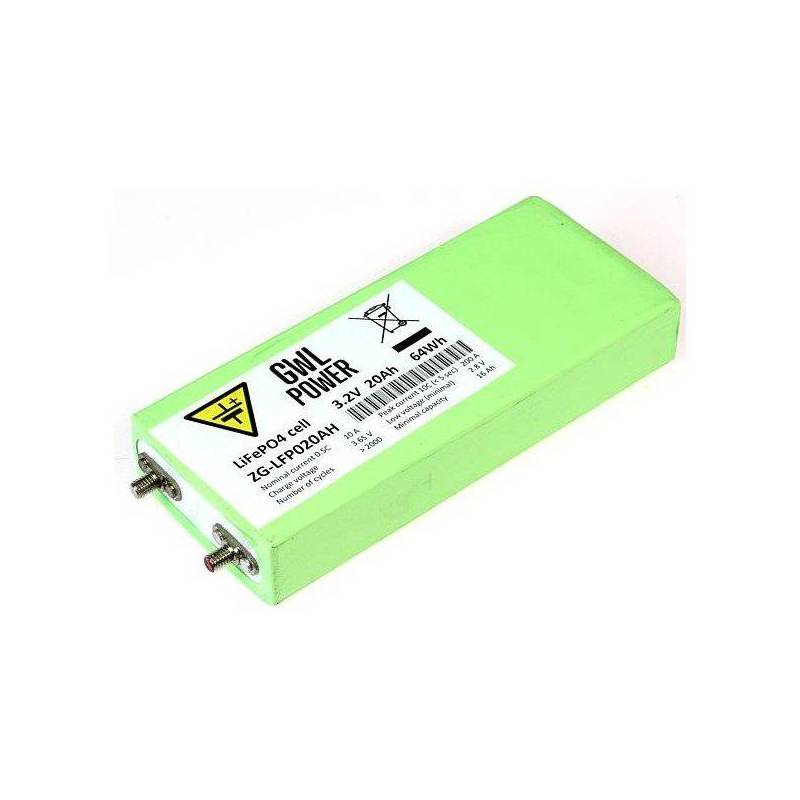

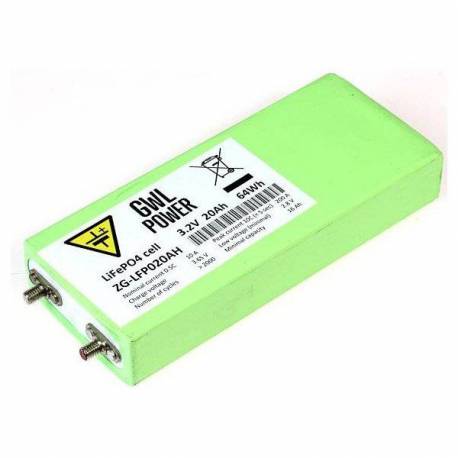

Lithium cell LiFePO4 20Ah 3.2V alu case

Lithium cell LiFePO4 20Ah 3.2V alu case

330-013

New product

38,52 € Tax excluded

Livraison : 3 à 6 semaines

Lithium cell LiFePO4 20Ah 3.2V alu case

Remplaced by GBS 3,2V 20Ah LiFeMnPO4 lithium cell, ref : 327-001

  • Cellule Lithium cell LiFePO4 alu case
  • Capacity 20Ah
  • Nominal voltage 3.2 V, operational voltage is 2.8 V - 3.65 V
  • The maximum charging voltage for initial charge 3.8 V
  • Maximum discharge current is 3C continuously
  • Peak discharge current is 10C (for 15 seconds)
  • Operating temperature -20°C up to 50°C (discharging)
  • Charging operating temperature: 0 ° C / +45 ° C

No customer reviews for the moment.

Write a review

Lithium cell LiFePO4 20Ah 3.2V alu case

Lithium cell LiFePO4 20Ah 3.2V alu case

Lithium cell LiFePO4 20Ah 3.2V alu case

Remplaced by GBS 3,2V 20Ah LiFeMnPO4 lithium cell, ref : 327-001

Quick view
Power Terminal Connectors for ZG-LFP20AH
0 Review(s)
11,12 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Copper coupling jumper...
Quick view
intAct battery monitor
0 Review(s)
34,56 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
intAct GL10 battery...
Cellule Lithium GBS 3,2V 40Ah LiFeMnPO4
Quick view
GBS 3,2V 40Ah LiFeMnPO4 lithium cell
0 Review(s)
51,30 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
GBS 3,2V 40Ah...
GBS 3,2V 20Ah LiFeMnPo4 Lithium cell
Quick view
GBS 3,2V 20Ah LiFeMnPO4 Lithium cell
0 Review(s)
27,32 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Rated Capacity : 20Ah...

ZG-LFP020AH-Data-sheet.pdf

Documentation of the Lithium cell LiFePO4 20Ah 3.2V alu case

Download (592.92k)
