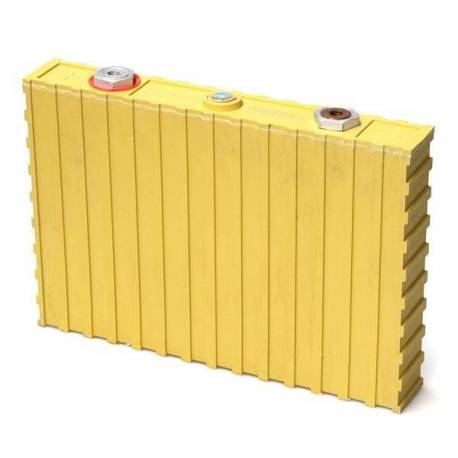

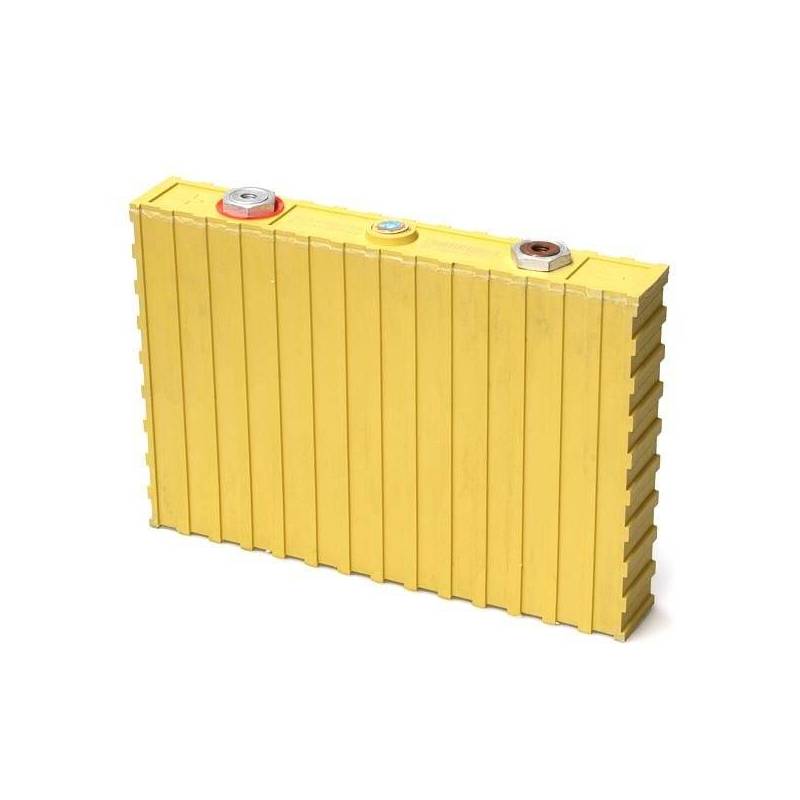

Winston 3,2V 200Ah LiFeYPO4 Lithium cell
Previous Next

Winston 3,2V 200Ah LiFeYPO4 Lithium cell

330-048

New product

Livraison : 3 à 6 semaines

Lithium cell Winston Battery 3.2V 200Ah LiFeYPO4 WIDE

Remplaced by GBS 3,2V 200Ah LiFeMnPO4 lithium cell, ref : 327-007

  • Nominal voltage of the cell is 3,2 V and the operational voltage is 2,5 - 3,8 V.
  • Recommended subsequent charging is to 3.8 V.
  • The minimum voltage is 2.5 V.
  • The cell is capable to provide short time discharge current up to 20C or 3C continously.
  • There is no Selfdischarging effect - can be recharged at any state of discharge (no memory effect).
  • High power lithium cell, original Winston Battery product with LiFePO4 (LiFeYPO4) technology.
  • Capacity: 200 Ah

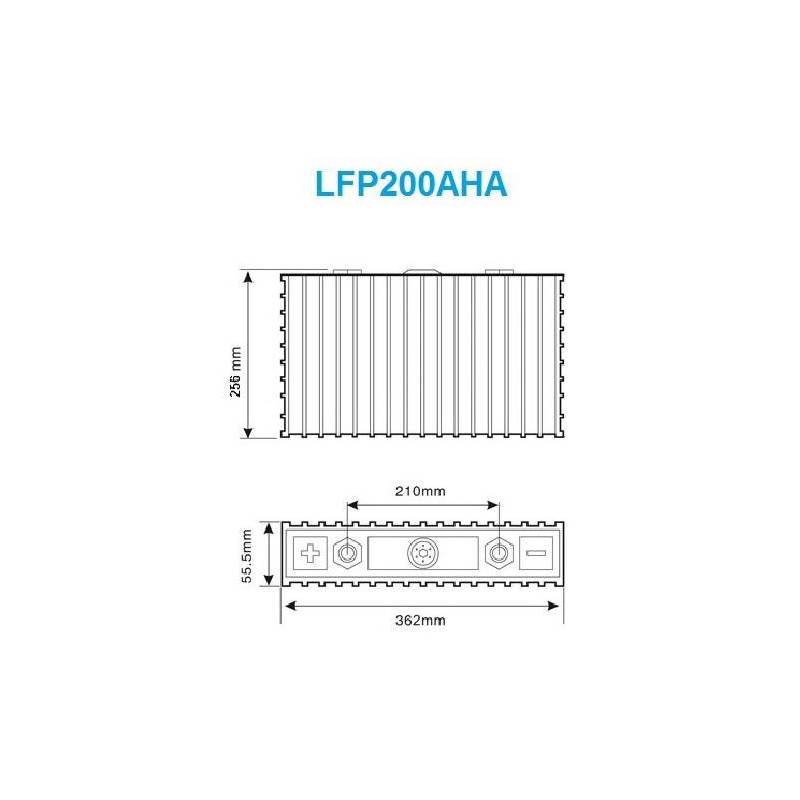

  • Size: 256 x 362 x 55 mm
  • Weight: 7.9 kg
