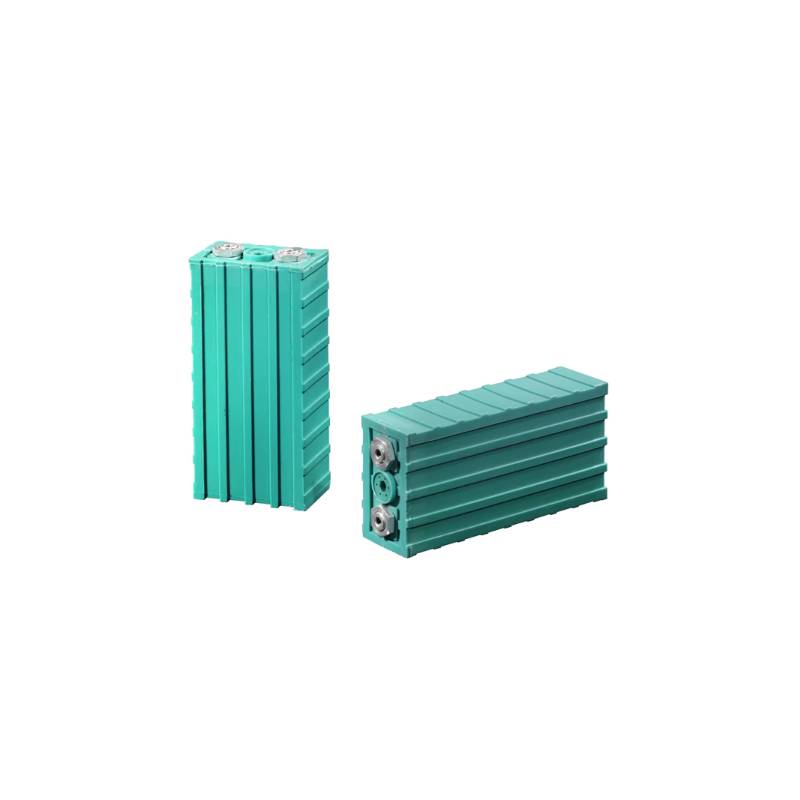

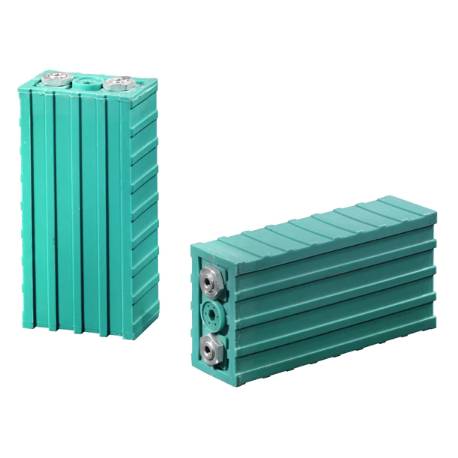

GBS 3,2V 20Ah LiFeMnPo4 Lithium cell
Previous Next

GBS 3,2V 20Ah LiFeMnPO4 Lithium cell

327-001

New product

27,32 € Tax excluded

Livraison : 3 à 6 semaines
  • Rated Capacity : 20Ah
  • Nominal Voltage : 3,2V
  • Max. Charing Voltage : 3,65V
  • Max. Discharing Voltage 2,5V
  • Max. Charging Current : 1C
  • Constant Current : 3C, 60A
  • Impulse Current 2 sec. : 10C = 200A
  • Cycle life 90% DOD : 5000
  • Charging temperature : 0 ~ 45°C
  • Working Temperature : 0°C ~ +40°C
  • Power Density : 100Wh/kg
  • Cell Weight : 0.7 kg±50g

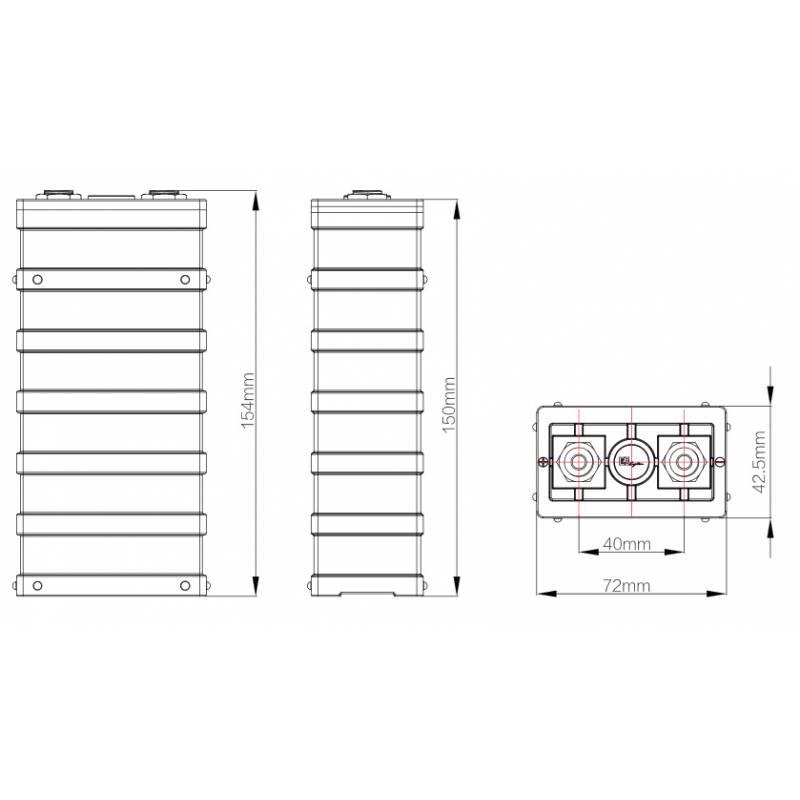

  • Dimension : 72mm x 42mm x 152mm

The minimum purchase order quantity for the product is 4

Alternative to GWL 20AH cells, ref : ZG-LFP020AH

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

GBS 3,2V 20Ah LiFeMnPO4 Lithium cell

GBS 3,2V 20Ah LiFeMnPO4 Lithium cell

  • Rated Capacity : 20Ah
  • Nominal Voltage : 3,2V
  • Max. Charing Voltage : 3,65V
  • Max. Discharing Voltage 2,5V
  • Max. Charging Current : 1C
  • Constant Current : 3C, 60A
  • Impulse Current 2 sec. : 10C = 200A
  • Cycle life 90% DOD : 5000
  • Charging temperature : 0 ~ 45°C
  • Working Temperature : 0°C ~ +40°C
  • Power Density : 100Wh/kg
  • Cell Weight : 0.7 kg±50g
  • Dimension : 72mm x 42mm x 152mm
