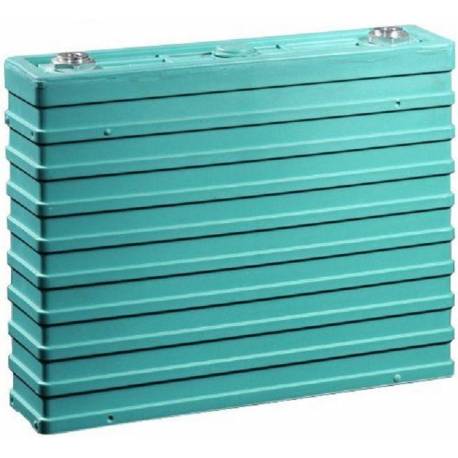

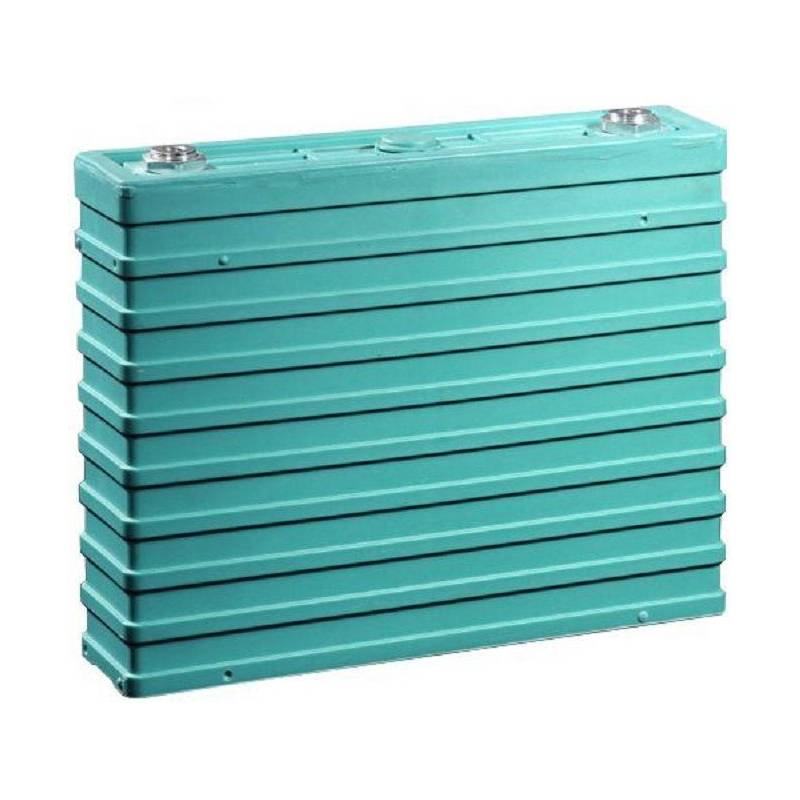

GBS 3,2V 200Ah LiFeMnPo4 Lithium cell
327-007
New product
248,40 € Tax excluded
Livraison : 3 à 6 semaines
- Rated Capacity : 200Ah
- Nominal Voltage : 3,2V
- Max. Charing Voltage : 3,65V
- Max. Discharing Voltage 2,5V
- Max. Charging Current : 1C
- Constant Current : 3C, 600A
- Impulse Current 2 sec. : 10C = 2000A
- Cycle life 90% DOD : 5000
- Charging temperature : 0 ~ 45°C
- Working Temperature : 0°C ~ +40°C
- Power Density : 100Wh/kg
- Cell Weight : 6.7 kg±100g

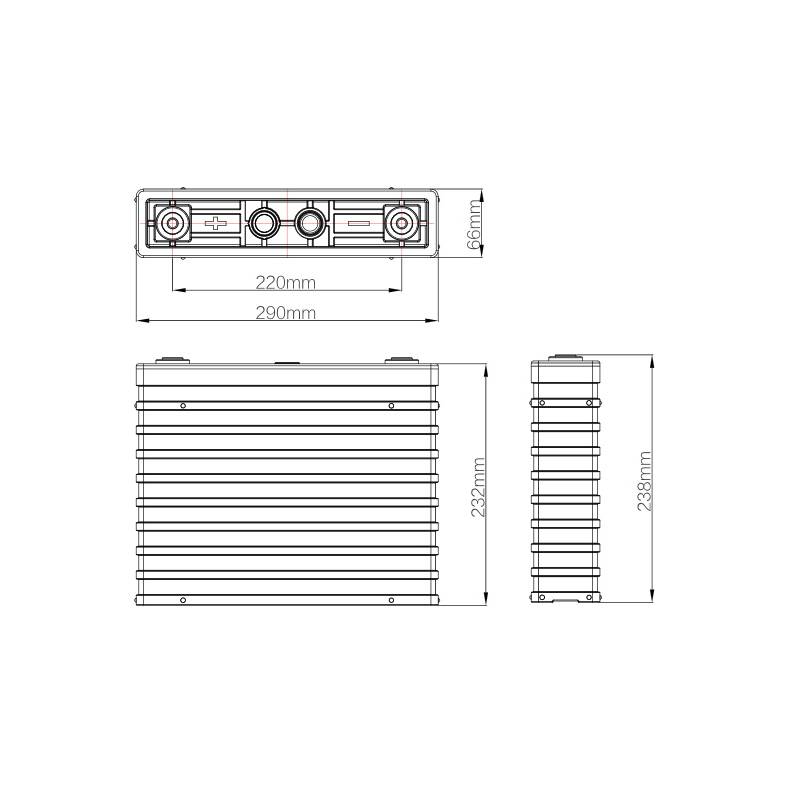

- Dimension : 290mm x 66mm x 238mm
This product is no longer in stock
Availability date:
- Send to a friend
Send to a friend
GBS 3,2V 200Ah LiFeMnPo4 Lithium cell
- Rated Capacity : 200Ah
- Nominal Voltage : 3,2V
- Max. Charing Voltage : 3,65V
- Max. Discharing Voltage 2,5V
- Max. Charging Current : 1C
- Constant Current : 3C, 600A
- Impulse Current 2 sec. : 10C = 2000A
- Cycle life 90% DOD : 5000
- Charging temperature : 0 ~ 45°C
- Working Temperature : 0°C ~ +40°C
- Power Density : 100Wh/kg
- Cell Weight : 6.7 kg±100g
- Dimension : 290mm x 66mm x 238mm
Recipient :
* Required fields
or Cancel
Alternative to Winston 200AH cells, ref: WB-LYP200AHA
