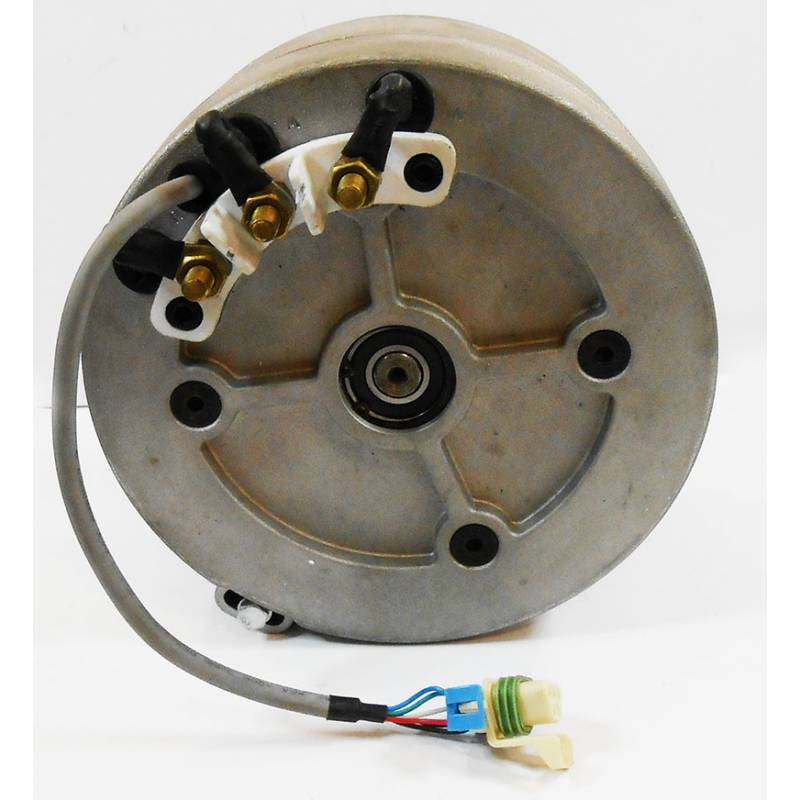

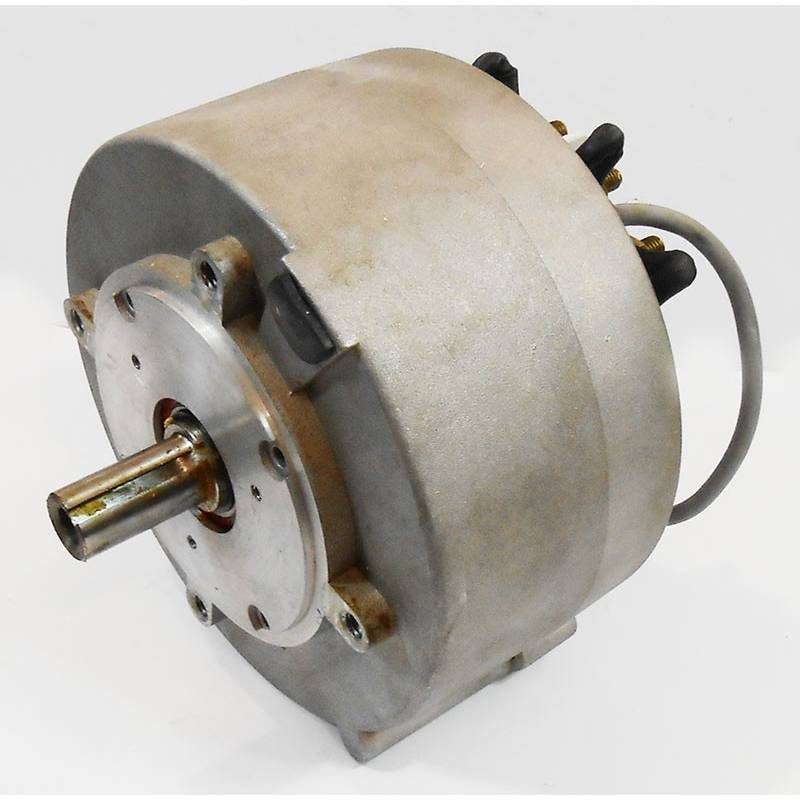

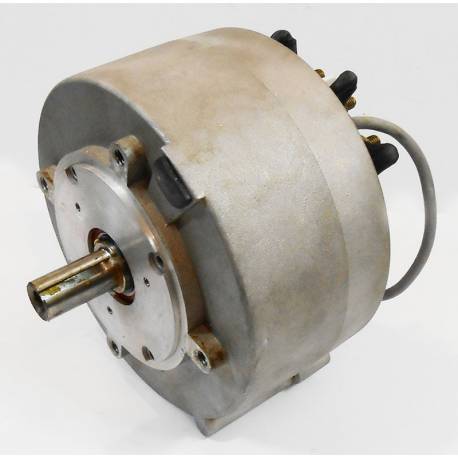

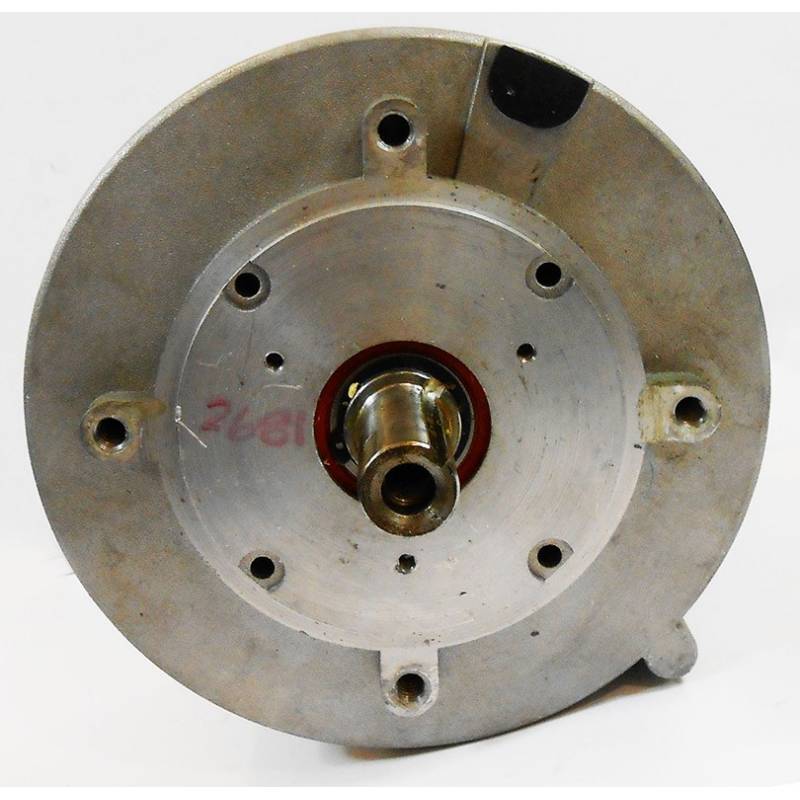

ME0201013201 PMSM brushless enclosed motor
130-006
New product
604,80 € Tax excluded
Livraison : 3 à 6 semaines
ME0201013201 PMSM brushless enclosed motor 50A 48V
This product is no longer in stock
Availability date:
- Send to a friend
Send to a friend
ME0201013201 PMSM brushless enclosed motor
ME0201013201 PMSM brushless enclosed motor 50A 48V
Recipient :
* Required fields
or Cancel
- No brush maintenance
- 3-phase, Y-connected Permanent Magnet Synchronus Motor with an axial air gap
- The motor is 90% efficient at voltages between 24 to 48 VDC
- Continuous current of 50 amps at 48 VDC
- The motor is totally enclosed.
- Similar voltage constant to the ME0907 and ME1012 motors.
- 20 turns per phase Line to Line resistance of 0.013 ohms
- Weight of xx 10 kg

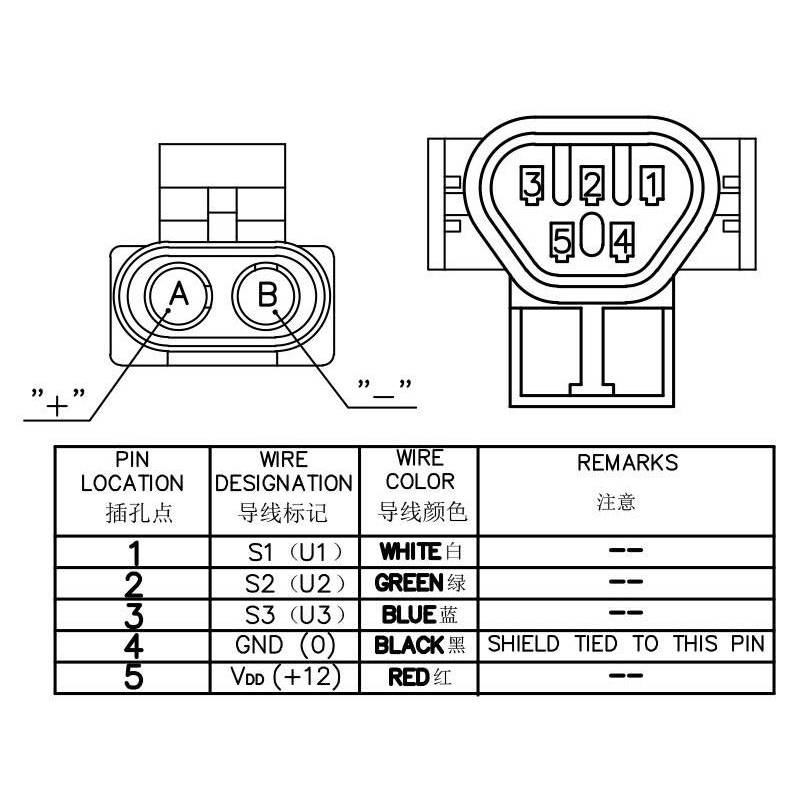

- U/V/W/ encoder
No customer reviews for the moment.
