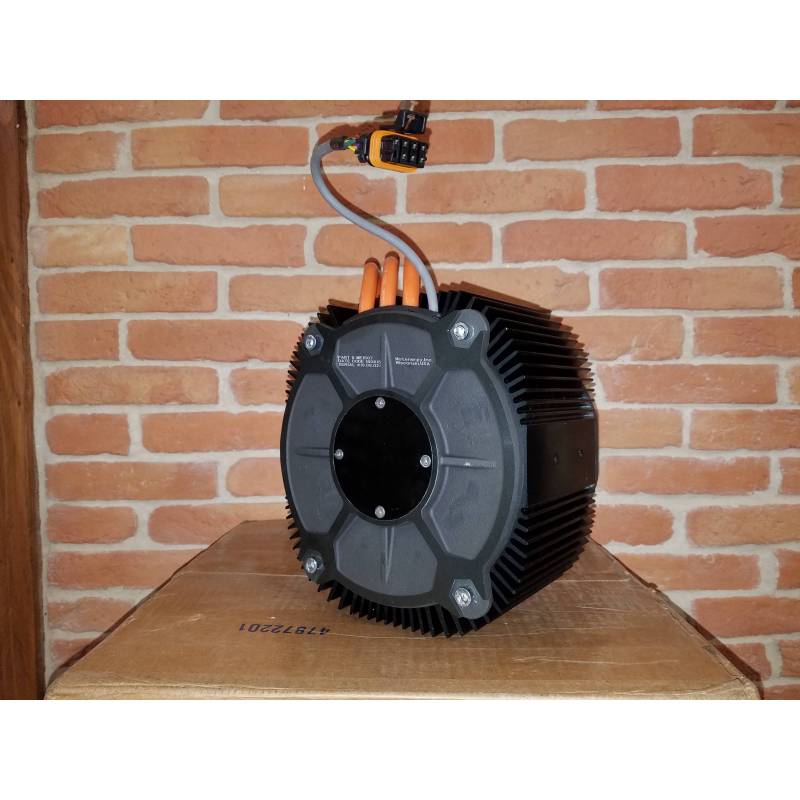

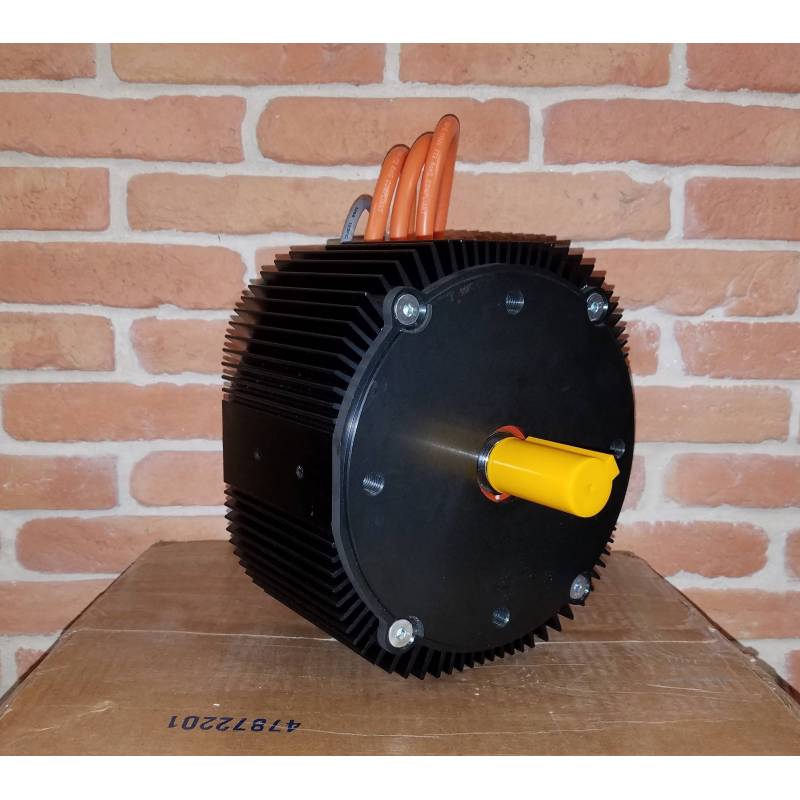

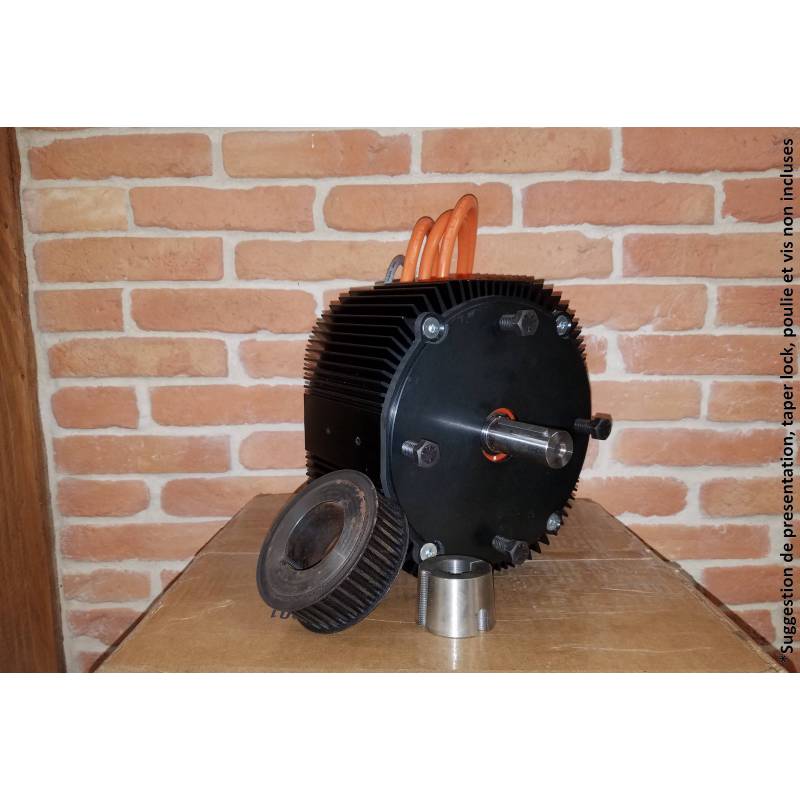

Motenergy motor, ME1507 Brushless, Air-Cooled

Display all pictures

Motenergy motor, ME1507 Brushless, Air-Cooled

Reference: 130-008

Condition: New product

1 198,80 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME1507 PMSM motor, fully enclosed, air cooling, 48VDC-120VDC, 160Arms, 13kW

Send to a friend
Send to a friend

Motenergy motor, ME1507 Brushless, Air-Cooled
Motenergy ME1507 PMSM motor, fully enclosed, air cooling, 48VDC-120VDC, 160Arms, 13kW
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Air cooling version of Motenergy ME1616 motor.

Motenergy ME1507 electric motor
No brush maintenance, brushless
Fully enclosed / Waterproof
3-phases, double stators, Y-connected
Permanent Magnet Synchronus Motor
Motor efficiency of 92% at 80 VDC.
5 pairs pole motor (10 magnets).
Phase to Phase winding resistance is 0.027 Ohms.
Phase to Phase winding inductor is 0.1 mH.
Maximum recommended rotor speed is 8000 RPM (837,7 rad/s).
Controller input voltage 48 à 120 VDC.
Torque constant 0.20 Nm/Amp.
Armature Inertia 960 Kg/cm²
Rated power 13kW, peak 44kW (62hp).
rated current 160Arms
Maximum current 600Arms during 1min
Weight 21Kg
Maximum torque 120Nm.

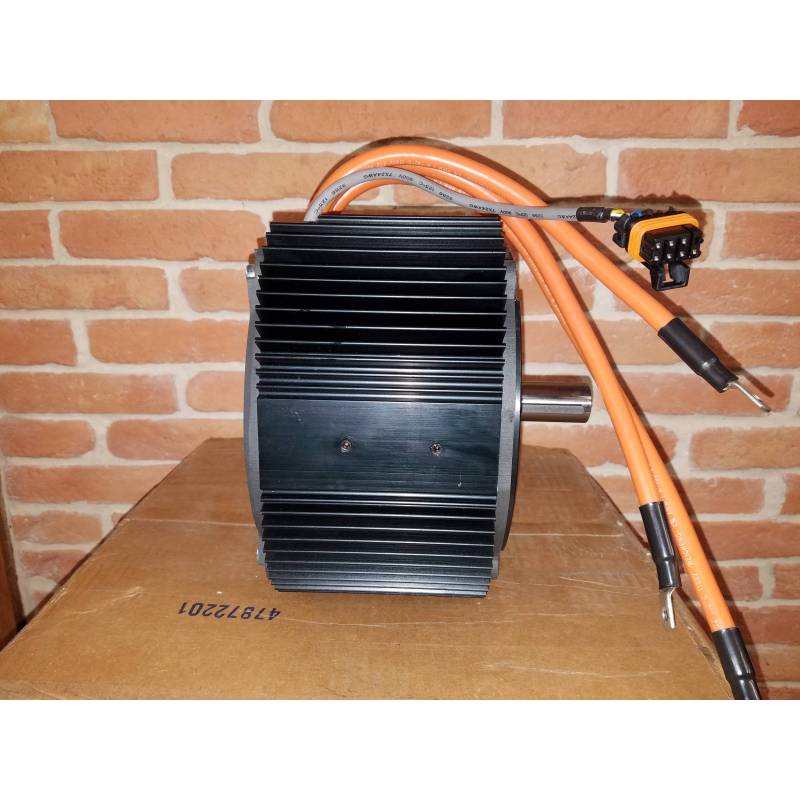

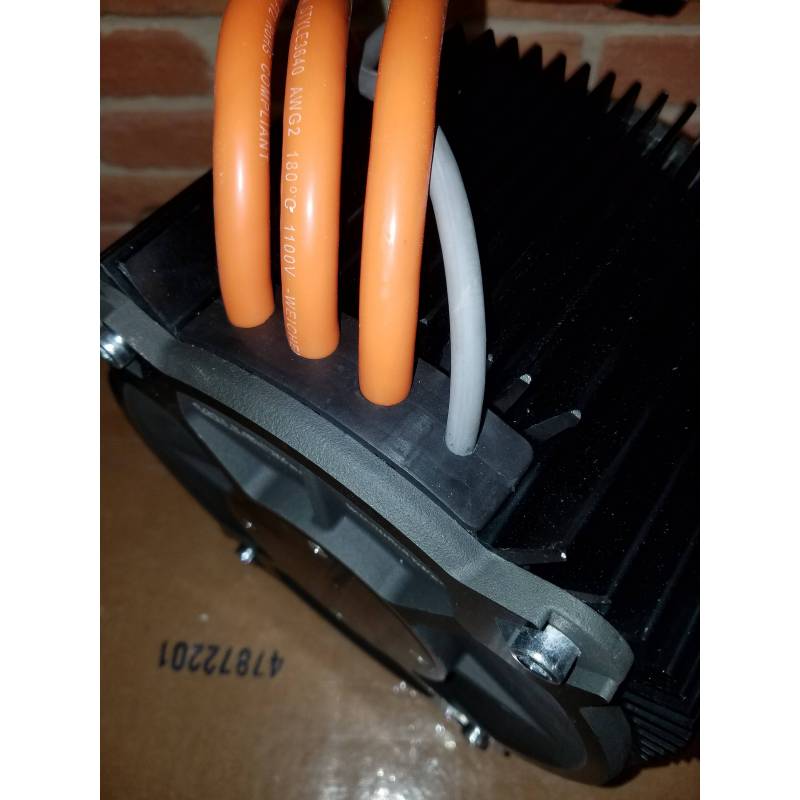

Power supply cable 35mm², terminals 8mm eyelet lugs
Temperature sensor KTY84-130
Rotor sensor type Sin/Cos
Shaft 1-1/8"

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

VIDEO

Test bench - ME1507 & BLE4 PW 96V 700A

Test on bench or Motenergy ME1507 brushless motor with ZAPI BLE-4 PW 96V 700Arms controller
