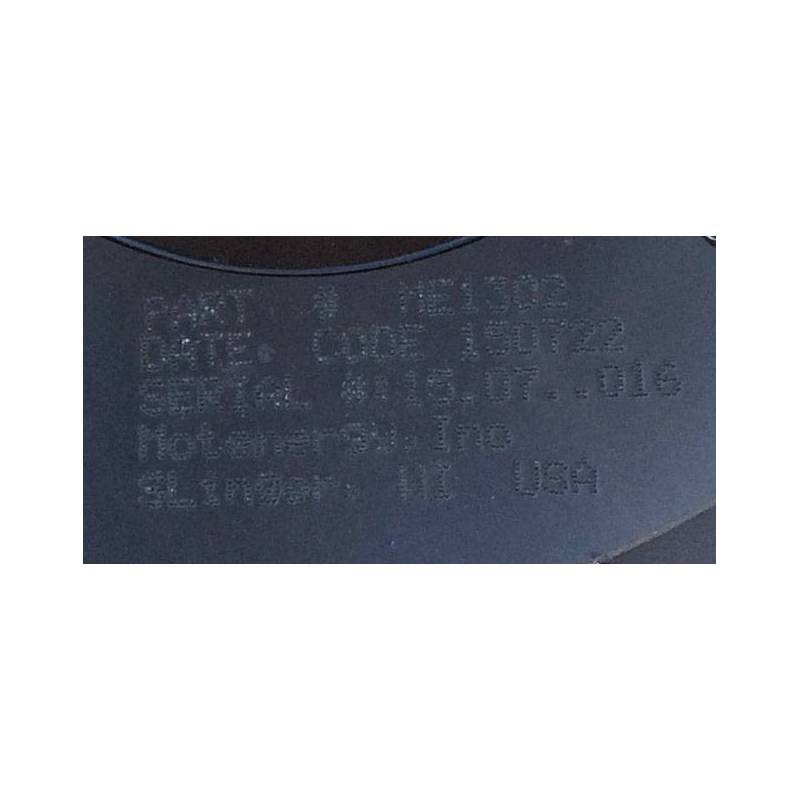

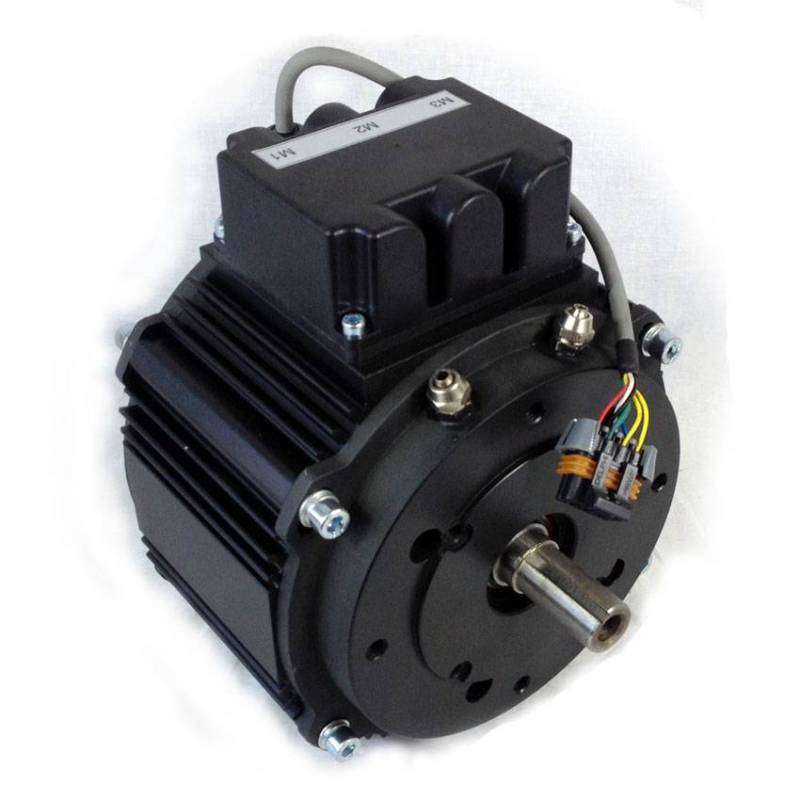

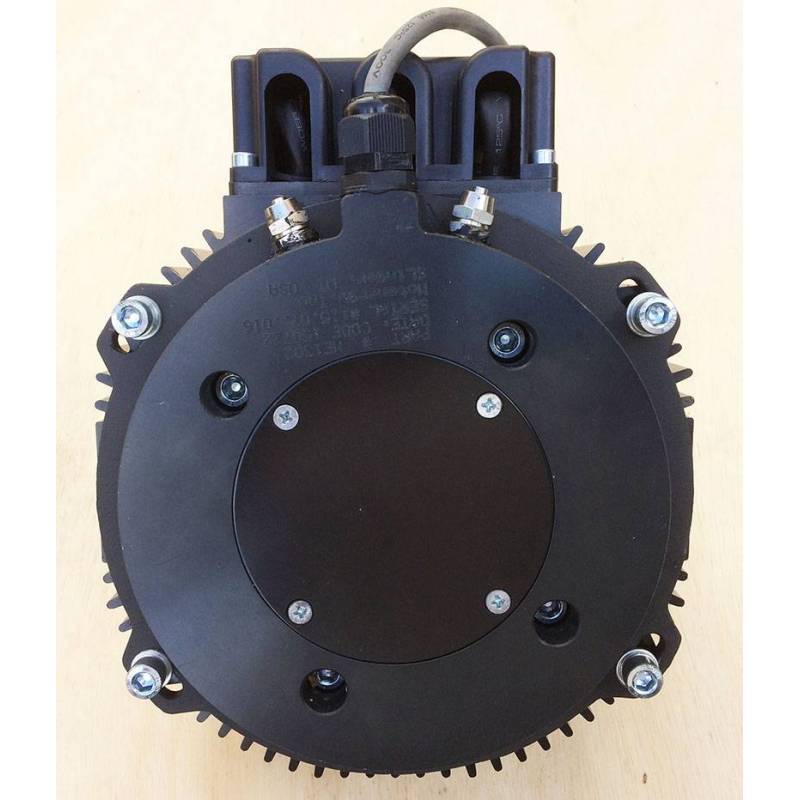

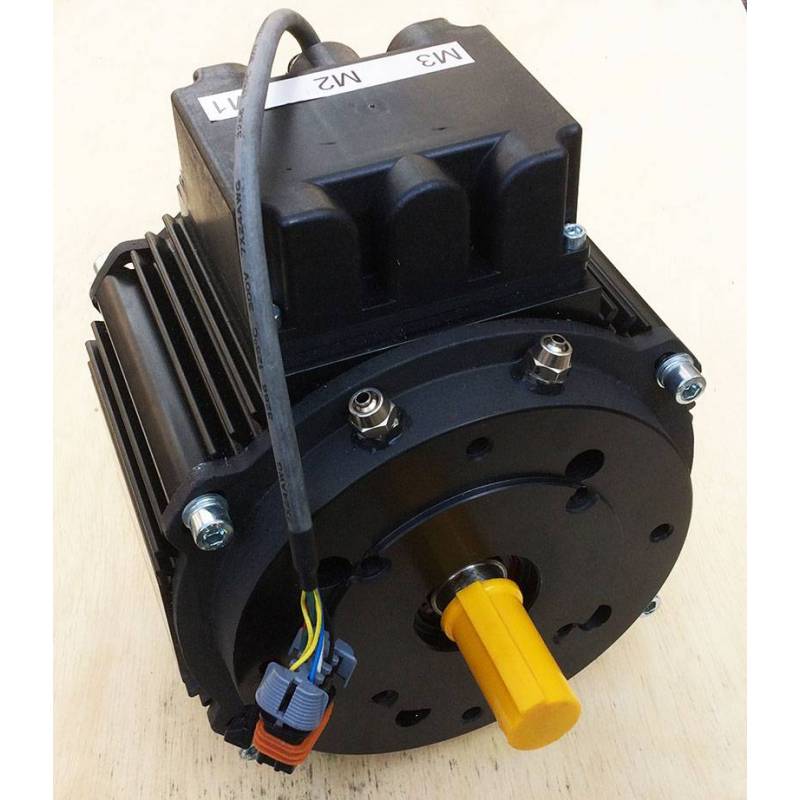

Motenergy motor, ME1302 Brushless, Water-Cooled

Display all pictures

Motenergy motor, ME1302 Brushless, Water-Cooled

Reference: 130-010

Condition: New product

939,60 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME1302 PMSM, fully enclosed, water cooling, 24-96VDC, 180Arms, 12kW

Send to a friend
Send to a friend

Motenergy motor, ME1302 Brushless, Water-Cooled
Motenergy ME1302 PMSM, fully enclosed, water cooling, 24-96VDC, 180Arms, 12kW
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Liquid cooling (water + glycol 50%) version of Motenergy ME1115 motors.

Motenergy ME1302 electric motor
No brush maintenance, brushless
Fully enclosed
3-phases, double stators, Y-connected
Permanent Magnet Synchronus Motor
Motor efficiency of 92% at 80 VDC.
4 pairs pole motor (8 magnets).
Phase to Phase winding resistance is 0,013 Ohms.
Phase to Phase winding inductor is 0.1 mH.
Maximum recommended rotor speed is 5000 RPM (837,7 rad/s).
Controller input voltage 24 à 96 VDC.
Torque constant 0.15 Nm/Amp.
Armature Inertia 45 Kg/cm²
Rated power 12kW, peak 30kW (42hp).
rated current 180Arms (250A continuous is input controller)
Maximum current 420Arms during1 min (600A continuous is input controller)
Weight 16Kg
Maximum torque 70Nm.
Liquid cooling (fully enclosed).
Temperature sensor KTY84-130
Rotor sensor type Sin/Cos
Shaft 7/8"
Recommended water cooling 10l/min
Water cooling maximum pressure : 1.5 Bar
Hose diameter for liquide cooling : 8mm (standard) or 10mm (upgrade kit ref: )

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**
