ME1117 PMSM brushless motor

ME1117 PMSM brushless motor

130-014

New product

576,72 € Tax excluded

Livraison : 3 à 6 semaines

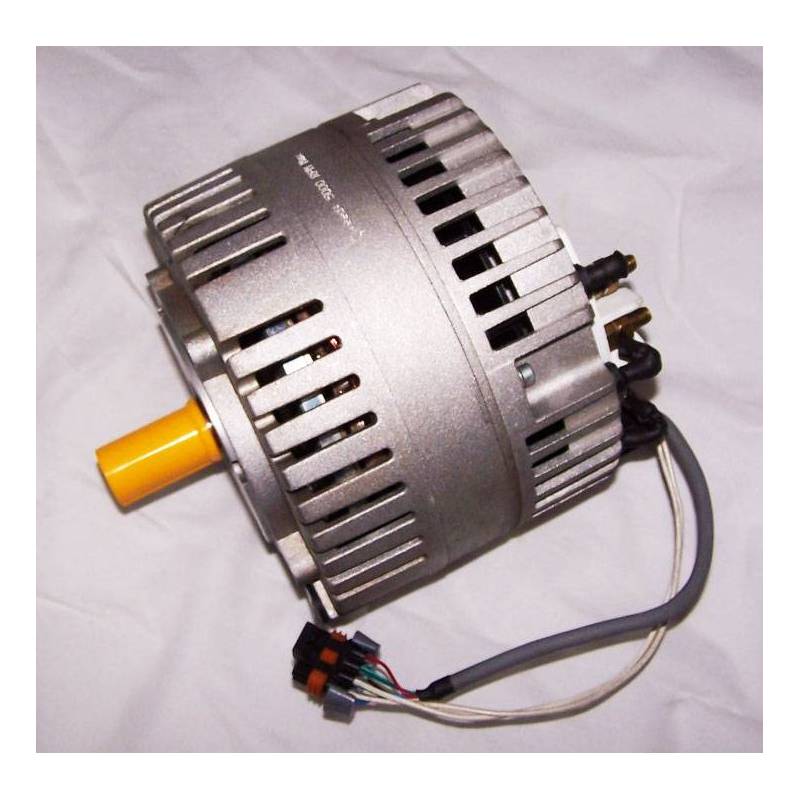

ME 1117 PMSM brushless motor 120A 24-96VDC - This is a direct replacement for the Motenergy ME0201013001 and ME0907 motors.

  • No brush maintenance
  • 3-phase, Y-connected Permanent Magnet Synchronus Motor with an axial air gap
  • The motor is 90% efficient at voltages between 24 to 96V DC
  • This is a 4 pairs pole motor (8 magnets)
  • Continuous current of 120 amps
  • Continuous Output of 7.5 kw on 70 VDC battery systems (15 kw peak)
  • Maximum rotor speed is 5,000 rpm
  • 20 turns per phase
  • Line to Line resistance of 0.013 ohms
  • Weight of 23 pounds (10.5 kg)
  • Temperature sensor KTY84-130

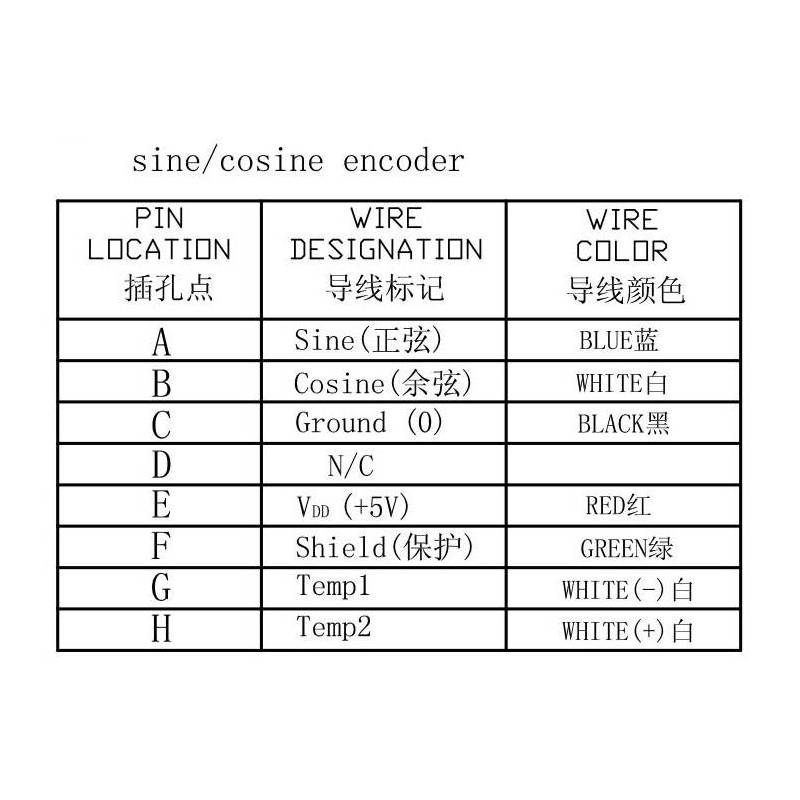

  • sin/cos encoder
  • CW : clockwise
  • CCW : counterclockwise

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**
