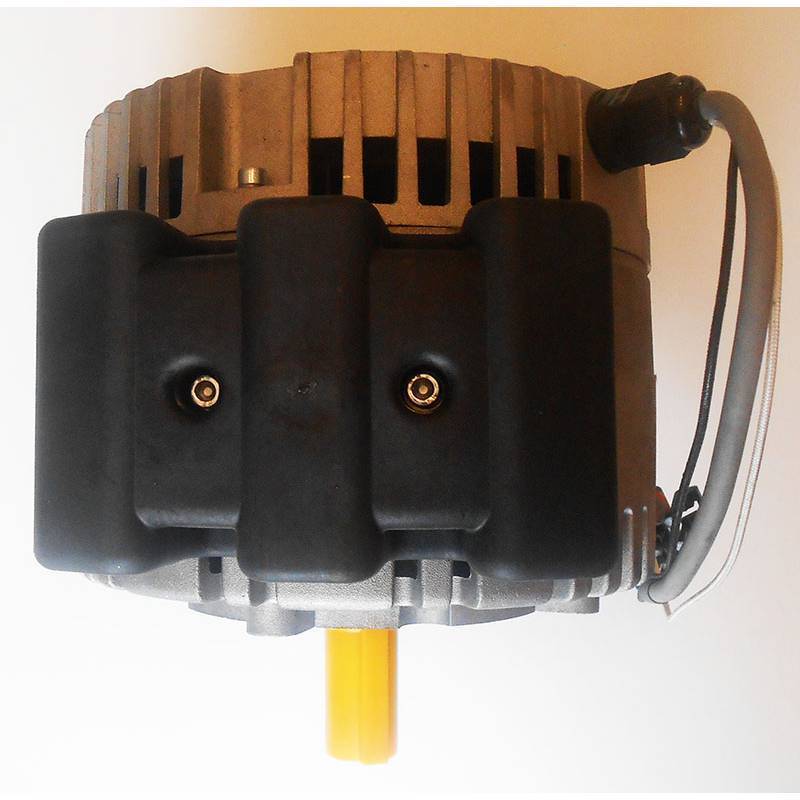

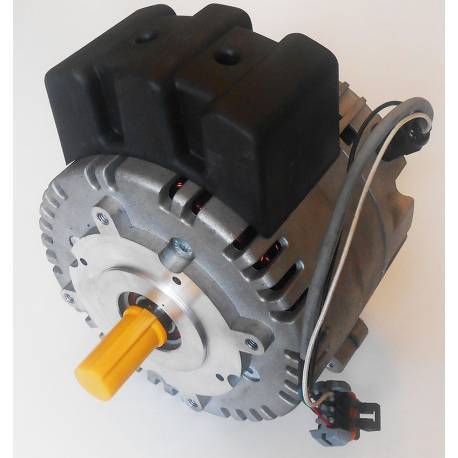

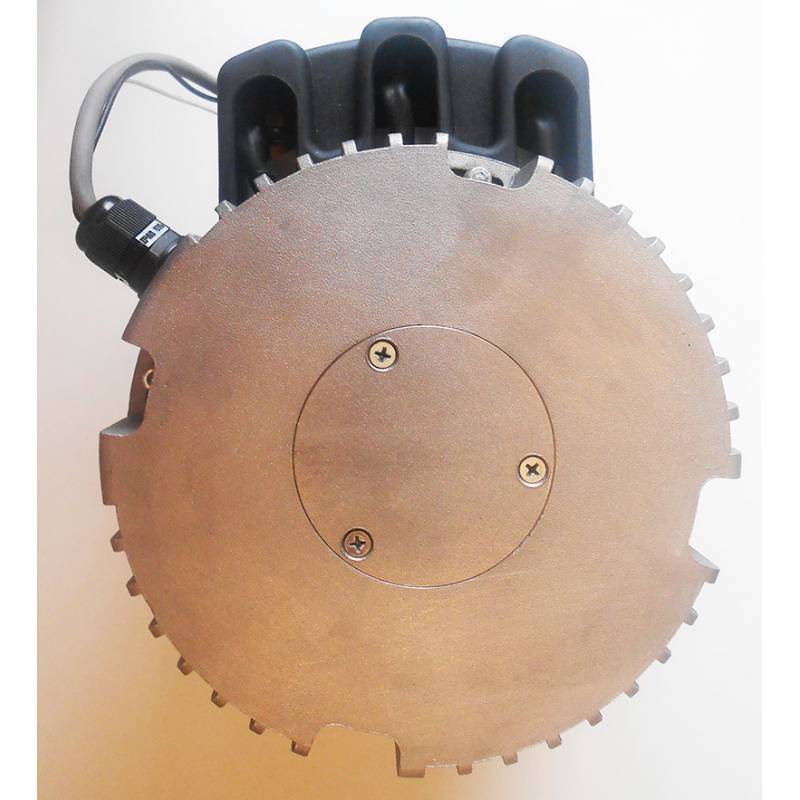

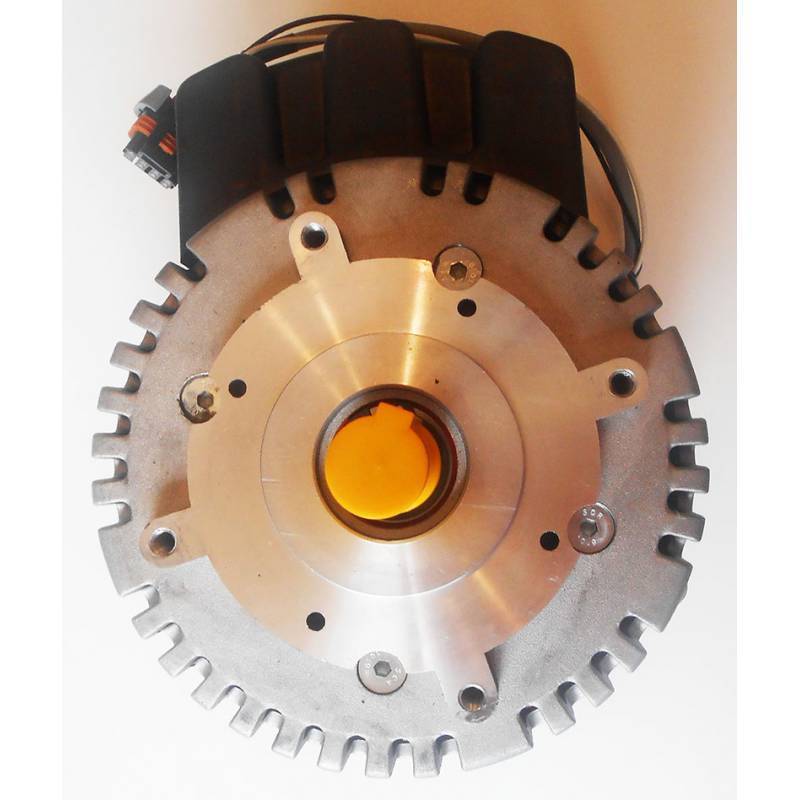

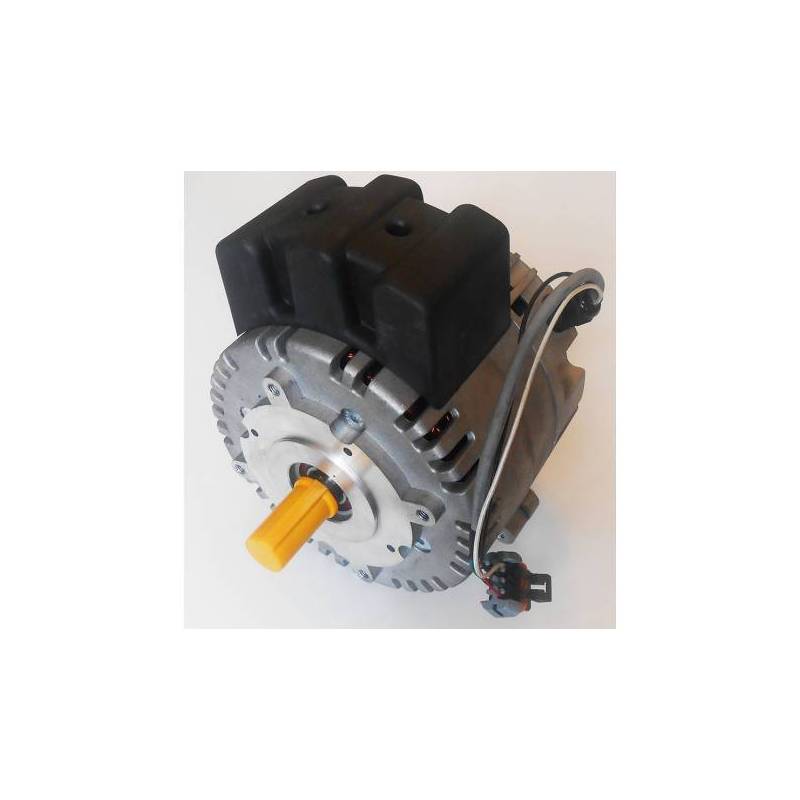

Motenergy motor, ME1115 Brushless, Air-Cooled

Display all pictures

Motenergy motor, ME1115 Brushless, Air-Cooled

Reference: 130-015

Condition: New product

784,80 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME1115 PMSM, forced air-cooled, 24-96VDC, 180Arms, 12kW

Send to a friend
Send to a friend

Motenergy motor, ME1115 Brushless, Air-Cooled
Motenergy ME1115 PMSM, forced air-cooled, 24-96VDC, 180Arms, 12kW
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Forced air-cooled version of Motenergy ME1302 motors.

Motenergy ME1115 electric motor
No brush maintenance, brushless
Open frame, fan cooling.
3-phases, double stators, Y-connected
Permanent Magnet Synchronus Motor
Motor efficiency of 92% at 80 VDC.
4 pairs pole motor (8 magnets).
Phase to Phase winding resistance is 0,013 Ohms.
Phase to Phase winding inductor is 0.1 mH.
Maximum recommended rotor speed is 5000 RPM (837,7 rad/s).
Controller input voltage 24 à 96 VDC.
Torque constant 0.15 Nm/Amp.
Armature Inertia 45 Kg/cm²
Rated power 12kW, peak 30kW (42hp).
rated current 180Arms
Maximum current 420Arms during1 min
Weight 16Kg
Maximum torque 70Nm.
Temperature sensor KTY84-130
Rotor sensor type Sin/Cos
Shaft 7/8"

No customer reviews for the moment.

VIDEO

Test bench - ME1115 & BLE2 PW 48V 500A

Test on bench or Motenergy ME1115 brushless motor with ZAPI BLE-2 PW 48V 500Arms controller
