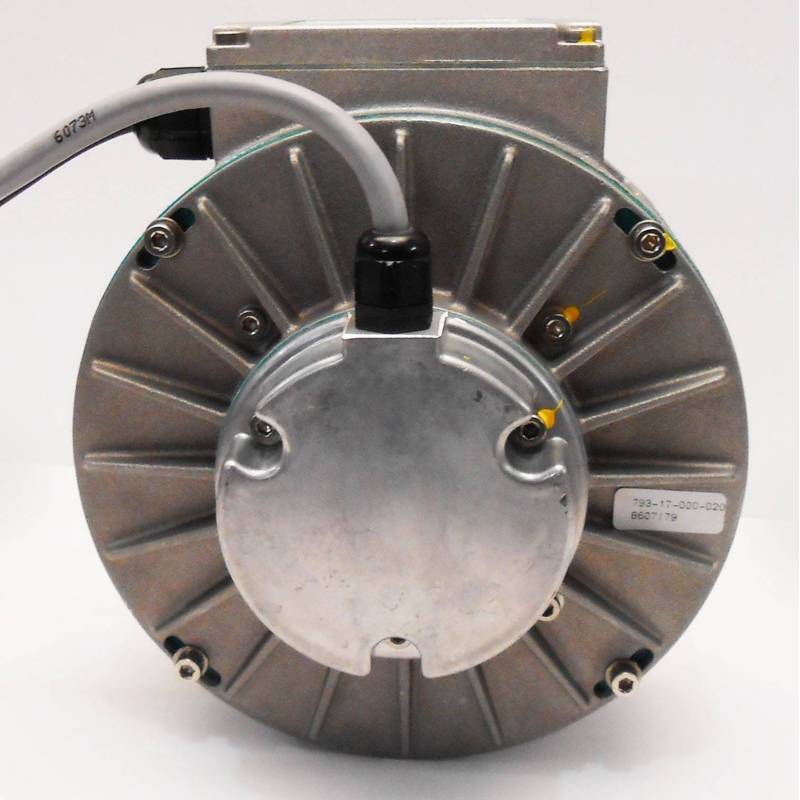

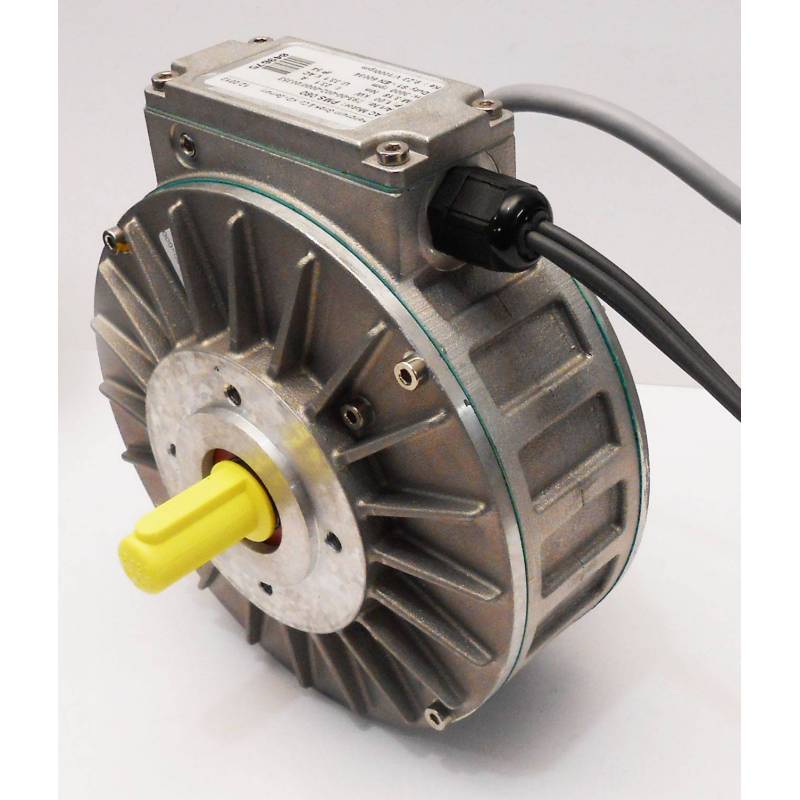

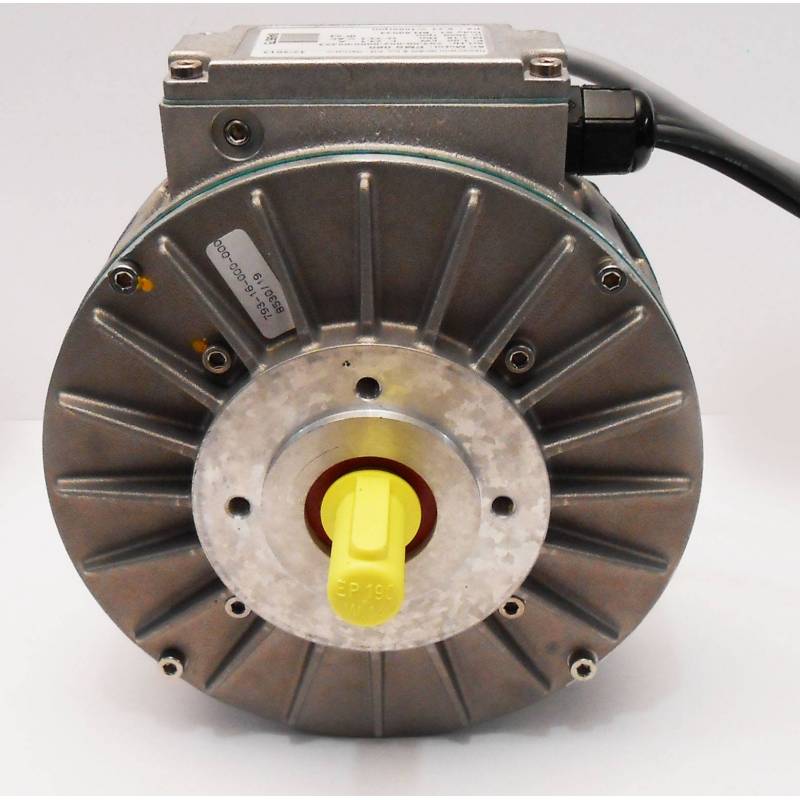

Heinzmann motor, PMS 080 48 VDC

130-102

New product

1 918,73 € Tax excluded

Livraison : 3 à 6 semaines
  • Heinzmann PMS080 motor
  • AC Synchronous Disc Motor Force Air Ventilated
  • Battery voltage 48VDC

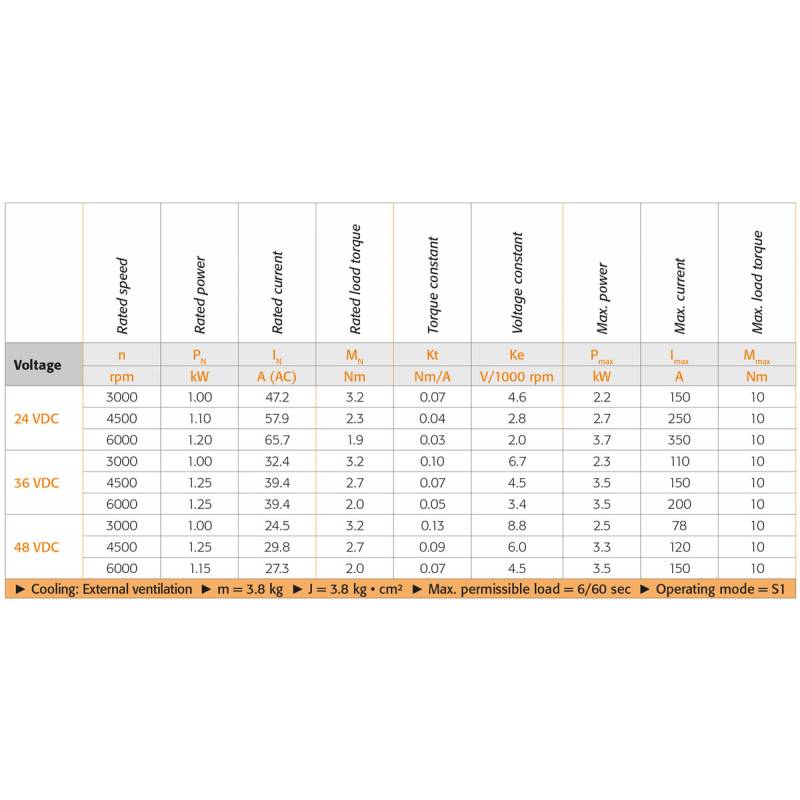

  • Available in 3 versions :
    • Rated power: 1 kW
    • Rated speed : 3000tr/min
    • RMS current : 25Arms
    • Rated torque : 3,2Nm
    • Rated power: 1,25 kW
    • Rated speed : 4500tr/min
    • RMS current : 30Arms
    • Rated torque : 2,7Nm
    • Rated power: 1,15 kW
    • Rated speed : 6000tr/min
    • RMS current : 27Arms
    • Rated torque : 2Nm

The brushless synchronous motors with up to 25 kW of power are superior to standard electric motors in some ways . because of their flat design, small size and low weight, the robust motors have proven their effectiveness during a huge range of applications for many years . Unlike the PMS F series, the quality version of PMS motors is provided with two stators. With only a rather greater length, the double-sided design delivers more torque and better power while simultaneously having lower inertia.

Powerful brushless synchronous motors with patented rotor technology. The series with double-sided stators deliver excellent performance data and significant efficiency gains. For applications where limited installation space may be a major problem. Small size and high performance make these efficient drives perfect to be used in machine and equipment manufacture and within the traction sector.

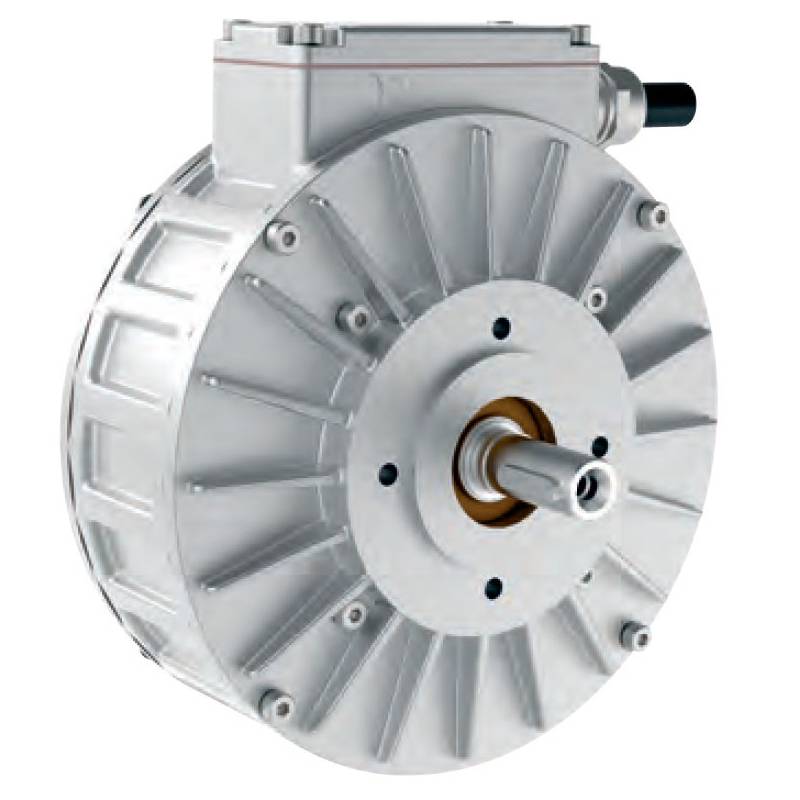

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

Heinzmann motor, PMS 080 48 VDC

Heinzmann motor, PMS 080 48 VDC

  • Heinzmann PMS080 motor
  • AC Synchronous Disc Motor Force Air Ventilated
  • Battery voltage 48VDC
  • Available in 3 versions :
    • Rated power: 1 kW
    • Rated speed : 3000tr/min
    • RMS current : 25Arms
    • Rated torque : 3,2Nm
    • Rated power: 1,25 kW
    • Rated speed : 4500tr/min
    • RMS current : 30Arms
    • Rated torque : 2,7Nm
    • Rated power: 1,15 kW
    • Rated speed : 6000tr/min
    • RMS current : 27Arms
    • Rated torque : 2Nm
