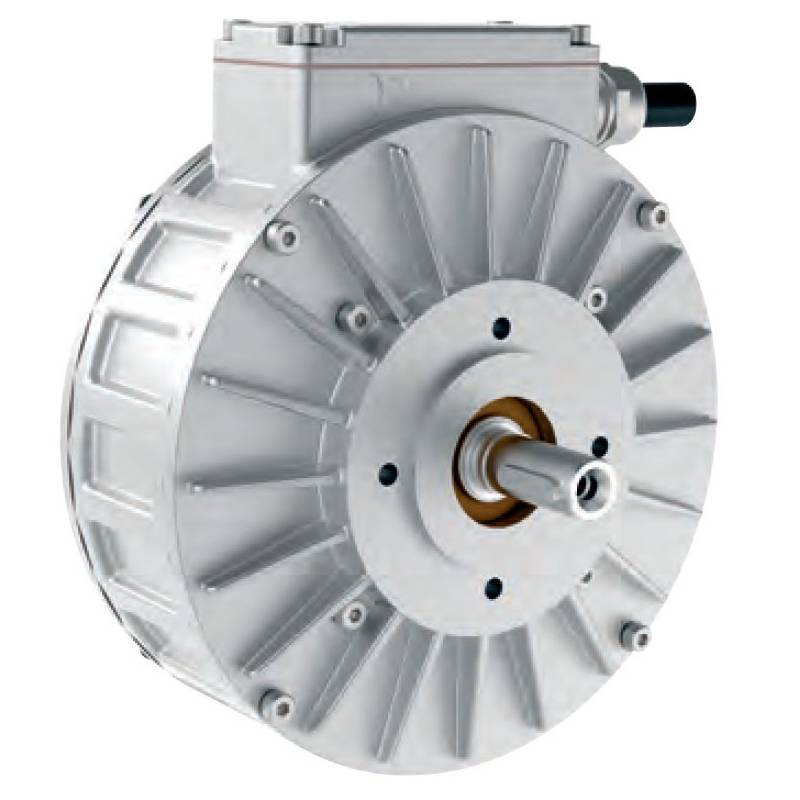

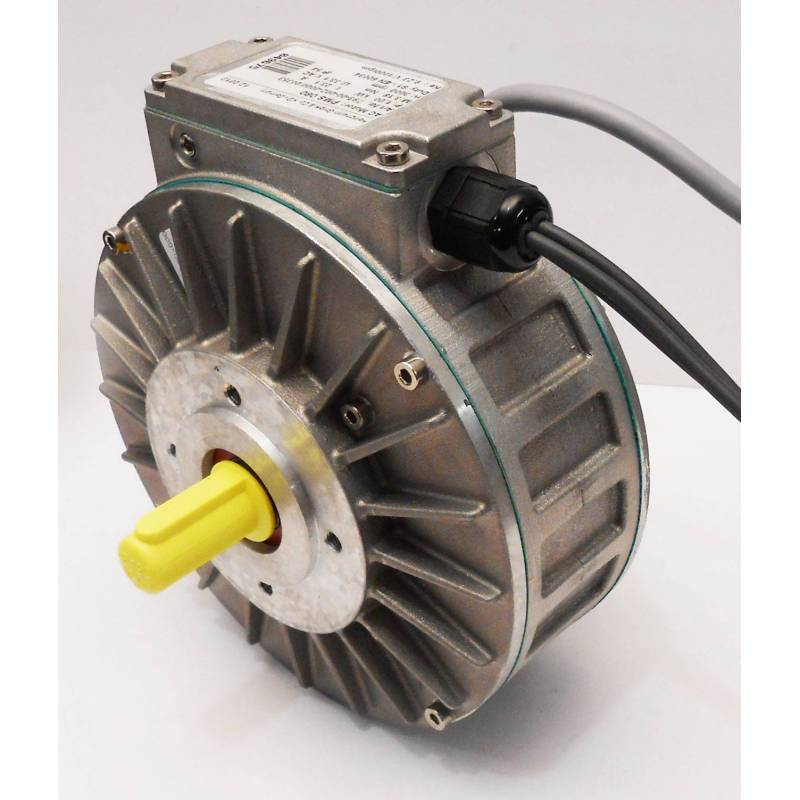

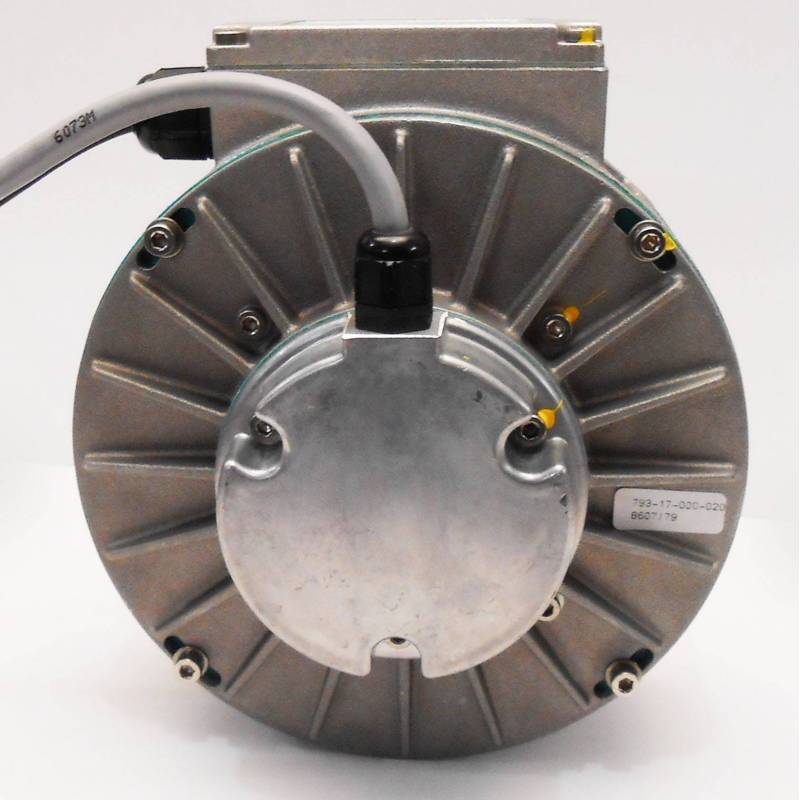

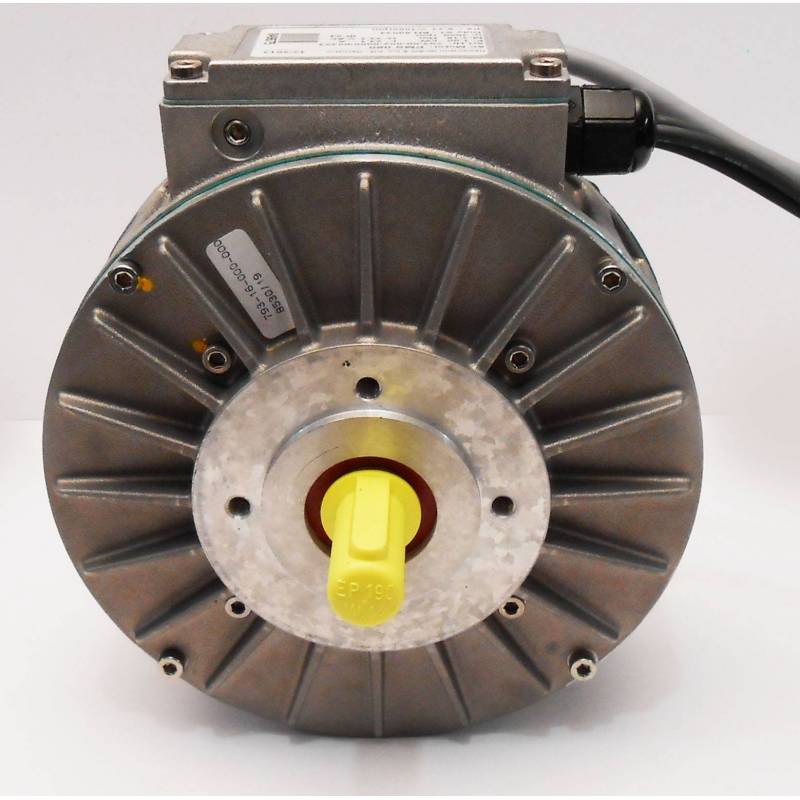

Heinzmann motor, PMS 080 24 VDC

Display all pictures

Heinzmann motor, PMS 080 24 VDC

Reference:

Condition: New product

1 918,73 € Tax excluded

Livraison : 1 à 3 semaines

Heinzmann PMS080 motor
AC Synchronous Disc Motor Force Air Ventilated
Battery voltage 24VDC

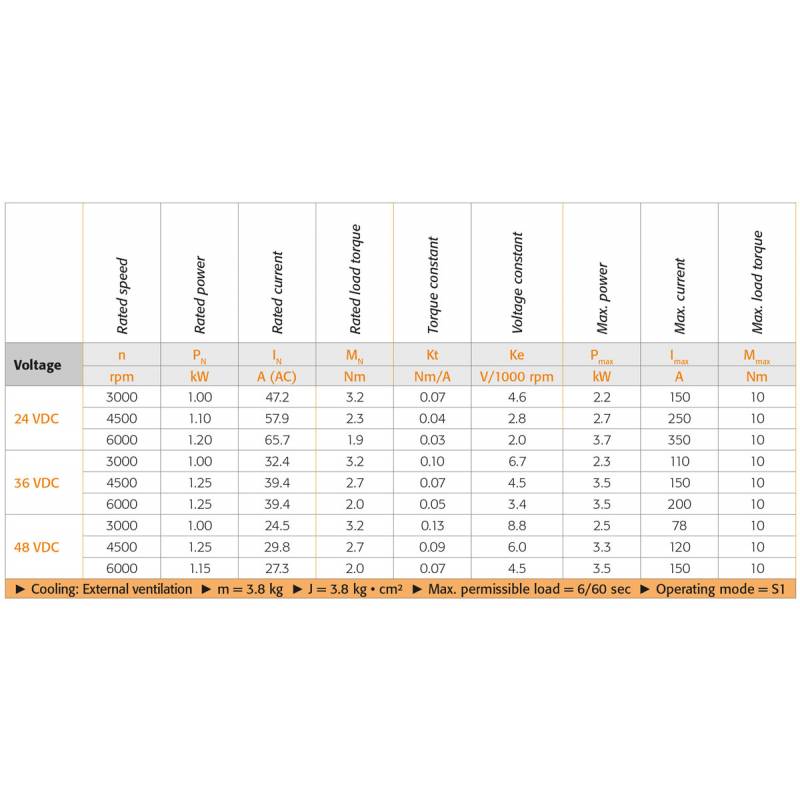

Available in 3 versions :

Rated power: 1 kW
Rated speed : 3000tr/min
RMS current : 47Arms
Rated torque : 3,2Nm

Rated power: 1,1 kW
Rated speed : 4500tr/min
RMS current : 57Arms
Rated torque : 2,3Nm

Rated power: 1,2 kW
Rated speed : 6000tr/min
RMS current : 66Arms
Rated torque : 1,9Nm

Send to a friend
Send to a friend
Heinzmann motor, PMS 080 24 VDC
Heinzmann PMS080 motor
AC Synchronous Disc Motor Force Air Ventilated
Battery voltage 24VDC
Available in 3 versions :
Rated power: 1 kW
Rated speed : 3000tr/min
RMS current : 47Arms
Rated torque : 3,2Nm
Rated power: 1,1 kW
Rated speed : 4500tr/min
RMS current : 57Arms
Rated torque : 2,3Nm
Rated power: 1,2 kW
Rated speed : 6000tr/min
RMS current : 66Arms
Rated torque : 1,9Nm
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

The brushless synchronous motors with up to 25 kW of power are superior to standard electric motors in some ways . because of their flat design, small size and low weight, the robust motors have proven their effectiveness during a huge range of applications for many years . Unlike the PMS F series, the quality version of PMS motors is provided with two stators. With only a rather greater length, the double-sided design delivers more torque and better power while simultaneously having lower inertia.

Powerful brushless synchronous motors with patented rotor technology. The series with double-sided stators deliver excellent performance data and significant efficiency gains. For applications where limited installation space may be a major problem. Small size and high performance make these efficient drives perfect to be used in machine and equipment manufacture and within the traction sector.

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

22 Teeth HTD8 Taper Lock Steel Pulley 20mm...

0 Review(s)

23,62 € Tax excluded

Livraison : 3 à 6 semaines

HTD 8M-20 Timing...

22 Teeth HTD8 Taper Lock Steel Pulley 30mm...

0 Review(s)

21,28 € Tax excluded

Livraison : 3 à 6 semaines

HTD 8M-30 Timing...

1008 Metric Taperlock Bush - 14 mm shaft

0 Review(s)

6,46 € Tax excluded

Livraison : 3 à 6 semaines

1008 Metric Taperlock...

1108 Metric Taperlock Bush - 14 mm shaft

0 Review(s)

9,81 € Tax excluded

Livraison : 3 à 6 semaines

1108 Metric Taperlock...

Heinzmann-motor-p22

Dimensions of PMS080, PMS100, PMS120 and PMS150 motors

Download (1.09M)

Heinzmann-disc-motors

Heinzmann disc motors Product Catalogue

Download (3.18M)

Heinzmann-Standard-Motors-Flyer

Heinzmann brushless synchronous disc-type motors overview

Download (600.9k)

PMS080-Drawing

Dimensions of the synchronous motor PMS 080

Download (231.08k)

PMS080-48VDC-3000tr-min

Plot of of the synchronous motor PMS 080 under 48 VDC

Download (165.71k)

Heinzmann-Electric-Drives

Heinzmann Electric Drives Product Catalogue

Download (7.89M)
