ME0907 PMSM brushless motor
Previous Next

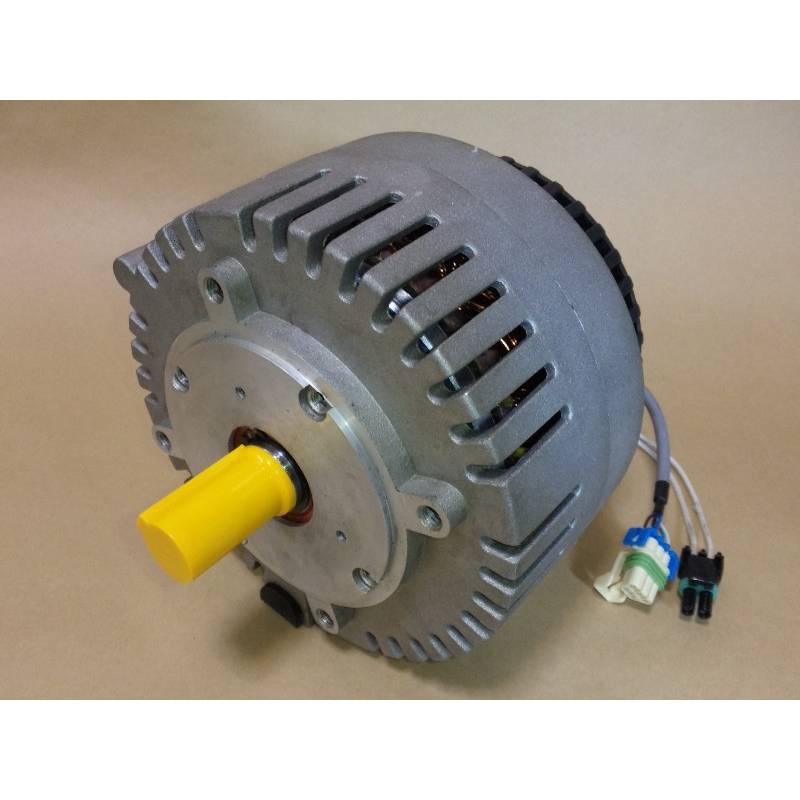

Motenergy motor, ME0907 Brushless, Air-Cooled

130-001

New product

615,60 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME0907 PMSM, air cooling, 24VDC-48VDC, 100Arms continuous, 3,5kW

  • Motenergy ME0907 electric motor
  • No brush maintenance, brushless
  • 3-phases, double stators, Y-connected
  • Permanent Magnet Synchronus Motor
  • Motor efficiency of 90% at 48 VDC.
  • 4 pairs pole motor (8 magnets).
  • Phase to Phase winding resistance is 0,013 Ohms.
  • Phase to Phase winding inductor is 0,10 mH.
  • Maximum recommended rotor speed is 5000 RPM (837,7 rad/s).
  • Controller input voltage 24 à 48 VDC.
  • Torque constant 0.13 Nm/Amp.
  • Armature Inertia 52 Kg/cm²
  • Rated power 3,5kW, peak 8kW (12hp).
  • rated current 100Arms
  • Maximum current 220Arms during 30 sec.
  • Weight 10,5Kg
  • Maximum torque 22Nm.
  • Liquid cooling (fully enclosed).
  • Temperature sensor KTY84-130

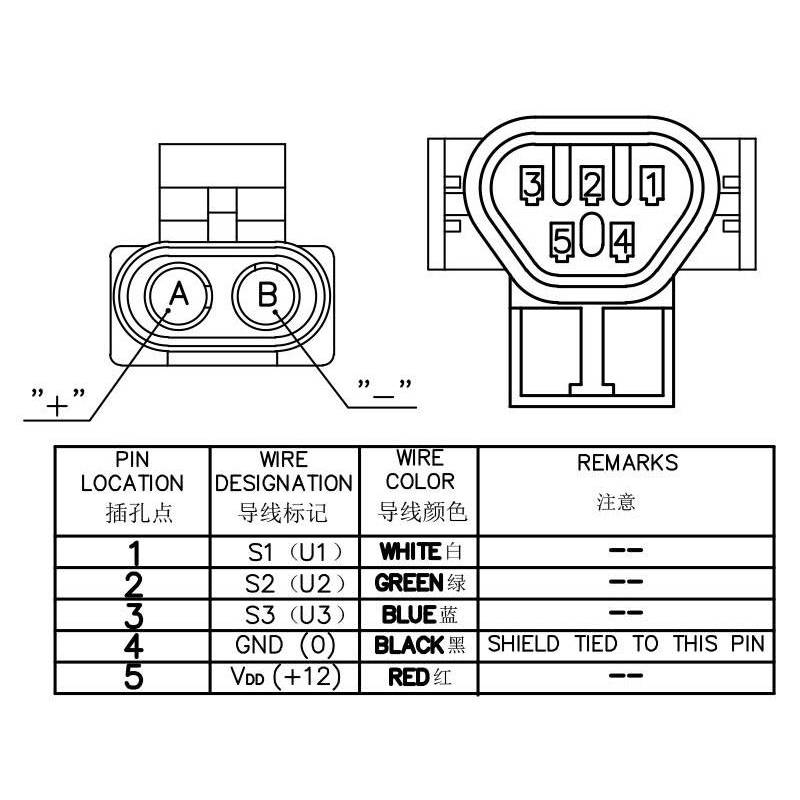

  • Rotor sensor type U/V/W
  • Shaft 7/8"
  • This is a direct replacement for the Mars Electric LLC ME0201013001 Motor.

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

Write a review

Motenergy motor, ME0907 Brushless, Air-Cooled

Motenergy motor, ME0907 Brushless, Air-Cooled

Motenergy ME0907 PMSM, air cooling, 24VDC-48VDC, 100Arms continuous, 3,5kW

MOTENERGY motor 8mm bracket mounting kit
Sale!
Quick view
MOTENERGY motor 8mm bracket mounting kit
0 Review(s)
86,40 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Bracket for MOTENERGY...
Motenergy karting mounting support
Quick view
Karting mounting kit for MOTENERGY motor, ...
0 Review(s)
150,12 € Tax excluded
Livraison : 1 à 3 semaines
Add to cart
Stainless karting...
6 mm steel support for MOTENERGY motors for engine test
Quick view
6mm steel support for MOTENERGY motors
0 Review(s)
56,70 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
6 mm steel support for...
Quick view
Taperlock Bush 7/8 inch shaft
0 Review(s)
9,94 € Tax excluded
Livraison : 1 à 3 semaines
Add to cart
Taper Lock Bush for...
Quick view
Step key 6.35mm x 4.76mm L 30mm
0 Review(s)
7,94 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Shaft step key 6.35 mm...
Steel shaft ring 20.8 mm D30-7/8
Quick view
7/8" steel shaft ring
0 Review(s)
13,82 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Steel shaft ring Ep...
Fan cover for ME0907 PMSM brushless motor
Quick view
Fan cover for ME0907 PMSM brushless motor
0 Review(s)
81,00 € Tax excluded
Livraison : 3 à 6 semaines
Add to cart
Fan cover for ME0907...
Quick view

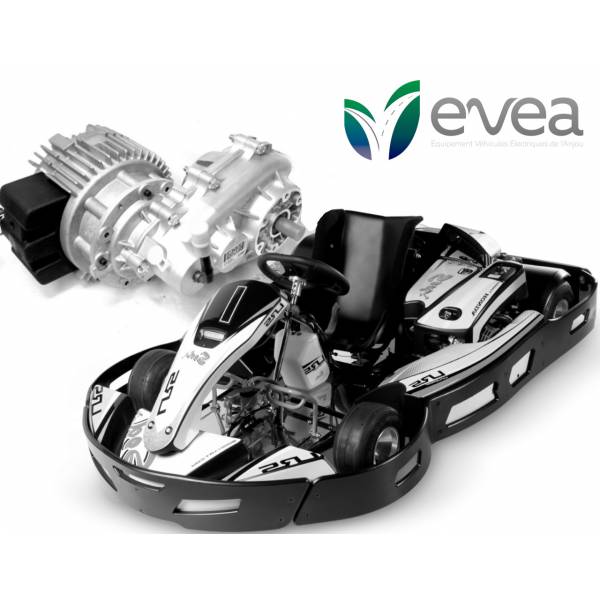

Electrification kit for 48V go-kart ME0907...
