ME1304 PMSM brushless motor

Display all pictures

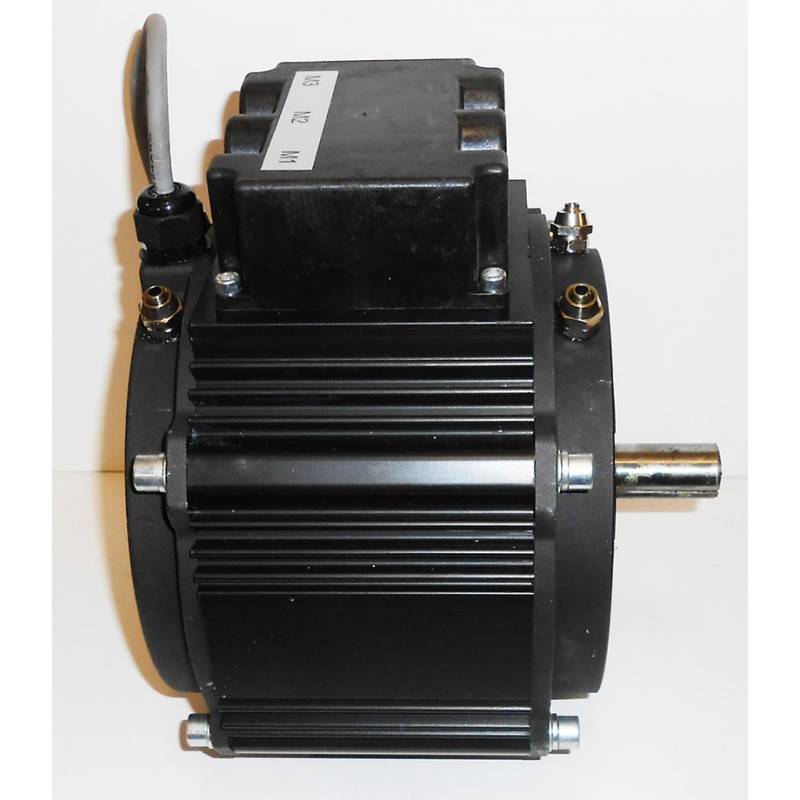

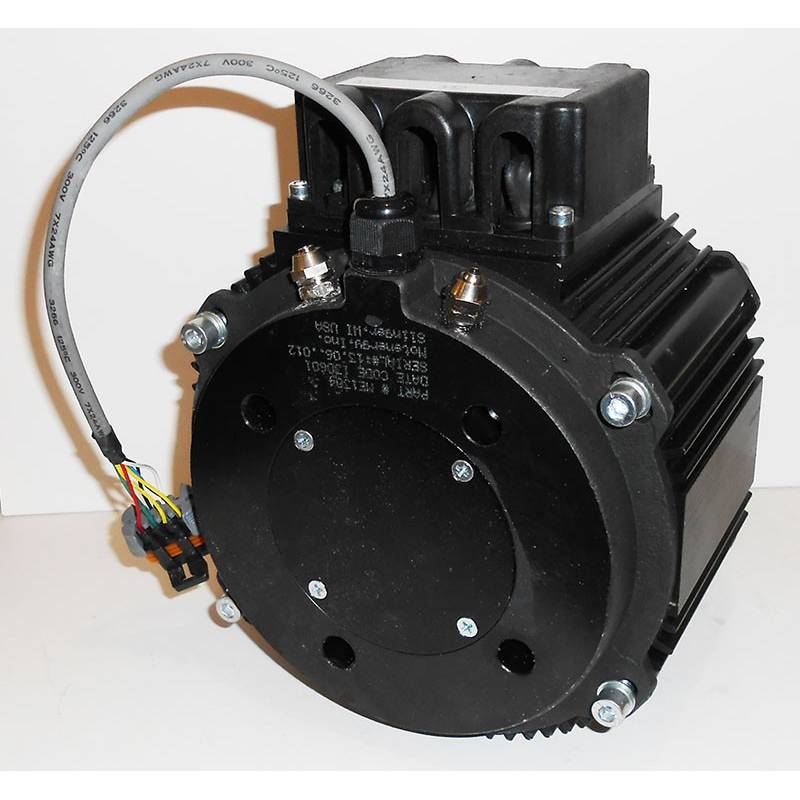

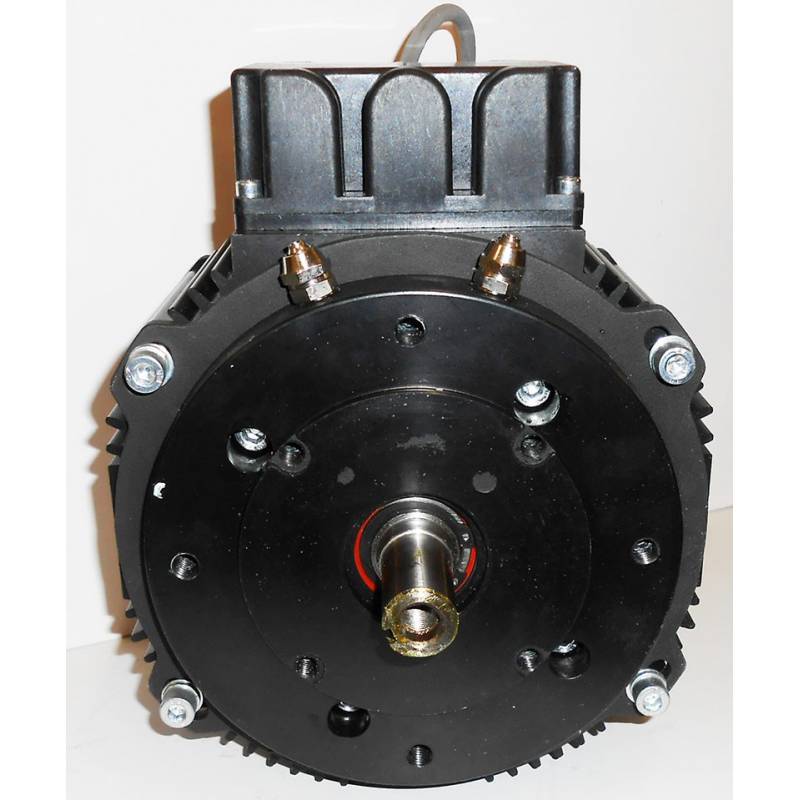

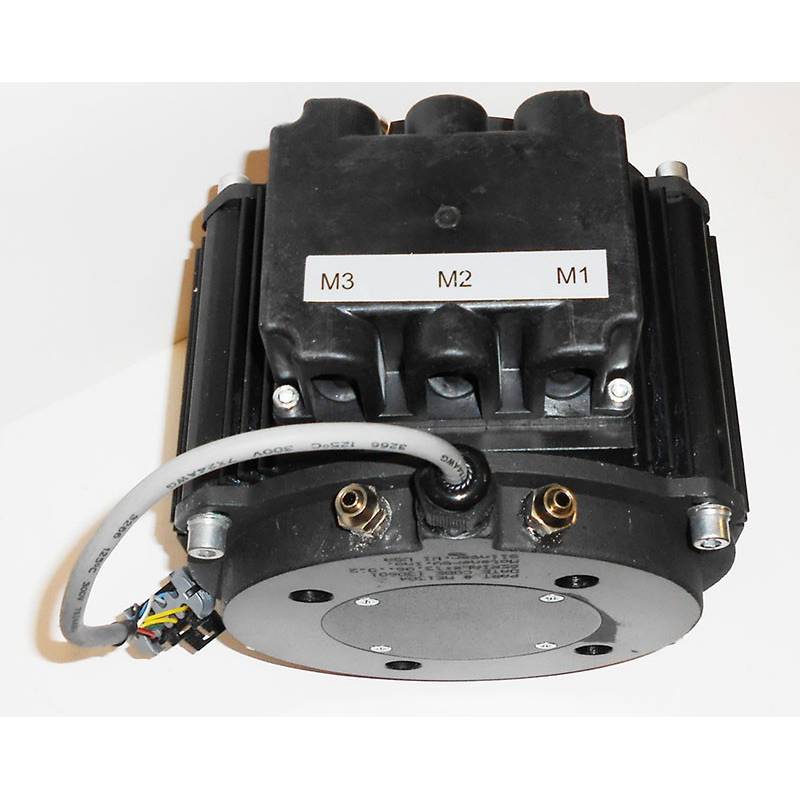

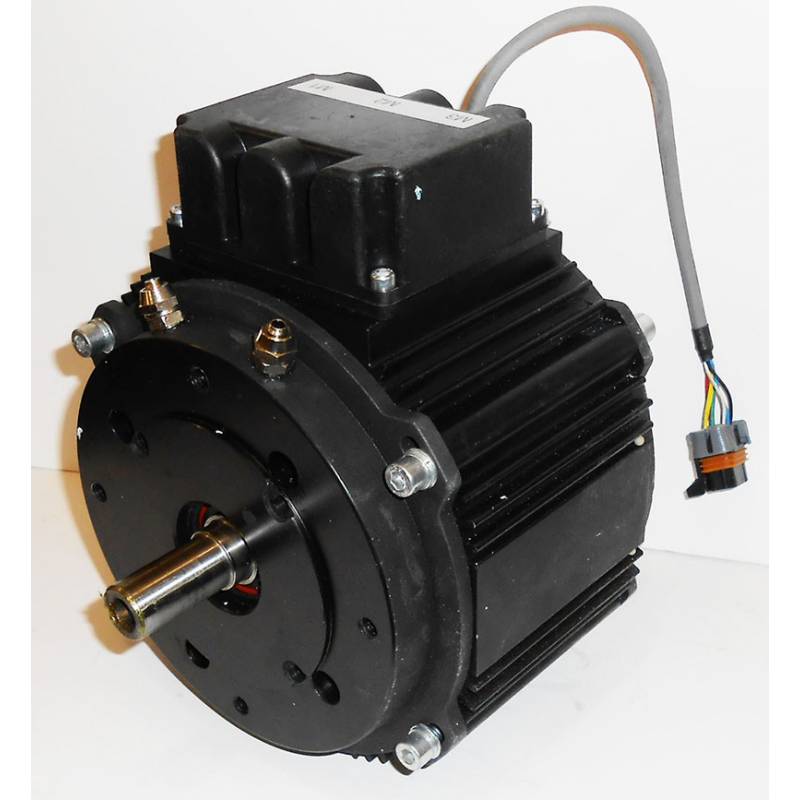

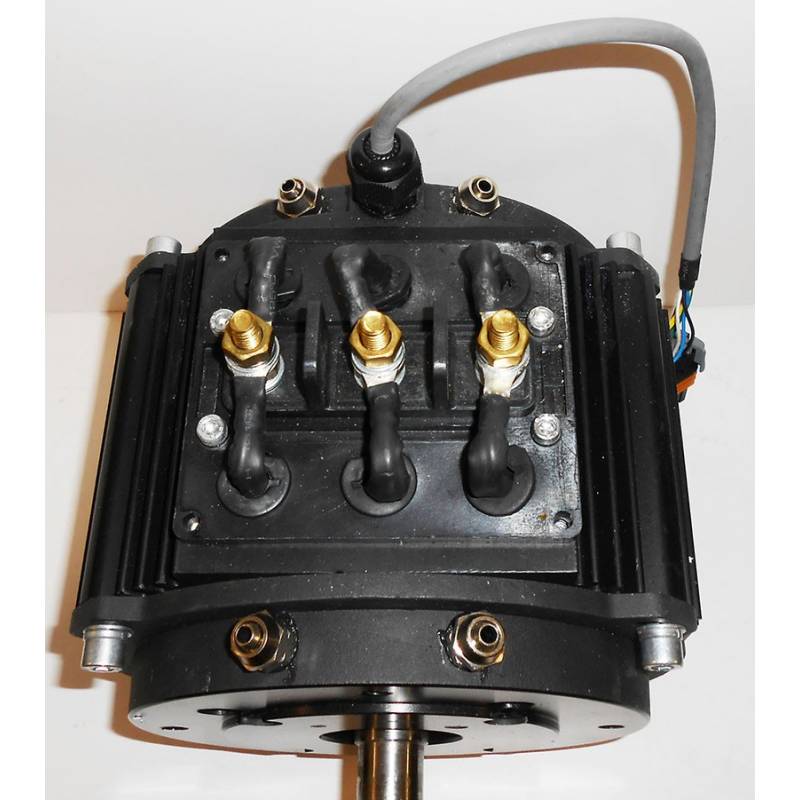

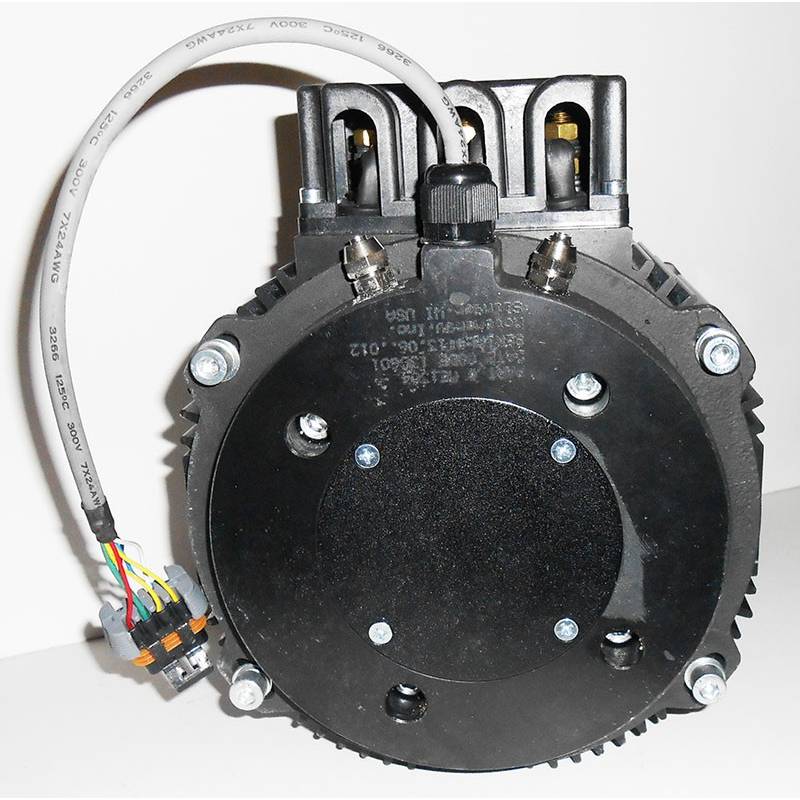

Motenergy motor, ME1304 Brushless, Water-Cooled

Reference: 130-003

Condition: New product

961,20 € Tax excluded

Livraison : 3 à 6 semaines

Motenergy ME1304 PMSM, fully enclosed, water cooling, 24VDC-96VDC, 180Arms continuous, 14,5kW

Send to a friend
Send to a friend

Motenergy motor, ME1304 Brushless, Water-Cooled
Motenergy ME1304 PMSM, fully enclosed, water cooling, 24VDC-96VDC, 180Arms continuous, 14,5kW
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Liquid cooling (water + glycol 50%) version of Motenergy ME1114 motors.

Motenergy ME1304 electric motor
No brush maintenance, brushless
Fully enclosed
3-phases, double stators, Y-connected
Permanent Magnet Synchronus Motor
Motor efficiency of 90% at 72 VDC.
4 pairs pole motor (8 magnets).
Phase to Phase winding resistance is 0,0063 Ohms.
Phase to Phase winding inductor is 0.066 mH.
Maximum recommended rotor speed is 5000 RPM (837,7 rad/s).
Controller input voltage 24 à 96 VDC.
Torque constant 0.12 Nm/Amp.
Armature Inertia 45 Kg/cm²
Rated power 14,5kW, peak 22kW (31hp).
rated current 180Arms
Maximum current 420Arms during 30 sec.
Weight 16Kg
Maximum torque 50Nm.
Liquid cooling (fully enclosed).
Temperature sensor KTY84-130

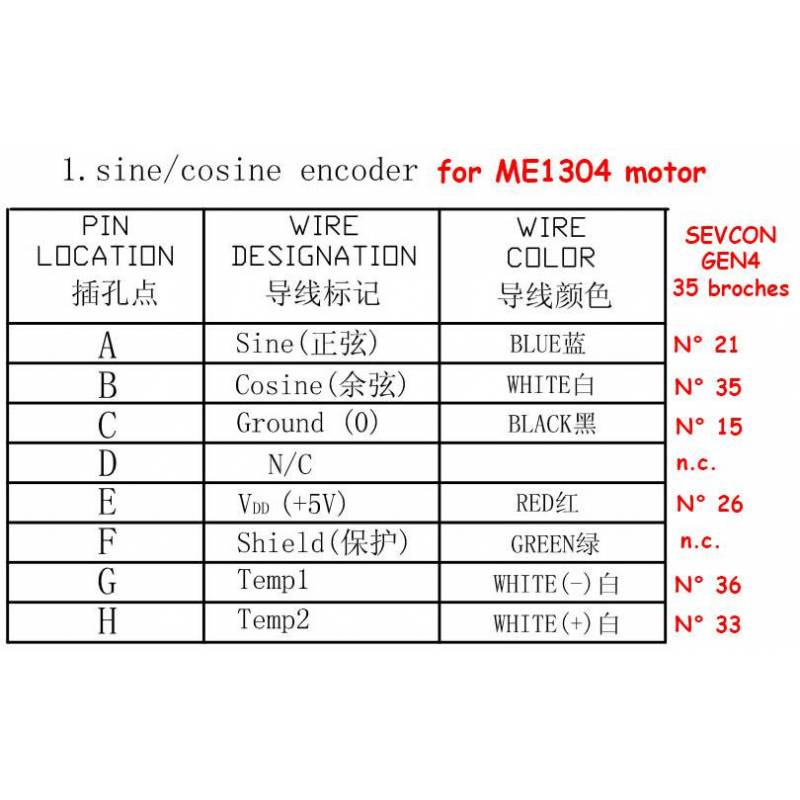

Rotor sensor type Sin/Cos
Shaft 7/8"
Recommended water cooling 10l/min
Water cooling maximum pressure : 1.5 Bar
Hose diameter for liquide cooling : 8mm (standard) or 10mm (upgrade kit ref: )

3D VIEW

Modèle 3D disponible sur demande. / 3D model available on request.

** Si le modèle ne s'affiche pas correctement rendez vous ici : Modèle 3D / If 3D model doens't display normally, go here to see it : 3D Model**

No customer reviews for the moment.

VIDEO

Test bench - ME1304 & BLE2 PW 48V 500A

Test on bench or Motenergy ME1304 brushless motor with ZAPI BLE-2 PW 48V 500Arms controller
