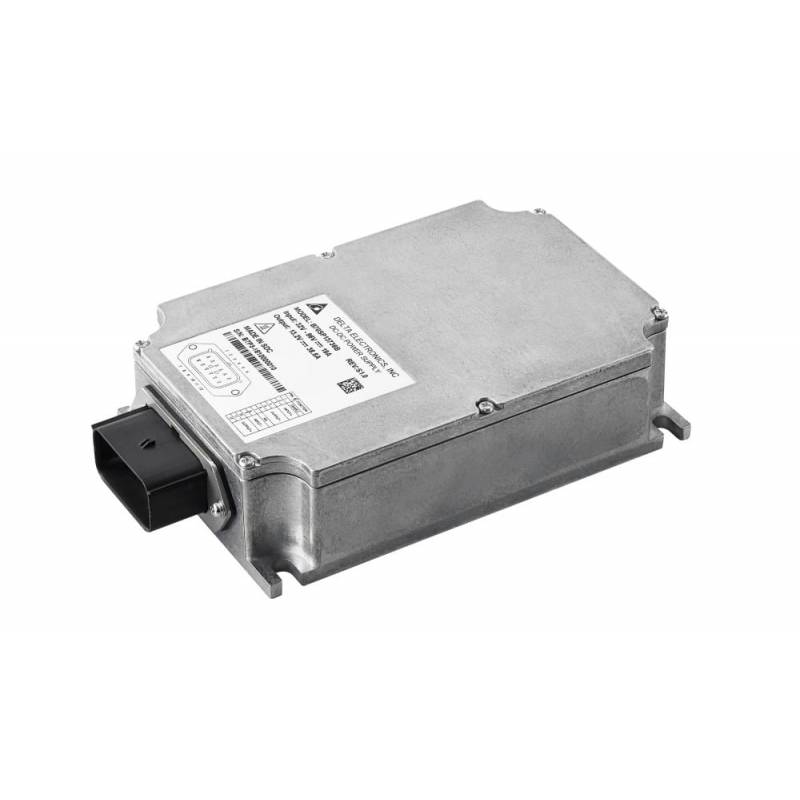

DC-DC converter 72V - 24V 500W
570-019-500-7224
New product
594,00 € Tax excluded
Livraison : 3 à 6 semaines
- Isolated DC-DC converter 72V -->24V
- Input voltage 50V - 90V
- Output voltage 24V
- Output current 20A
- Power 500W
- Efficiency 89%
- Weight 1500 g
- Waterproof IP67

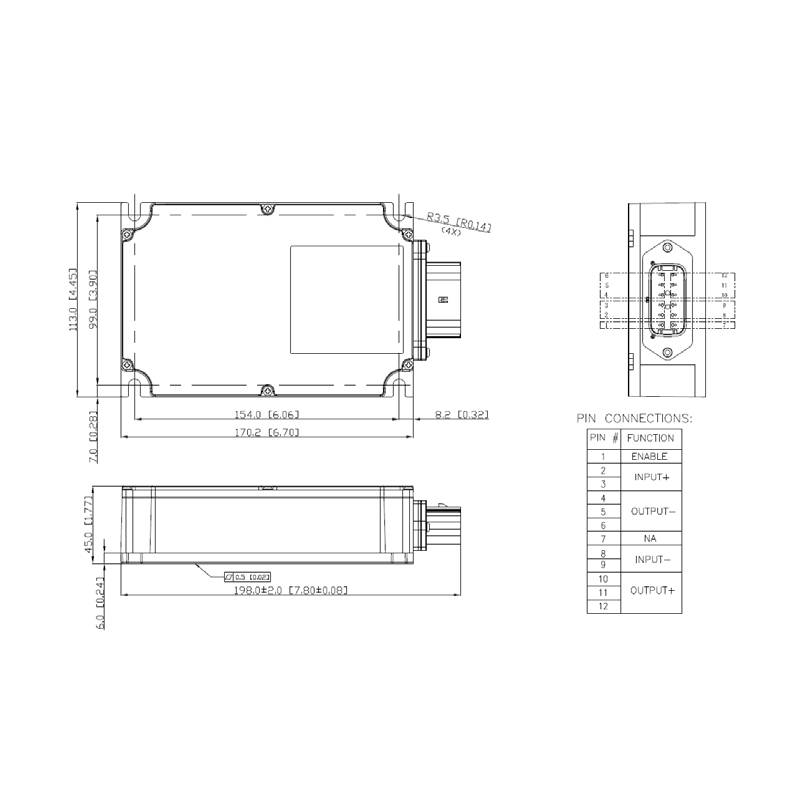

- Dimentions : 199mm x 114mm x 46mm
- Isolation 2kV
- Parallel Connection of multiple units
- Oparate temperature - 40°C to +75°C
- RoHs Compliant, UL60950, CE Mark,
- EMC EN12895 & ISO7637-2
- Option : thermal heatsink, aluminium 20mm
- Option : water cooling heatsink, aluminium
This product is no longer in stock
