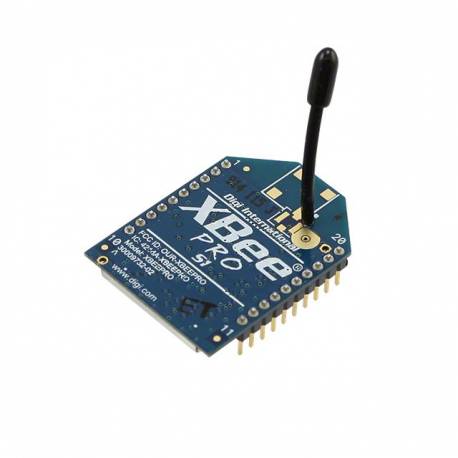

Module XBEE Pro avec antenne

• Module XBEE avec antenne
• Référence XBP24-AWI-001
• Power output 10 mW (+10 dBm) International version
• Indoor/Urban range: Up to 300 ft (90 m)
• Outdoor/RF line-of-sight range: Up to 1 mile (1.6 km) RF LO
• RF data rate: 250 Kbps
• Interface data rate: Up to 115.2 Kbps
• Frequency band: 2.4000 - 2.4835 GHz
• Receiver sensitivity: -100 dBm (all variants)
• Networking topology Point-to-point, point-to-multipoint, & peer-to-peer
• Filtration options: PAN ID, Channel, and 64-bit addresses
• Supports Integrated whip antenna

XBP24-AWI-001 is a XBee-PRO 802.15.4 OEM RF modules with attached wire antenna which are embedded solutions providing wireless end-point connectivity to devices. These modules use the IEEE 802.15.4 networking protocol for fast point-to-multipoint or peer-to-peer networking. They are designed for high-throughput applications requiring low latency and predictable communication timing. These RF Modules were engineered to meet IEEE 802.15.4 standards and support the unique needs of low-cost, low-power wireless sensor networks. The modules require minimal power and provide reliable delivery of data between devices. The modules operate within the ISM 2.4 GHz frequency band and are pin-to-pin compatible with each other. XBee modules are ideal for low-power, low-cost applications. XBee-PRO modules are power-amplified versions of XBee modules for extended-range applications. These modules are easy-to-use, share a common footprint, and are fully interoperable with other XBee products.
